Heavy Duty Double Deflection Grille
Verified by manufacturer 5 months ago
Aluminium supply air grille.
Application
Suitable for wall, duct and ceiling mounting.
Description
Heavy Duty Double Deflection Grille for supply air, with a set of fully adjustable vanes to give directional control of the air pattern in four directions.
Features and benefits:
- Fabricated from extruded aluminium sections, frame 1.6 mm thick, vanes 8 mm thick.
- Hairline mitres mechanically held.
- Optional OBD is of extruded aluminium.
- Size: from 100 x 100 mm to 1200 x 1200 mm in 25 mm increments.
- Free area approximately 80%
General information
Color | Silver |
Finish | Anodized Powder-coated Mill |
Material | Aluminium |
Shape | Square |
Width | Bespoke Guidance for specification option: From 100 x 100 mm to 1200 x 1200 mm in 25 mm increments. |
Height | Bespoke Guidance for specification option: From 100 x 100 mm to 1200 x 1200 mm in 25 mm increments. |
Warranty description | Ten year |
Uniclass | |
CAWS | U90/505 Supply air diffusers |
Product range |
Specification data - Air grilles
Application | Supply. |
Duty | |
Air volume | Guidance for specification option: Insert requirements. |
Size | Guidance for specification option: From 100 x 100 mm to 1200 x 1200 mm in 25 mm increments. Insert requirements. |
Shape | Rectangular.Square. |
Grille type | Adjustable double deflection. |
Position | Ceiling.Floor.Wall. |
Material | Aluminium. |
Finish | Satin anodized.Polyester powder-coated, BS/ RAL.Guidance for specification option: Insert colour requirement. Mill finish. |
Accessories | None.Damper. |
Core | Fixed core. Removable core. |
Orientation | Horizontal front vanes. Vertical front vanes. |
Fixings | Flange holes. Neck fixings. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | The global Recycling Efficiency Rate (RER) of aluminium is currently 76% |
Literature

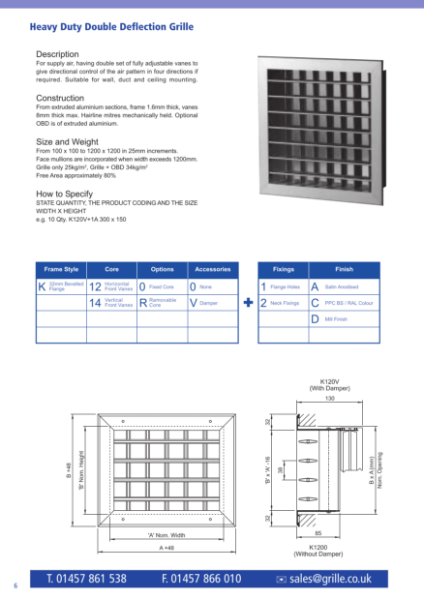

Heavy Duty Double Deflection Grille
