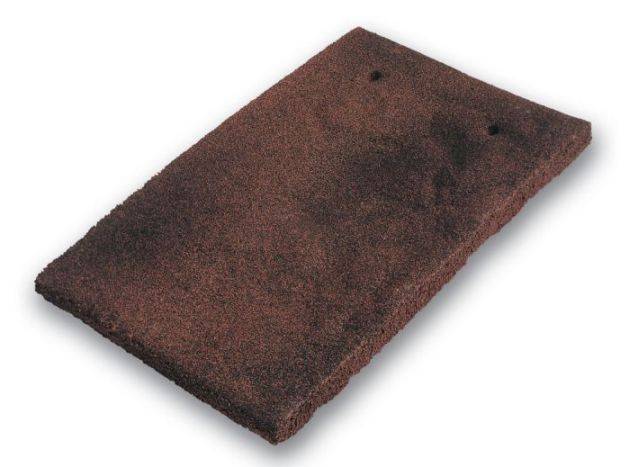

Heathland Plain Tile
Description

Concrete tile with variation in hanging length, irregular sides and a subtle surface texturing, finished with randomly applied fine sands, creating all the visual features of a handmade clay tile. It combines natural weathered character with the performance of a machine-made tile in an attractive and cost-effective roofing product.

Batten size:

38 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: <90°: 65 mm; 90°: 35 mm.
  • Maximum: 88 mm.

Features:

  • Concrete tile with randomly applied fine sand coating.
  • Varying hanging length.
  • Offers practical and economic alternative to handmade clay tiles.

General information
Features

Concrete tile with randomly applied fine sand coating

Varying hanging length

Offers practical and economic alternative to handmade clay tiles

Size

263 x 165 mm

Uniclass 2015
Pr_25_93_72_18 Concrete plain tilesPrimary
Specification data - Concrete plain tiles
Product Reference

Heathland Plain Tile - 6661

Colour

Autumn (23)

Sanded finish.

Ember (25)

Sanded finish.

Elizabethan (26)

Sanded finish.

Manor house mix (20)

Granular finish.

Wealden red (22)

Sanded finish.

Standard product features

Size.

263 x 165 mm.

Pitch:

35–90°.

Gauge:

  • Minimum: 88 mm.
  • Maximum: <90°: 100 mm; 90°: 115 mm.

Linear cover:

165 mm.

Covering capacity:

<90°: 60 tiles/m²; 90°: 52 tiles/m².

Weight (at maximum gauge):

<90°: 75 kg/m²; 90°: 65 kg/m².
