HeartFelt® Origami Weave Ceilings

Name: HeartFelt® Origami Weave Ceilings
Brand: Hunter Douglas Architectural
SKU: bjmdxn144qmeGR9Xz5Z3Qm

Verified by manufacturer today

Weave 3 With 3 Stripes of 200 mm Width.

Hunter Douglas Architectural

Product certifications:

Cradle to Cradle Certified
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

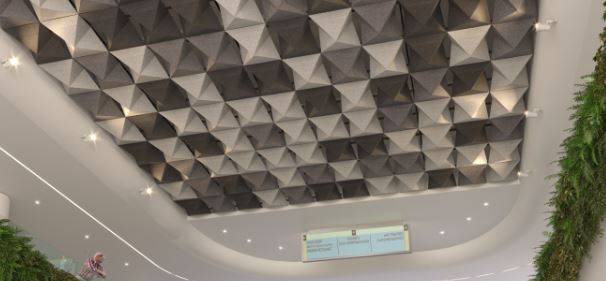

Modular ceiling system with origami-style woven felt panels

Jump to:

+44 (0)1604 648229 Website

Application

Suitable for most building sectors:

Corporate.
Retail.
Leisure.
Public space.
Hospitality.
Healthcare.
Education.
Residential.

Description

The Origami Weave shape allows you to create a contemporary ceiling with playful dynamics. Available in four diverse variants, the Weave options vary in the number of stripes, ranging from 3 to 6 per tile.

Features and benefits:

Outstanding acoustic performance
All variants available in the size of 600 x 600 mm
5 shades of grey and 5 earth tones
Recyclable or easily reusable
Easy to maintain: dirt and dust resistant

General information

Color	Black Bronze Cream Grey White
Material	Felt
Shape	Rectangle Square
Length	900 mm 600 mm 400 mm
Width	600 mm 400 mm

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary Ss_30_25_22_01 Acoustic baffle suspended ceiling systems
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings

Specification data - Modular suspended ceiling systems

Ceiling support	Metal suspended ceiling hangers. Guidance for specification option: Consult manufacturer for details. Splices may be required dependent on overall dimensions.
Support fasteners	Manufacturer's standard.
Ceiling units	HeartFelt® Origami felt panels. Guidance for specification option: Non-woven thermoformed PES fibres. Consult manufacturer for shapes available.

Dimensions	600 x 600 mm.
Colour	White 9593. Light grey 7596. Middle grey 7597. Dark grey 7598. Black 7594. Creme 7575. Light brown 7576. Medium brown 7577. Dark brown 7578. Umber 7579. Show more Manufacturer guidance Colours can be combined for differing visual effects; select multiple options if required. Consult manufacturer for light reflectance values.
Module	M600. Guidance for specification option: Joint: closed.
Standards	To ISO 14001, EN 16798-1, EN 13501-1, EN 13964.
Third-party certification	Cradle to Cradle Certified™ Bronze, FSC Certified, suitable for BREEAM and Leed, Indoor Air Comfort Gold, French VOC-regulation class A+, Oeko-tex Standard 100 klasse IV, SundaHus Miljödata klasse A, GreenGuard Gold.
Fire classification	B-s1,d0 (to EN 13501-1).
Acoustic performance	Aw: 0.7, Class C.
VOC emissions	Class A+, M1.
ExposureClass	Class A and B (to EN 13964).
Weight	2.6 kg/m².
Design	Weave 3 with three stripes of 200 mm width.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Netherlands
Material	Felt
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance 0% (felt)/ up to 86% (suspension).
