HeartFelt® Groove - Acoustic Ceiling System

Name: HeartFelt® Groove - Acoustic Ceiling System
Brand: Hunter Douglas Architectural
SKU: e7WKuhHXWZE8kaP5TrQQcq

Verified by manufacturer 2 days ago

Hunter Douglas Architectural

Product certifications:

Cradle to Cradle Certified
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

Modular ceiling system featuring W-shaped acoustic panels.

Jump to:

+44 (0)1604 648229 Website

Application

Suitable for use internally in acoustic suspended ceiling applications.

Description

HeartFelt® Groove is a box-shaped panel with a width of 60 mm and a height of 50 mm and characterized by a special W-form. Installed with a modules of 80 mm, it creates a gap of 20 mm between panels. This feature delivers a visual end result of a ceiling system with very slim lamellas, each 20 mm wide, and each with an optical distance of 20 mm.

Features and benefits:

Outstanding acoustic performance.
Optically a ceiling with slim lamellas, 20 mm wide.
Easy installation and low risk for damages.
Recyclable or easily reusable.
Easy to maintain: dirt and dust resistant.
Cradle to Cradle Certified Bronze.

General information

Color	White Grey Black Cream Beige Brown Show more
Finish	Other
Material	Felt Aluminium
Shape	Rectangle
Length	1500 mm Guidance for specification option: Maximum individual carrier span. Bespoke
Width	1200 mm Guidance for specification option: Maximum individual panel span. Bespoke

Uniclass	Ss_25_25_75_05 Acoustic panel lining systemsPrimary
CAWS	K40/135 Board-suspended ceiling system K13/170 Acoustic panel lining K40/115 Unit/ modular suspended ceiling system K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

Classification data
Panelling	-
Type	HeartFelt® Groove panel 60HG50. Guidance for specification option: W-shaped profile. Profile gives visual dimensions of 20 mm panels with 20 mm joints.
Surface material	Non-woven, thermoformed polyester (PES) fibres.
Surface finish	Profiled.
Fasteners	Stabilization bracket and quick hanger.
System accessories	Not required. Carrier splice. Panel splice.

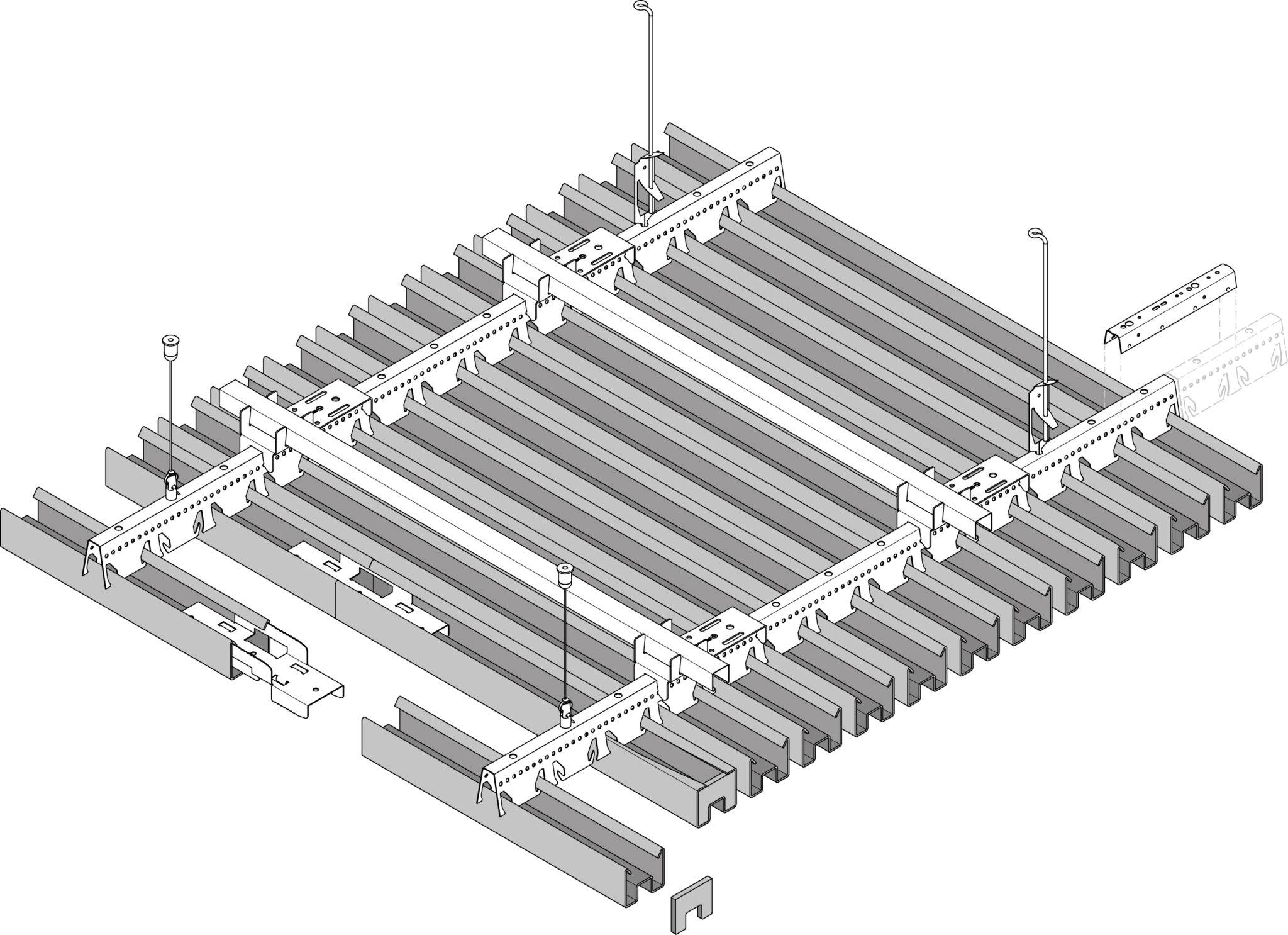

Components	Profile, 60HG50 end cap, carrier, stabilization bracket and profile, quick hanger and wire hanger.
Panel dimensions	60 x 50 mm.
Open space	25%. Manufacturer guidance Openness.
Weight	2.5 kg/m².
Sound absorption coefficient	αw, 0.65.
Joint	20 mm.
Colour	White 7593. Light grey 7596. Middle grey 7597. Dark grey 7598. Black 7594. Creme 7575. Light brown 7576. Medium brown 7577. Dark brown 7578. Umber 7579.
Reaction to fire	To EN 13501-1, B-s1, d0.

Sustainability data

Material	Felt Aluminium
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	9.38 kg CO₂ eq/unit Self-declared Lower emissions
Recycled content As defined in clause 7.8 of BS EN ISO 14021	86 % Guidance for specification option: Suspension material only.
