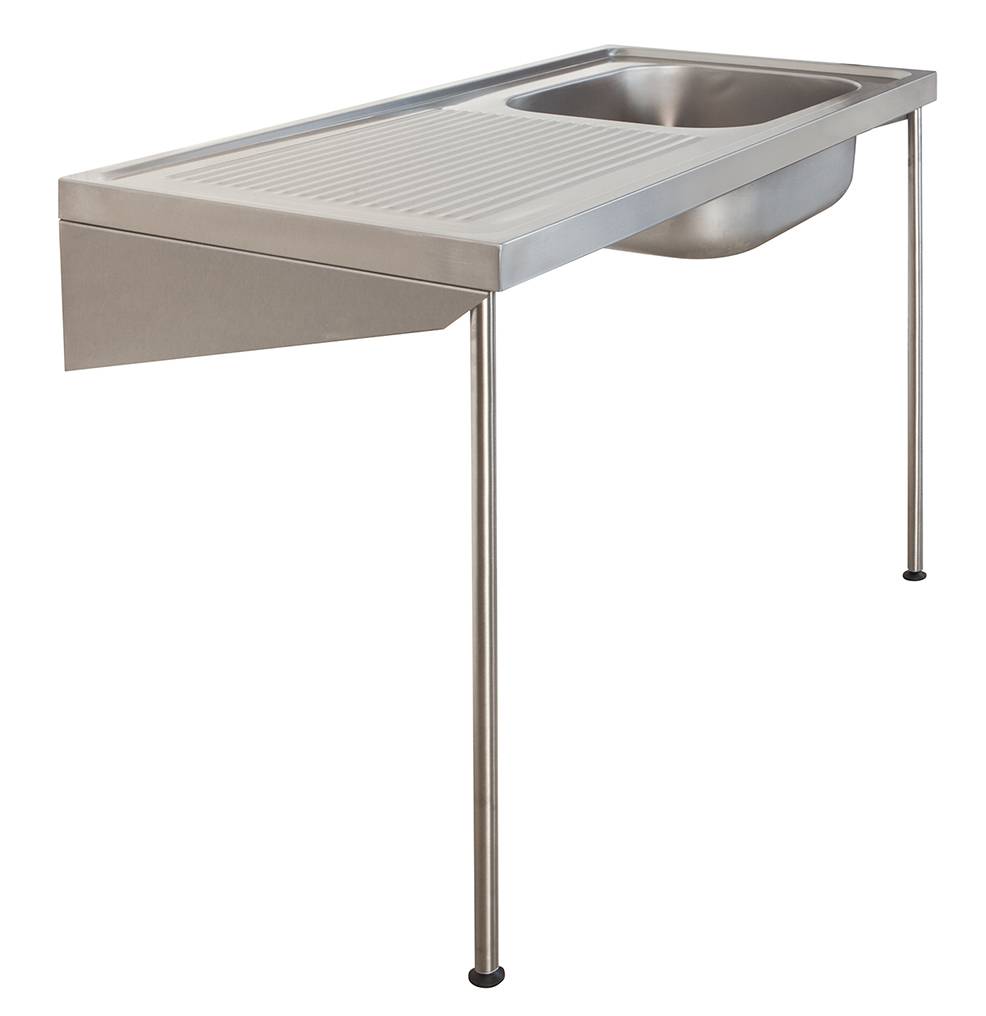

Healthcare Sink Single Bowl Single Drainer
Verified by manufacturer 3 months ago
VPHS12SBLH single bowl, left hand drainer
VPHS12SBLH single bowl, left hand drainer
ISO 9001 Quality Management
Certificate type
Healthcare single bowl/ single drainer sink. Complies with HBN00-10 Part C (previously HTM64).
Application
Hospitals and healthcare.
Description
Healthcare single bowl/ single drainer sink.
Features and benefits:
- Complies with HBN00-10 Part C (previously HTM64).
- No overflow or tap holes, supplied with a 38 mm (1½") BSP flush grated waste fitting.
- Edges are rimmed and turned down all around.
- Wall mounted, supplied with a cantilever bracket as standard with optional front support legs.
General information
Color | Silver |
Material | Stainless steel |
Shape | Square |
Length | 1200 mm |
Width | 600 mm |
Height | 397 mm |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Healthcare domestic service sinks
Standards | Complies with HBN00-10 Part C (previously HTM64). |
Accessories | None.Front leg set.VPPT38 'P' trap.Guidance for specification option: 38 mm (1½"). VPBT38 bottle trap.Guidance for specification option: 38 mm (1½"). |
Dimensions | 1200 x 600 mm. Guidance for specification option: Bowl size: 500 x 400 mm. |
Material | 1.2 mm-thick 1.4301 (304) stainless steel. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
Quality Management System Certificate of Registration
Literature

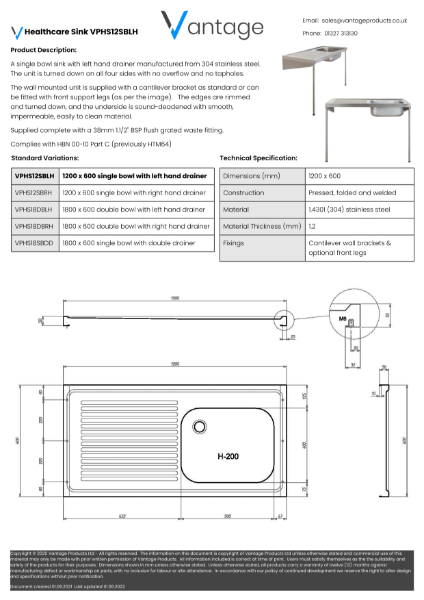

Product Data Sheet - VPHS12SBLH

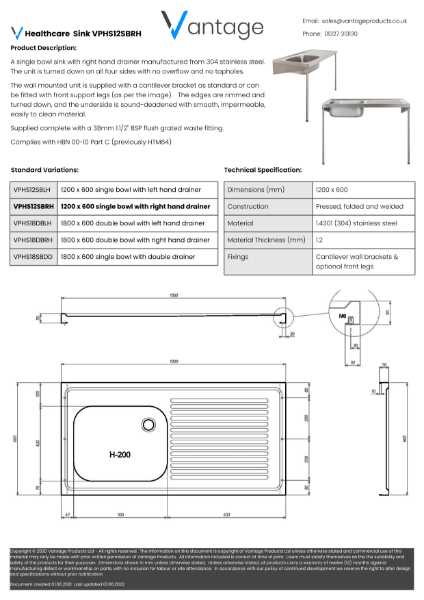

Product Data Sheet - VPHS12SBRH

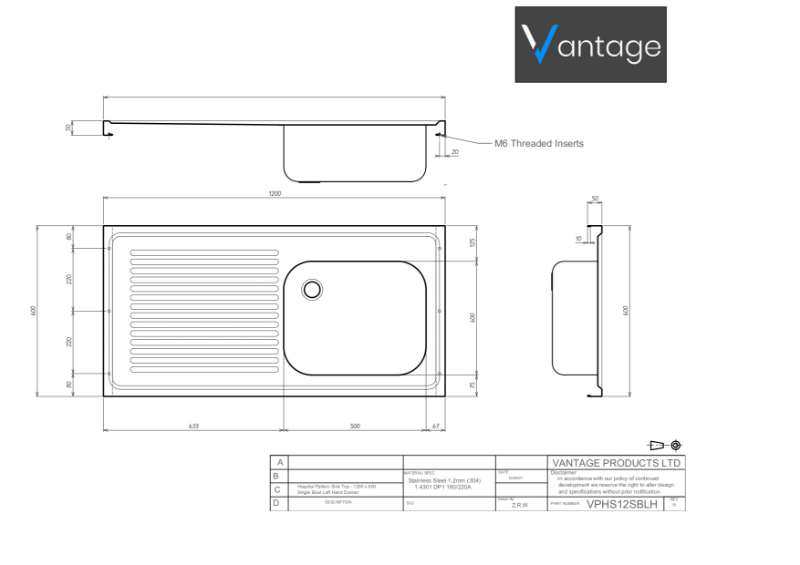

Drawing - VPHS12SBLH

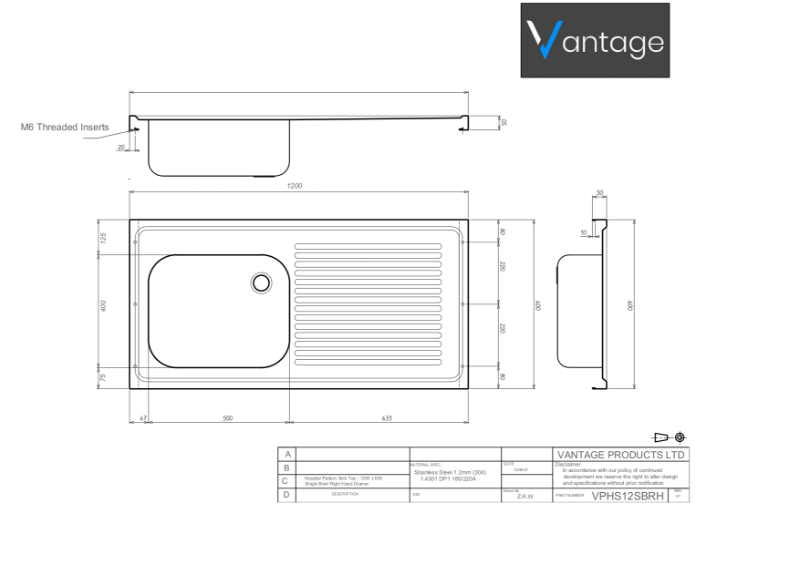

Drawing - VPHS12SBRH
