HE7010 Wireless controlled fan heater

Verified by manufacturer 2 months ago

Consort Claudgen

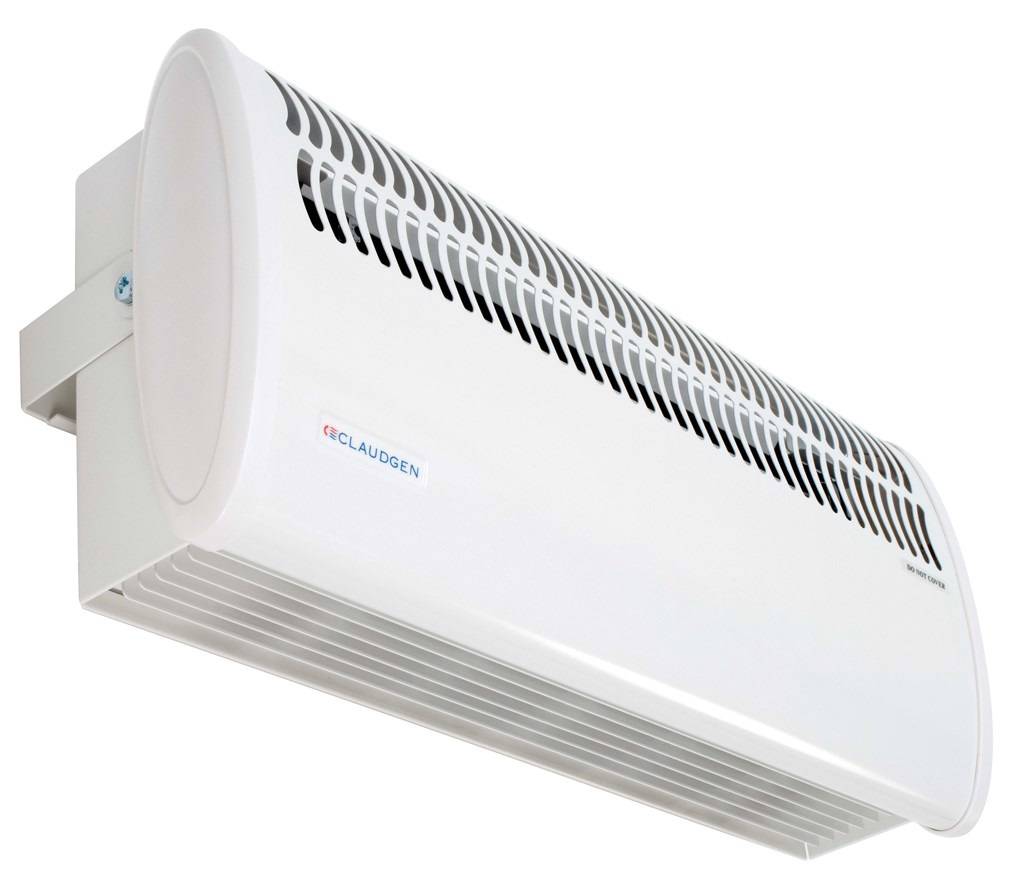

High level fan heater. These heaters are quiet, economical in use and unobtrusive once installed.

Jump to:
BOS
+44 (0)1646 692172 Website

Application

Shops, offices, restaurants or anywhere requiring discreet background heat.

Description

Features and benefits:

  • Compatible with run-back timers and advanced single zone controllers.
  • Run-back timers are compatible with HE7010SL only.
  • Quiet operation.
  • Automatic safety cut-out.
  • Fan only setting for air circulation (for HE7010RX).
  • Wider operating range (for HE7010RX).
  • LED indicator light.
  • Bracket supplied for angular adjustment of heat flow.
  • Finished in white.


Included in object:

  • HE7010RX.
  • HE7010SL.

General information

Color

White

Finish

Coated

Manufacturer guidance

Zinc-coated

Material

Steel

Guidance for specification option:

Zinc coated.

Shape

Rectangle

Length

115 mm

Manufacturer guidance

Depth

Width

485 mm

Height

210 mm

Warranty description

One year

Guidance for specification option:

All products have a one year warranty which is backed by our nationwide customer care service, offering full spares and field support.

Uniclass

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

V90/590 Equipment

Specification data - Room heaters

Room heaters type

Fan.

Output

3 KW.

Finish

Zinc coated and finished in white.

AcousticRating

44 dBA.

Controller

Compatible with advanced single zone controllers - CRXSL, SLTI & LC controllers.

Manufacturer guidance

Options.

MountingType

Bracket for angular adjustment of heat flow.

Safety features

Automatic safety cut-out.

Weight

4 kg.

Dimensions

485 x 210 x 115 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Zinc coated.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

This product can be recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Guidance for specification option:

Percentage value will vary depending on what products are made and recycle materials available for use.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

3

IFC
-

3

Literature

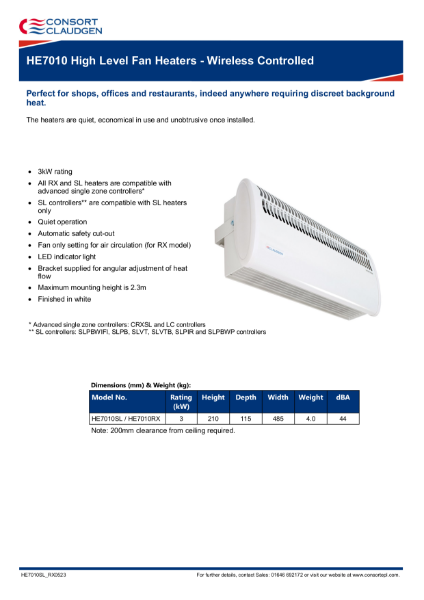

HE7010 data sheet

HE7010 data sheet

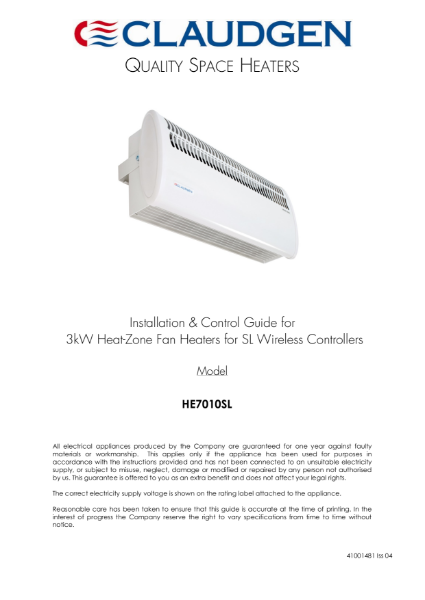

HE7010SL user instructions

HE7010SL user instructions

HE7010RX user instructions

HE7010RX user instructions
