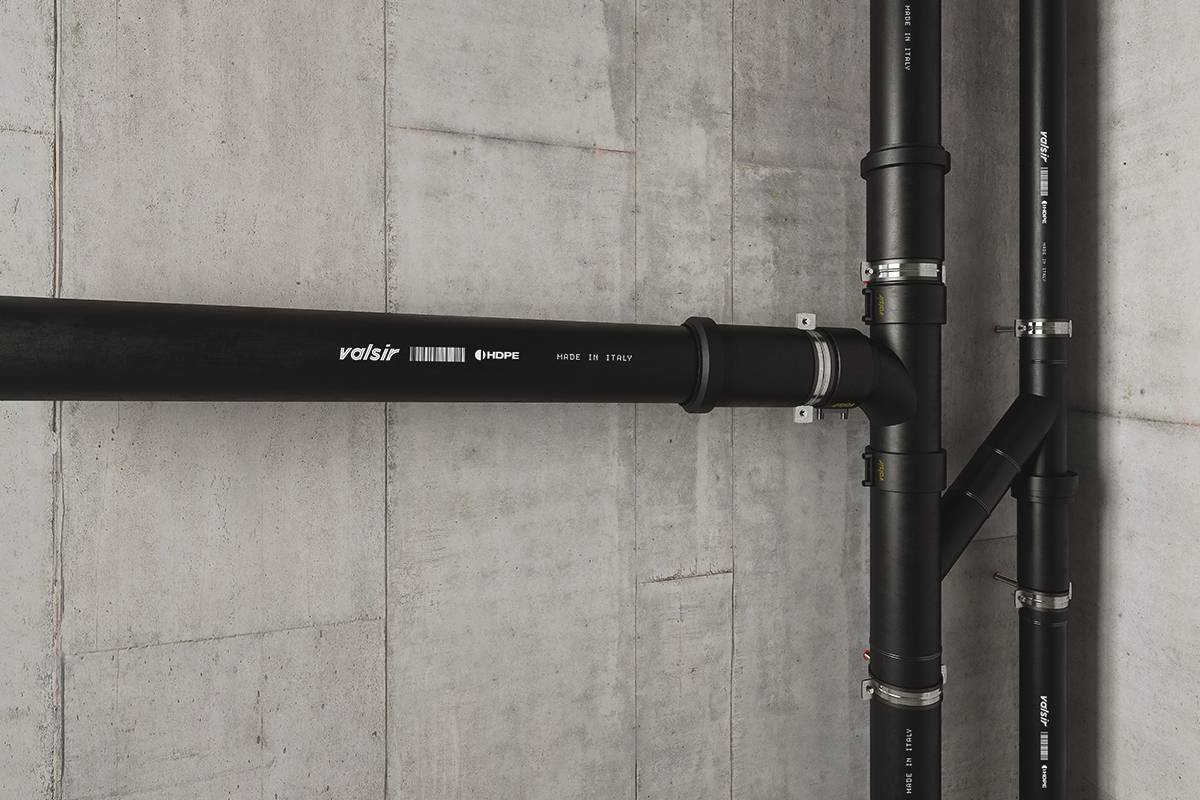

HDPE - Drainage System
Verified by manufacturer 3 days ago
EPD
Certificate type
High-resistance fusion weld drainage system for BD application, 20 dB(A) at 2 L/s, -40°C/+95°C, SN 4, pH 0–14, UV-stable, Ø32–315 mm. Suitable for civil and industrial wastewater.
Application
- Residential, commercial, and industrial buildings where noise levels must be decreased
- Hospitals, hotels, and schools where noise levels must be decreased
- Commercial and industrial plants with chemically aggressive wastewater (pH 0–14)
- Food processing and laboratory environments
- UV-exposed environments (e.g., outdoor runs)
- Any installation exposed to variable or extreme temperatures
- Embedded into the concrete
Description
Fusion-weld drainage system made of high-density polyethylene (HDPE), designed for civil and industrial wastewater applications. Delivers an acoustic performance of 20 dB(A) at 2 L/s based on layout simulating EN 14366, suitable for installations where moderate noise control, high chemical resistance and UV stability are required.
Features and benefits:
- Pipe diameters: Ø32–315 mm.
- Impact and abrasion resistance, even at low temperatures.
- Suitable for sun-exposed outdoor and indoor installations.
- Single-layer HDPE 80 construction with carbon black.
- Installation type: Butt-welded or electrofusion couplings.
General information
Color | Black |
Finish | Matt |
Material | High density polyethylene (HDPE) |
Shape | Circle |
Length | 3000 mm 5000 mm |
Width | 30 mm 40 mm 50 mm 56 mm 60 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | R10/415 HDPE pipework for internal use R11/345 HDPE pipework |
SKU Code | VS030xxxx |
Specification data - High-density polyethylene (HDPE) above-ground drainage pipes and fittings
Classification data | |
Standard | To EN 1519-1. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Not applicable. |
Colour | Black. |
Size (nominal) | DN 30. DN 40. DN 50. DN56. DN60. DN 70. DN 90. DN 100. DN 125. DN 150. DN 200. DN 250. DN 300. |
Joint type | Butt-weld. Electrofusion couplings. |
Fire classification | To DIN 4102, Class B2. |
AcousticRating | 20 dB(A) at 2 L/s (simulated EN 14366 layout). |
Temperature resistance | -40°C to +95°C. |
Chemical resistance | pH 0–14. |
Mechanical strength | SN4. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | High density polyethylene (HDPE) |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 2.17 (kg CO₂ eq/kg) Declared unit : 54.25 | |
Recyclability | After the demolition and deconstruction phase, can be incinerated, sent to landfill or recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 50 year |
Product certifications
Product certifications
EPD
HDPE EPD
Literature
Literature type
HDPE Brochure
HDPE Technical Data Sheet
