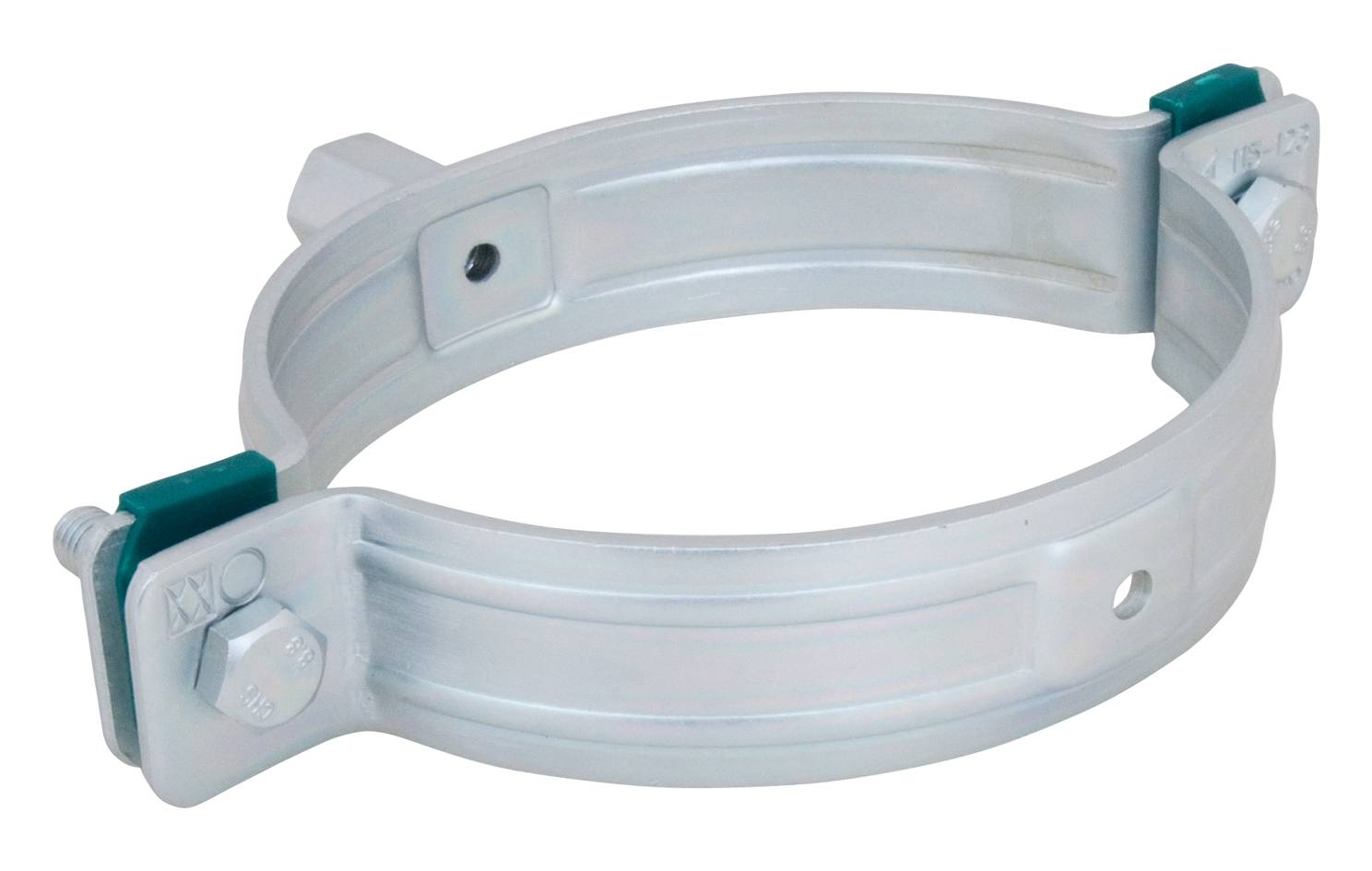

HD500 - Heavy Duty Pipe Clamp Unlined - (M8/10 - M10/12)
Verified by manufacturer 17 days ago
Pipe diameter: 15–19 mm
Pipe diameter: 15–19 mm
Unlined two-part clamp with two locking bolts; for steel pipes (15–227 mm).
Application
For use with steel pipes; 15–227 mm.
Suitable for indoor and outdoor applications.
Description
Unlined two-part clamp with two locking bolts; for steel pipes (15–227 mm).
Features and benefits:
- Up to and including 5": locking nut is captive, hidden in plastic holder.
- Heavy design.
- Bolts secured with anti-loss washer.
- With CO2 welded connection nut.
- Material: steel.
- Surface protection: product is part of the BIS UltraProtect® 1000 system (suitable for indoor and outdoor applications). Stands minimum 1000 hours salt spray test (maximum 5% red rust) according to ISO 9227.
- Tested for fire safety.
General information
Finish | Guidance for specification option: BIS UltraProtect® 1000. |
Material | Steel |
Shape | Circle |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Pipe clips
Clip type | 2100 N. |
Material | Carbon steel. |
Finish: | BIS UltraProtect® 1000. |
Dimensions | 75 x 46 x 30 mm. Guidance for specification option: Height x width x depth. Clamp plate: 2.5 mm thick. Clamp bolts: M8. |
Sustainability data
Country of product manufacture | Czechia |
Literature
BIS UltraProtect® 1000 Leaflet
RAL Certified Products Data Sheet
RAL-GZ-655 Brochure
RAL-GZ-656 Brochure
Case studies
Case study - heavy duty pipe supports
