HD1013 Hush System 2003 Plus Acoustic Floor Solution - Acoustic Floor and Ceiling System

Name: HD1013 Hush System 2003 Plus Acoustic Floor Solution - Acoustic Floor and Ceiling System
Brand: Hush Acoustics
SKU: 9WqyRjmpS1mdM9XNCE1uZK

Verified by manufacturer today

Hush Acoustics

Acoustic separating floor system for use with timber joisted floors.

Jump to:

Request BIM

+44 (0)114 551 8683 Website

Application

Sound reduction system suitable for use in new build, refurbishment and conversion projects where a timber joisted separating floor structure is in place.

Can be used in numerous types of buildings including:

Houses, apartments and flats
HMOs and purpose-built student accommodation (PBSA)
Hotels, bars and restaurants
Retail stores
Schools, colleges and universities
Offices and commercial environments
Industrial buildings
Hospitals and healthcare buildings

Description

HD1013 Hush System 2003 Plus is a highly effective solution for providing sound insulation for separating floors which feature timber joists in both new build and refurbishment projects.

High performance acoustic materials are combined into a fully tested complete system, which complies with all UK Building Regulations relating to sound reduction - Approved Document E (England and Wales), Part G (Northern Ireland) and Section 5 (Scotland).

Features and benefits:

For use in refurbishment and conversion developments where a joisted structure is in place.
Building Regulations Approved Document E (England & Wales), Technical Handbook Section 5 (Scotland) and Technical Handbook G (Northern Ireland) compliant.

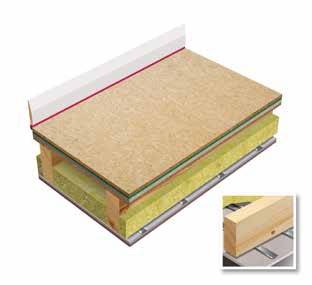

How HD1013 Hush System 2003 Plus is formed:

Hush Panel 28 soundproof floor panels, all of which have tongue and groove joints glued using Hush Bond, are laid over 19 mm plasterboard plank and 18/ 22 mm chipboard deck, with all perimeters sealed using Hush Seal 20.
Hush Slab 100 sound insulation slabs are fitted between joists with Hush Bars screw-fixed to the underside of joists at 600 mm centres.
One layer of 12.5 mm Gyproc Soundbloc plasterboard and one layer of 15 mm Gyproc Fireline plasterboard secured to Hush Bars, with all perimeters sealed prior to skimming.

Acoustic performance*

Impact (L’nT,w) - 55 dB

Airborne (DnT,w) - 55 dB

Airborne (DnT,w + Ctr) - 49 dB

* Results based on 200 mm timber joists at 450 mm centres.

Components:

Hush Panel 28.
Hush Bond – to glue joints.
19 mm thick plasterboard plank – supplied by others.
18/ 22 mm thick particleboard deck – supplied by others.
Hush Seal 20 – to seal perimeters.
Timber joists – supplied by others.
Hush Slab 100 – fitted between the joists.
Hush Bars – screw fixed to the underside of joists at 600 mm centres.
12.5 mm thick Gyproc Soundbloc plasterboard – supplied by others.
15 mm thick Gyproc Fireline plasterboard – supplied by others.

General information

Color	Brown Grey White
Finish	Unfinished
Material	Particleboard Foam Felt Mineral wool Metal
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_30_20_10_50 Joist-supported wood-based rigid sheet floor systemsPrimary
CAWS	K11/275 Acoustic separating floor system

SKU Code	HD1013

Product range	Timber Floor and Ceiling Systems

Specification data - Joist-supported wood-based rigid sheet floor systems

Classification data
Flooring	Hush Panel 28. Guidance for specification option: Description: Floating flooring. Material: 18 mm thick, P5 moisture resistant tongued and grooved particleboard with a 10 mm thick Hushfelt™ resilient layer. Size (w x L): 600 x 2400 mm. Thickness: 28 mm.
Fasteners	Hush Bond. Guidance for specification option: Panel adhesive.
Joint treatment	Hush Bond.
Perimeter seals	Hush Seal 20. Guidance for specification option: Description: Perimeter seal. Material: Compressible solid foam tube. Diameter: 20 mm.
Components	Hush Bar. Guidance for specification option: Description: Metal resilient bars. Size (w x L): 65 x 2400 mm. Depth: 16 mm.
Sound insulation	Hush Slab 100. Guidance for specification option: Description: Sound absorber. Material: Mineral wool. Size (w x L): 600 x 1200 mm. Thickness: 100 mm.
Acoustic performance	Impact (Lntw): 55 dB. Airborne (Dntw): 55 dB. Airborne (Dntw +Ctr): 49 dB.

Sustainability data

Country of material origin	- Manufacturer guidance Varies according to the materials and components used to form the system.
Country of product manufacture	United Kingdom
Material	Particleboard Foam Felt Mineral wool Metal
Recyclability	- Manufacturer guidance Varies according to the materials and components used to form the system.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Varies according to the materials and components used to form the system.
