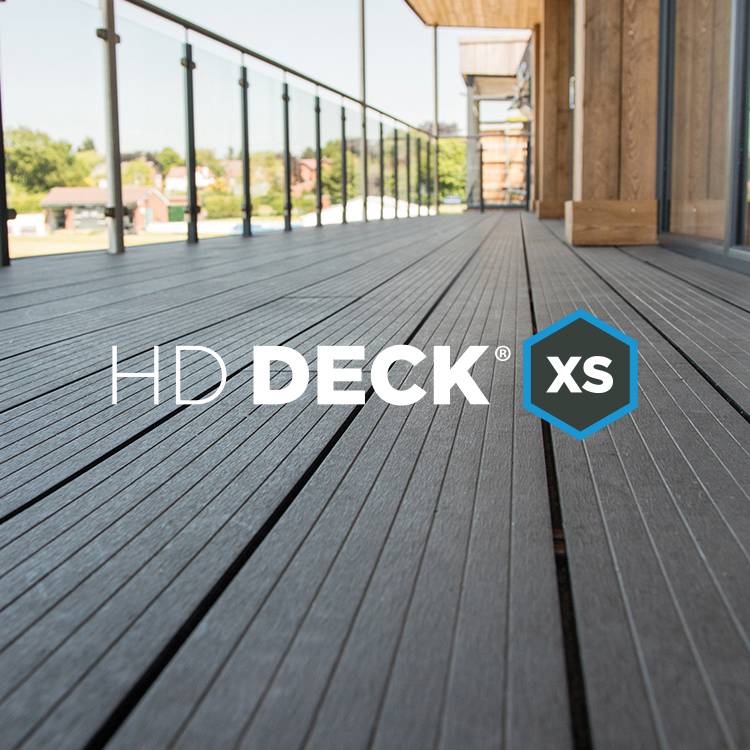

HD Deck XS System

Description

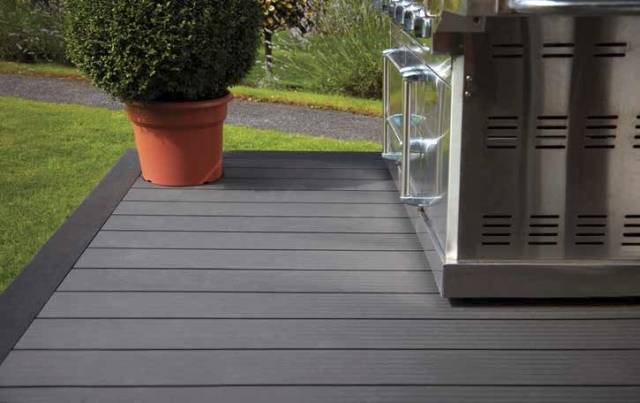

Decking which utilizes wood-plastic composite technology to create an extra strong, low maintenance deck which provides a durable alternative to traditional timber decking. It is constructed from FSC® 100% certified hardwood flour and recycled plastic, which combine to produce a high-quality finished product which outperforms traditional treated timber.

The secret clip system ensures a clean finished install without the need for screws.

Features and benefits:

  • Will not rot or decay.
  • Will not warp, bend or splinter.
  • Requires no staining, treating or painting.
  • FSC® 100% certified timber.
  • Manufactured from recycled plastics - over 280 plastic milk bottles used per m².
  • Barefoot safe.
  • Slip-resistant.
  • Free from hazardous substances.
  • 10-year warranty.

General information

Color

Almond, light oak, cedar, walnut, forest green, silver, lava

Features

Slip resistant, free from hazardous substances, will not rot or decay, will not warp bend or splinter, requires no staining, treating or painting, friendly to the environment

Material

Plastic

Shape

Rectangle

Size

25 x 3600 x 146 mm

WarrantyDescription

Residential - 10 years, commercial - 5 years

Uniclass 2015

Pr_25_71_97_94 Wood-plastics composite deck boardsPrimary

CAWS

Q55/380 Deck boards

Specification data - Wood-plastics composite deck boards

Product Reference

HD Deck® XS System

Colour

Lava

Light oak

Silver

Walnut

Accessories

None

Clip and screw

End cap

Colour to match deck.

Fascia

74 x 11 x 3600 mm (h x w x l); colour to match deck.

Starter clip and screw

Standard product features

Material:

Constructed from FSC® 100% certified hardwood flour and recycled high density polyethylene (HDPE).

Board size (h x w x l):

25 x 146 x 3600 mm.

Density (to BS EN 15534-1 and ISO 1183):

1.285 g/cm³.

Slip resistance:

  • Pendulum wet test (to BS EN 15534-1, CEN/TS 15676 and BS EN 15534-4): Longitudinal: 42/ 44 (minimum/ mean); Horizontal: 40/ 42 (minimum/ mean).
  • Pendulum dry test (to BS EN 15534-1, CEN/TS 15676 and BS EN 15534-4): Longitudinal: 58/ 58 (minimum/ mean); Horizontal: 72/ 73 (minimum/ mean).
  • Slip resistance rating (to DIN 511330): R11.
  • Oil-wet ramp test (to DIN 51130): 19.9°.

Technical characteristics:

  • Bending strength (to BS EN 15534-1 and to BS EN 15534-4): 43.2 MPa.
  • Modulus of elasticity (to BS EN 15534-1 and to BS EN 15534-4): 3.8 GPa.
  • Maximum load (to BS EN 15534-1 and to BS EN 15534-4): 7601 N/ 7940 N (minimum/ mean).
  • Deflection (to BS EN 15534-1 and to BS EN 15534-4): 0.77 mm/ 0.82 mm (mean/ maximum).
  • Tensile strength (to BS EN 15534-1 and to ISO 527-2): 30.8 MPa (mean).
  • Falling mass impact (to BS EN 15534-1 and to BS EN 15534-4): No crack, 0.15 mm maximum residual indentation.
  • Charpy impact strength (to BS EN 15534-1 and ISO 179-1): 8.1 kJ/m² (mean).
  • Fire rating (to BS EN ISO 9239-1 and BS EN ISO 11925-2): Cfl-s1.
  • Water absorption (to BS EN 15534-1 and to BS EN 15534-4): Boiling test (five hours, by weight): 2%/ 2.1% (mean/ maximum); 28 days immersion: 2.8%/ 3.2% (mean/ maximum).

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

 2.1
IFC
 -

1

 2.1
Download now from NBS National BIM Library
