Application

For use in conjunction with HBUS devices.

Description

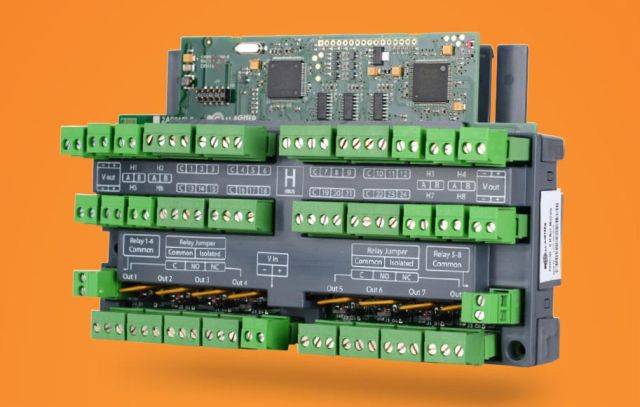

HBUS modules which support star wiring of high speed HBUS devices (including T-Series Readers and the F22 Fence Controller) to a secure Gallagher cabinet. Input/ output (I/ O) connectivity is also provided for door and equipment monitoring.

Features and benefits:

  • Runs at speeds of up to 1 mb/s, meaning a faster response time is achieved (faster than most other RS-485 based communications protocols).
  • Allows HBUS devices to be star-wired back to a secure controller cabinet – this can reduce the risk of a faulty connection taking down all devices.
  • Each port can support multiple HBUS devices.
  • The modules have on-board inputs and outputs that can be used for door monitoring and control, or for general I/ O functions.
  • Monitors and reports the state of balanced inputs, and enforces decisions to switch output relays if required.
  • Four input states are monitored, including: open, closed, short circuit (tamper), open circuit (tamper). These can be used to monitor access controlled doors, intruder detection, monitored doors, equipment alarms, and any other device providing a clean switch contact.
  • On-board relays can be used for access controlled doors, alarm outputs, control outputs and time activated outputs (e.g. to control air conditioning or lighting).
  • All communications between the Gallagher Controller and the connected HBUS device are secured using authentication and encryption techniques, which protects against a range of potential attack methods.
  • Designed to run on all existing Controller 6000s, allowing an easy retrofit of previous expansion modules.
  • Manufactured in accordance with ISO 9001 Quality Systems.

Compliance:

  • ACN 002132943.
  • CE.
  • C-Tick.
  • Federal Communications Commission (FCC).
  • Restriction of Hazardous Substances (RoHS).

Applications:

For use in conjunction with HBUS devices.

General information
Specification data - Field controllers
Product Reference

HBUS 4H Module, C300142

12 inputs, four SPDT relays.

HBUS 8H Module, C300182

24 inputs, eight SPDT relays.

Cabinet

Not required

Dual cabinet, C200104

Single cabinet, C200100

Standard product features

Technical characteristics:

  • Compatibility: Gallagher Command Centre v7.05 (minimum).
  • Voltage: 13.6 V (DC) ± 15%.
  • Current: Via Gallagher Controller 6000 connector: 40 mA; Via HBUS module power in no relays: 30 mA; with four relays: 175 mA; with eight relays: 315 mA.
  • Operating temperature: -10°C to 70°C.
  • Relay circuit rating: 24 V (DC/ AC, 3 A resistive, 1 A inductive).
