HAWA Super 500 M
Door hardware for use with heavy-weight metal sliding doors weighing up to 500 kg.
Suitable for various fire-retarding applications.
Door hardware for use with heavy-weight metal sliding doors weighing up to 500 kg.
Features and benefits:
- Suitable for use with fire doors.
- Simple to install.
- Robust design.
- Includes steel top brackets for bolting.
Components:
Quantities vary depending on component - consult manufacturer for details.
- Three-wheeled trolley, M12, with steel wheels.
- Suspension plate, galvanized steel, with suspension bolt M12, and fixing screw.
- Track stop, galvanized steel.
- Screw-on rubber door stop.
- Guide, 14 mm, with bolt M10.
Applications:
Suitable for various fire-retarding applications.
Uniclass 2015 | |
CAWS | P21/10 Quantities and locations P21/350 Door track and running gear |
Product Reference | HAWA Super 500 M |
Running track | - |
Type | Side-drilledWith top mounting flanges |
Material/ Finish | Stainless steel WNR, grade 1.4301 (304) |
Length | 6000 mmCut to sizeInsert requirements. |
Bottom guide channel | Various configurations available, consult manufacturer's literature and insert requirements. |
Accessories/ Other requirements | Not requiredFloor-mounted guide, plasticHeight can be shortened as required. Spring-loaded mortise-type door stop |

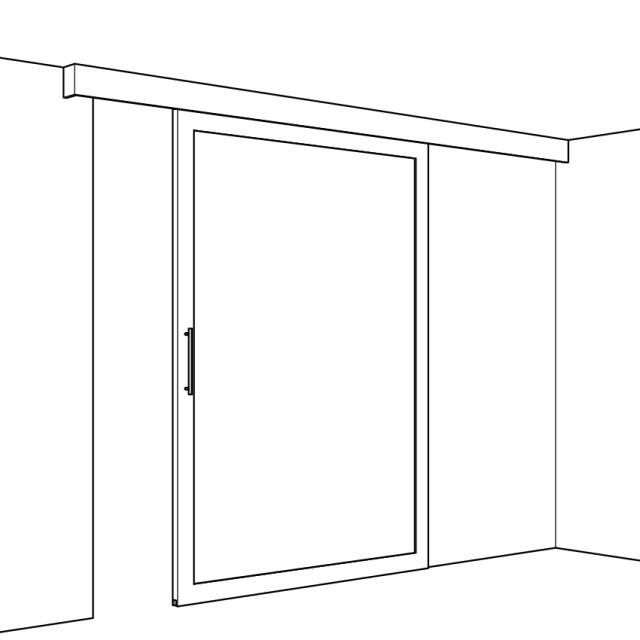

Standard product features | Configuration: Top hung, sliding. |
Product Options | Bottom guide channel: Aluminium, plain anodized, pre-drilled (hole positions vary - consult manufacturer for details). Accessories/ Other requirements: Other accessories and spares are also available, consult manufacturer for details. |
