Hawa Junior 40 GL

Application

Suitable for use in the following areas:

  • Hotels.
  • Restaurants.
  • Conference rooms.
  • Airports.
  • Office buildings.
  • Private residential interior and exterior applications.

Description

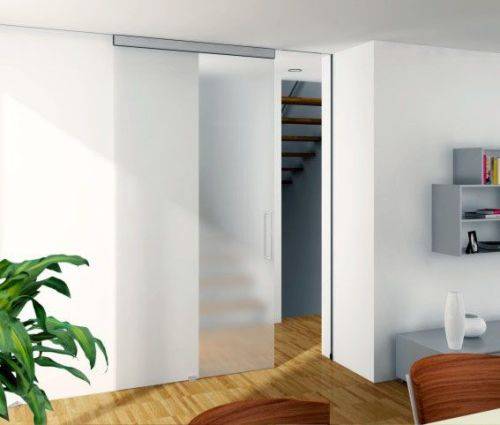

Unobtrusive door hardware for use with all-glass sliding doors weighing up to 40 kg, with a minimum door width of 1200 mm.

Features and benefits:

  • Suitable for unobtrusive, straight-running sliding glass doors in contemporary settings.
  • Cost effective and reliable.
  • The rattle-proof bottom guides ensure quiet running, and keep doors steady in the presence of draughts.
  • Easy to install.
  • Choice of cover profile finish available.
  • Aluminium cover plates for the slim glass retention profile fit easily, using rubber clips.
  • The interlocking glass fixing ensures reliability, even under maximum load.
  • Compatible for use with sliding doors: Fully tempered monolithic glass (of 8, 9.5 or 10 mm thickness), and fixed doors: Fully tempered monolithic/ laminated glass (of 8–12 mm thickness, up to 13 mm with silicone). Further profiles allow fixed glass to be fitted without the hardware being visible.
  • Smooth, quiet operation.
  • Vertical adjustment is possible without removing the glass door.
  • Can be combined with Hawa Toplock and wall joint profile, and Hawa Junior angle profile for wall fixing - consult manufacturer for details.

Components:

Quantities vary depending on component - consult manufacturer for details.

  • Two-wheeled trolley, M8, with plastic wheels.
  • Suspension plate with hanger bolt M8.
  • Track stop, adjustable retaining force.
  • Glass retainer profile 240 mm, aluminium.
  • Cover caps for glass retainer profile, plastic, anthracite-grey RAL 7016, set of two pieces.
  • Fitting set for two glass suspension profiles.
  • Hex key, 4 x 160 mm.
  • Adjustment tool for eccentric glass retainer.
  • Adjustment and fixing key for suspension assembly.

For two-panel sliding doors, order two sets for single doors. Consult manufacturer for further details.

Applications:

Suitable for use in the following areas:

  • Hotels.
  • Restaurants.
  • Conference rooms.
  • Airports.
  • Office buildings.
  • Private residential interior and exterior applications.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Product range

Glass Sliding Doors

Specification data - Door track and running gear

Product Reference

Hawa Junior 40 GL, partial set (25906)

Running track

-

Type

For fixed glass

For sliding glass

Material/ Finish

Aluminium, plain anodized, pre-drilled

Length

See 'Options' and insert requirements.

Closing mechanism

Not required

SoftMove 40

Bottom guide channels

6000 mm

Cut to size

Insert requirements.

Cover profile

Aluminium, plain anodized, brushed

Aluminium, un-anodized

To be finished by the customer.

Stainless steel effect, brushed

Accessories/ Other requirements

Not required

Bottom door stop

Available with dull chromium or stainless steel finish; insert requirement.

Bottom/ wall profile

For fixed glass. Various configurations available, consult manufacturer's literature and insert requirements.

Cover cap for running track

Plastic anthracite grey RAL 7016.

Distance plate for bottom guide

Glass cutouts

Various configurations available, consult manufacturer's literature and insert requirements.

Glass fixing parts for retainer profile

Available for 8, 9.5 and 10 mm glass.

HAWA-Junior

For wall fixing.

Hawa Toplock

Various configurations available, consult manufacturer's literature and insert requirements.

Rattle-proof floor mounted guide with self-adhesive sliders

Available with dull chromium or stainless steel finish; insert requirement. Glass thickness 8–12.7 mm.

Rubber profile

For glass edge protection.

Self-adhesive sliders, 8/ 10 mm

Insert requirement.

Vertical sealing profile

Effective against draughts. Various configurations available, consult manufacturer's literature and insert requirements.

Wall connection profile

For unprotected glass edges. Various configurations available, consult manufacturer's literature and insert requirements.

Standard product features

Configuration:

Top hung, sliding.

Profile height:

65 mm.

Product Options

Running track:

- Length:

Fixed glass:

  • 2000 mm.
  • 6000 mm.
  • Cut to size.

The running track sets come with integrated retainers for fixed glass. The glass element is positioned in the track’s fixed glass retainer. A retainer profile for wall and floor fitting provides sufficient stability, whether flush or mounted. A rubber profile or silicone groove hold the glass in position and prevent humidity seeping between glass and track. The running track set also has a cover profile made of aluminium which clips into and closes the fixed glass retainer in the walk-through area.

Sliding glass:

  • 1400 mm.
  • 1600 mm.
  • 1800 mm.
  • 2000 mm.
  • 2500 mm.
  • 3000 mm.
  • 4000 mm.
  • 6000 mm.
  • Cut to size.

Bottom guide channel:

Aluminium, plain anodized, pre-drilled (hole positions vary - consult manufacturer for details).

Cover profile:

Length: 1200 mm.

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details.
