HAWA Junior 160 G
Application

Suitable for use when there is a requirement for combining quality with quiet operation, e.g. in residential and public buildings, industrial premises or the administrative sector.

Description

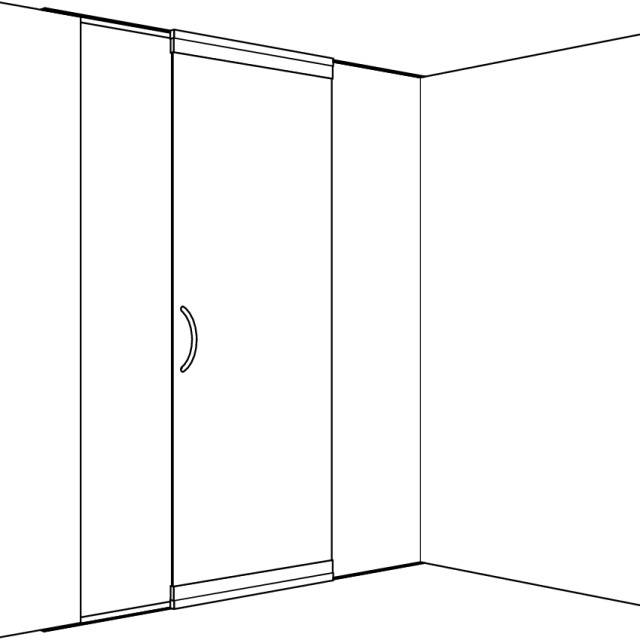

Door hardware with top-fixed suspension, for use with all-glass sliding doors weighing up to 160 kg.

Features and benefits:

  • Robust construction.
  • Incorporates high-grade polyamide tandem rollers.
  • Compatible for use with sliding doors: Fully tempered monolithic glass (of 8–16 thickness), and fixed doors: Fully tempered monolithic/ laminated glass (of 8–12 mm thickness, up to 13 mm with silicone). Further profiles allow fixed glass to be fitted without the hardware being visible.
  • Smooth, quiet operation.
  • Includes floor guide for screw mounting, which is rattle-proof for sliding door configurations.
  • Adjustable vertically.

Components:

Quantities vary depending on component - consult manufacturer for details.

  • Two-wheeled trolley, M14, with plastic wheels and hanger bolt M14.
  • Suspension plate, M14, with fixing screws.
  • Track stop, adjustable retaining force.
  • Cover cap for suspension profile, plastic anthracite-grey RAL 7016.
  • Screw-on rubber door stop.

For two-panel sliding doors, order two sets for single doors. Consult manufacturer for further details.

Applications:

Suitable for use when there is a requirement for combining quality with quiet operation, e.g. in residential and public buildings, industrial premises or the administrative sector.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

HAWA Junior 160 G, partial set (12219)

Running track

-

Type

For fixed glass

For sliding glass

Material/ Finish

Aluminium, plain anodized, pre-drilled

Length

See 'Options' and insert requirements.

Suspension/ Retainer profile

Various configurations available, consult manufacturer's literature and insert requirements.

Bottom guide channels

Various configurations available, consult manufacturer's literature and insert requirements.

Accessories/ Other requirement

Not required

Bottom door stop

Available with dull chromium or stainless steel finish; insert requirement.

Bottom/ wall profile

For fixed glass. Various configurations available, consult manufacturer's literature and insert requirements.

Glass cutouts

Various configurations available, consult manufacturer's literature and insert requirements.

Glass surface treatments

Various configurations available, consult manufacturer's literature and insert requirements.

Integrated locking

For sliding doors. Consult manufacturer for details and insert requirements.

Interlocking glass retainer

Glass holder insert, plastic.

Top fixing plate

For fixed glass.

Transparent edge trims

Various configurations available, consult manufacturer's literature and insert requirements.

Vertical sealing profile

Effective against draughts. Various configurations available, consult manufacturer's literature and insert requirements.

Wall connection profile

For unprotected glass edges. Various configurations available, consult manufacturer's literature and insert requirements.

Standard product features

Configuration:

Top hung.

Product Options

Running track:

- Length:

Fixed glass:

Consult manufacturer for available sizes and insert requirements.

The running track sets come with integrated retainers for fixed glass. The glass element is positioned in the track’s fixed glass retainer. A retainer profile for wall and floor fitting provides sufficient stability, whether flush or mounted. A rubber profile or silicone groove hold the glass in position and prevent humidity seeping between glass and track. The running track set also has a cover profile made of aluminium which clips into and closes the fixed glass retainer in the walk-through area.

Sliding glass:

  • 3000 mm.
  • 4000 mm.
  • 5000 mm.
  • 6000 mm.
  • Cut to size.

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details.
