Hawa Concepta III 25/35 Pull - Door Furniture

Verified by manufacturer 4 months ago

Concepta III – 35

Hafele UK Ltd Variant:
Third party certifications:
  • LGA

    LGA

    Certificate type

Furniture hardware for pivot sliding cabinet doors with a maximum panel weight of 35 kg.

Jump to:
+44 (0)800 171 2907 Website

Application

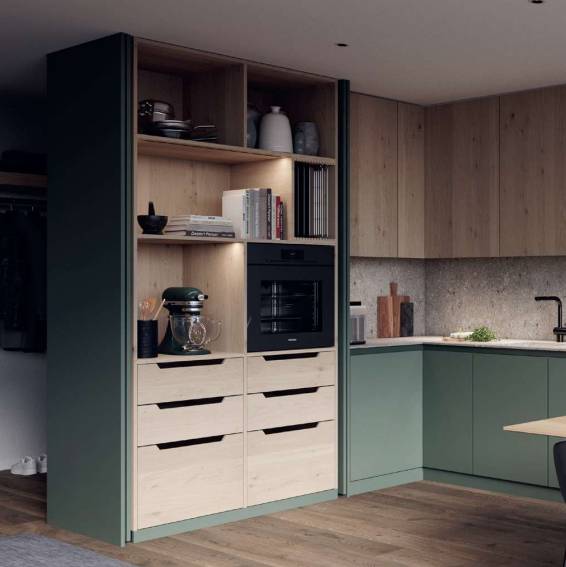

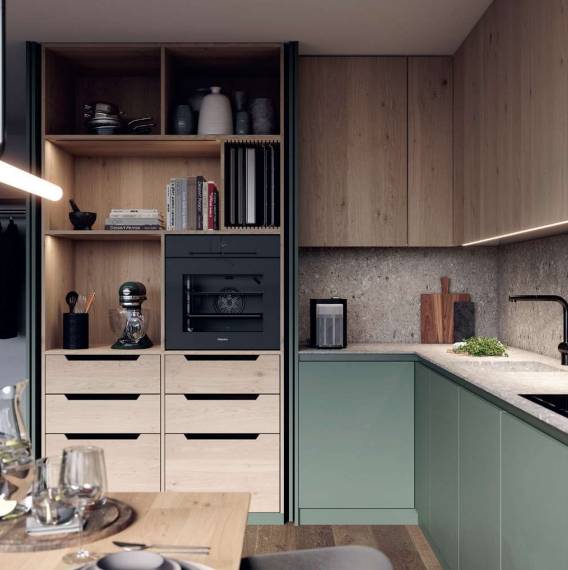

Kitchen cabinet and wardrobe doors, bathrooms, home office applications.

Description

Furniture hardware for pivot sliding cabinet doors with a maximum panel weight of 35 kg.


Features and benefits:

  • Door width: 440–750 mm.
  • Door height: 1200–2700 mm.
  • Door weight: 10–35 kg.
  • Suitable for door panel thickness of 18–26 mm.
  • Slides doors alongside cabinet bodies or into wall recesses.
  • Cabinet design with handle - pulled to final position.
  • No obstructions in the form of protruding doors.
  • Helps to utilize available room space.
  • All necessary adjustments can be made from the front.
  • The connector profile makes it easier to assemble cabinet designs, with doors striking against the top and bottom cabinet sections.
  • The maximum weight must be adapted depending on the door size ratio, consult manufacturer for further details.
  • LGA certified.

General information

Color

Silver

Black

Finish

Anodized

Other

Material

Aluminium

Other

Shape

Rectangle

Length

Bespoke

Width

440 mm

750 mm

Manufacturer guidance

Door width range.

Height

1900 mm

2700 mm

Manufacturer guidance

Door height maximum.

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/350 Door track and running gear

P21/10 Door track and running gear

N10/110 Purpose-made

N10/10 Purpose-made

Specification data - Door track and running gear

Third-party certification

LGA certified.

Form

Anodized aluminium, top and bottom track with nickel plated steel concealed hinges.

Integral accessories

Soft closing mechanism.

Height

1900–2700 mm.

Manufacturer guidance

Suitable door height.

Maximum weight

10–35 kg.

Guidance for specification option:

Consult manufacturers literature for guidance on suitable weight to size ratios.

Hardware

Left door hardware.

Guidance for specification option:

  • ¾" pcs, slot nuts.
  • One pc, hinge mounting plate.
  • ¾" pcs, concealed hinge.
  • One set, concealed hinge fixings.
  • Two pcs, magnetic guide profile.
  • One set, euro screw set.
  • One pc, bottom track guide (left).
  • One pc, top running track (left).
  • One set, countersunk screw set.
  • One set, adjusting tools.
  • One pc, pull slide-in unit (left).
  • One pc, pull end stop bracket.
  • One set, pull set of cover caps for stops (left).
  • One pc, upright profile.

Right door hardware.

Guidance for specification option:

  • ¾" pcs, slot nuts.
  • One pc, hinge mounting plate.
  • ¾" pcs, concealed hinge.
  • One set, concealed hinge fixings.
  • Two pcs, magnetic guide profile.
  • One set, euro screw set.
  • One pc, bottom track guide (right).
  • One pc, top running track (right).
  • One set, countersunk screw set.
  • One set, adjusting tools.
  • One pc, pull slide-in unit (right).
  • One pc, pull end stop bracket.
  • One set, pull set of cover caps for stops (right).
  • One pc, upright profile.


Accessories

Not required.

Guide.

Guidance for specification option:

Code: 408.30.295.

For two inset pivot sliding doors.

Aluminium guide.

Connecting profiles

Not required.

Item T, one door (top and bottom).

Guidance for specification option:

Code: 408.30.459.

Connector set 55 mm, for one door, top and bottom.

For exterior cabinet connection, length 560 mm.

Item U, one door (top).

Guidance for specification option:

Code: 408.30.464.

Connector top 55 mm, for one door, top.

For exterior cabinet connection, length 560 mm.

Item V, two doors (top).

Guidance for specification option:

Code: 408.30.509.

Connector top 110 mm, for two doors, top.

For pivot/ slide-in doors, length 560 mm.

Item W, two doors (bottom).

Guidance for specification option:

Code: 408.30.463.

Connector top 110 mm, for two doors, bottom.

For pivot/ slide-in doors, length 500 mm.

Manufacturer guidance

Fitting sets to create a parking pocket.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Aluminium

Other

Recyclability

Yes

Third party certifications

LGA

LGA

Quality Certificate EN 15570 / EN 15706

Literature

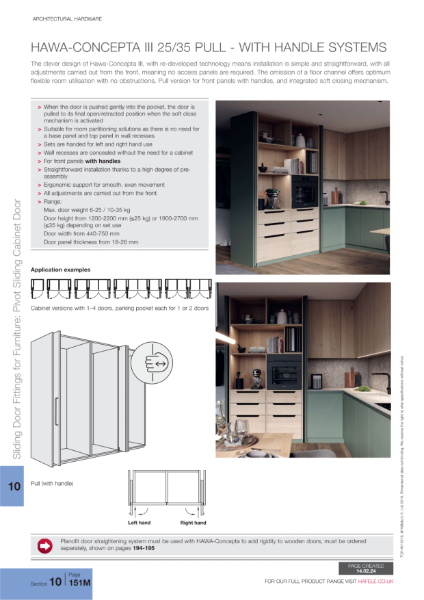

Hawa Concepta III 25/35 Pull – Technical Data Sheet
