Hawa Banio 40 GFE

Application

Suitable for sliding/ fixed glass door combinations in locations such as:

  • Bathrooms.

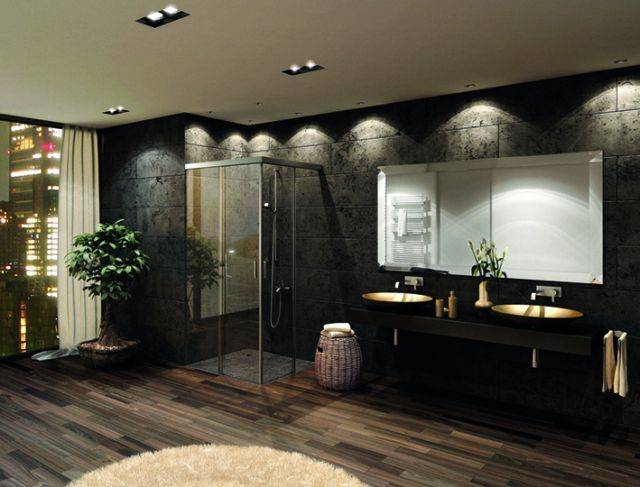

  • All-glass corner showers.
  • All-glass doors.
  • Private living areas.
  • Interior furnishings.

Description

Hawa Banio 40 GFE is designed for two top-running all-glass doors weighing up to 40 kg each. The glass panels are held at the top by glass clamp shoes that are connected to the running gears. The running equipment moves inside a running track that is also equipped with a fixed glass holder. The soft closing is mounted invisibly in the running track.

Features and benefits:

  • Invisible technology and clean profiles create transparency.
  • Invisible soft close.
  • Integrated into running track.
  • Multiple hardware combinations are available.
  • Hygienic use – Sliding doors that pivot without the need for tools, and spray and leak-proof closures.
  • Efficient and economical – Simple, quick assembly and installation.

- Suitable for use with door panels:

  • Panel thickness: 8–10 mm.
  • Maximum panel width: 800 mm.
  • Maximum panel height: 2200 mm.
  • Maximum panel weight: 40 kg.

Components:

Quantities of each component may vary dependent on variant specified - consult manufacturer for details. Fittings available individually or in set with track. Spare parts available on request.

  • Running track.
  • Clip-on panel, to obscure running track.
  • Wall mounting set.
  • Corner connector.
  • Set for glass wall mounting/ Clip-on panel.
  • Panel.
  • Bottom guide.

Applications:

Suitable for sliding/ fixed glass door combinations in locations such as:

  • Bathrooms.
  • All-glass corner showers.
  • All-glass doors.
  • Private living areas.
  • Interior furnishings.

General information

Finish

Anodized

Gloss finish

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Banio 40 GFE

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Finish

Anodized

Gloss finish

Accessories/ Other requirements

See 'Options' below and insert requirements.

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
