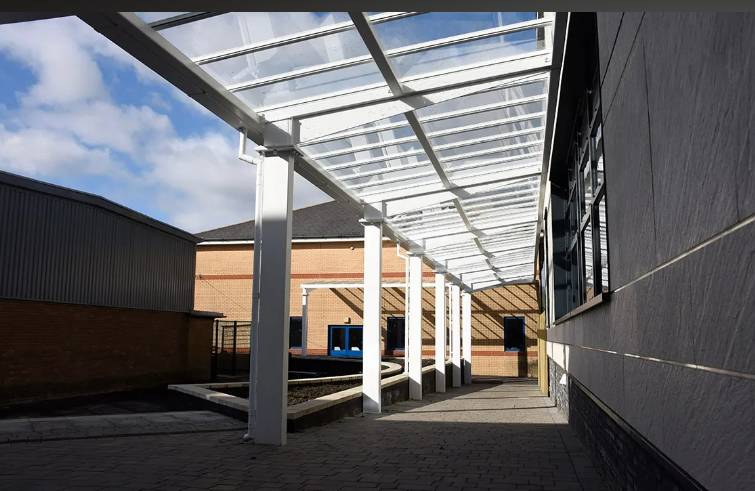

Hartcliffe Covered Walkway Canopy - Canopy and covered walkway

Verified by manufacturer 6 months ago

BXMW/HART

Broxap Ltd Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA AgrĂ©ment Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • FSC

    FSC

    Certificate type

  • Certificate of Approval

    Certificate of Approval

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • SCI Assessed

    SCI Assessed

    Certificate type

  • TRADA

    TRADA

    Certificate type

An adaptable canopy which can be designed to suit the space available.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Shelter applications.

Broxap provide shelters, covered walkways and entrance canopies to schools and offices, as well as a comprehensive range of shelters and cycle storage solutions. The range also includes smoking shelters and timber shelters.

As part of the cycle storage compound range, we offer cycle lockers; these allow cyclists to deposit cycling items safely, as well as securing their bicycle. We can provide bespoke versions of its popular range of shelters, to accommodate a large quantity of cycles or motorcycles, which can be added on to existing structures.

Covered walkways, are able to encounter any complex configurations and can accommodate complex turns and angles. They can provide side screens to their covered walkways which allow the facility to give protection from harsh weather. For additional security to the covered walkways Broxap have optional lighting, in which solar lighting LED’s can be added for security after sundown.

Our shade sail fabric structures offer a stylish solution to protecting children from up to 99% of the sun’s rays and reduce the air temperature by up to 32%. Available in a variety of colour combinations shade sails and canopies can be supplied in a variety of coloured fabrics, with over twenty vibrant colours to choose from! As part of the Shelters range we also supply waterproof Tensile Structures, modular in design these structures offer strength and outstanding durability.

Broxap specialise in designing canopies and covered walkways that provide structurally sound and stylish solutions for every type of external requirement. Whether it's their standard or bespoke designs, all canopies work to complement our entire street furniture range.

Canopies and covered walkways are available in both traditional or contemporary styles, these which include glazed structures, polycarbonate canopies, timber structures, cast iron and fabric canopies. In addition, Broxap also have a number of roofing options, which include transparent polycarbonate, glass solutions or opaque architectural cladding.

The versatile canopy styles, materials and flexibility in design means that our canopies suit any application. Uses can include a playground canopycanopies, outdoor dining areas, and passenger waiting shelters, to name a few. Canopies are available as standard or bespoke designed to any requirements

Covered walkways provide a cost effective solution to create a link walkway. Suitable for many purposes from universities and hospitals to shopping arcades and schools. Covered walkways provide a link walkway between existing buildings, providing protection from the weather. Changes in height, direction and roof profile are all easily integrated into our walkway offering which is bolstered by our Design and Build service.

Bespoke Canopies And Walkways

As part of the bespoke Design and Build service, we offer a complete bespoke solution from the initial consultancy through to the installed and finished product.

Description

The Hartcliffe can also accommodate side panels to one side form a partially enclosed walkway.


The Hartcliffe Walkway offers a cantilever design available with a curved, asymmetric or flat, monopitch roof with uprights down one side only. This is ideal for applications where two rows of uprights cannot be accommodated due to obstructions (e.g Existing services near a building, Doorways, Windows etc). Corners and bends can be easily accommodated using hip joints.


Features and benefits:

  • Side Panels in PETg or Glazed Finish
  • Opal Cladding on the roof and side panels
  • Powder Coating to a wide range of colours
  • PVC-U or Aluminium Guttering
  • LED lighting or solar lighting
  • Clear View PETg UV roof cladding
  • Submerged fixing
  • Robust, tough construction
  • Welded end frames and purlin section made from heavy-duty box
  • Hot dip galvanized to BS EN ISO 1461:2009
  • Full installation service.

General information

Color

Finish

Galvanized

Powder-coated

Primed

Material

Steel

Polycarbonate

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Hartcliffe Monopitch

Dimensions

-

Plan size

4100 x 2200 mm

5000 x 2200 mm

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

Anthracite Grey RAL 7016

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

Glass.

5mm PETg UV ClearView.

Openings

-

Doors

Aluminium Door.

Rainwater drainage

PVC Guttering.

Aluminium Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

Mesh Gates.

PET Gates.

PET Side Panels.

Multiwall Side Panels.

Glass Side Panels.

Trapezoidal profile 1000/32 side panels.

Flat steel Side Panel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructionline Gold Member

FSC

FSC

FSC® (FSC-C122338) Certification

Certificate of Approval

Certificate of Approval

Insurance

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 Environmental

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

SCI Assessed

SCI Assessed

SCI Membership

Health & Safety Accreditation

Health & Safety Accreditation

SMAS Worksafe

TRADA

TRADA

Timber Development UK Certificate

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

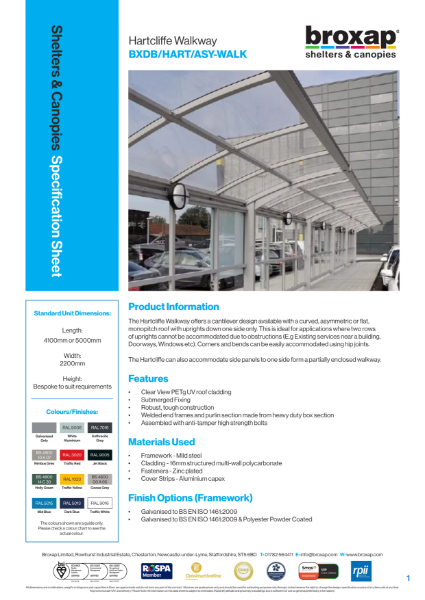

Hartcliffe Specification Sheet
