Harmer Modulock Plastic Self-Levelling Support Pedestals - Paving

Fully engineered, versatile, raised deck support range. Modulock pedestal and Modulock Uni-ring are ideal for concealed drainage and the support of paving slabs at varying heights from the sub-structure.

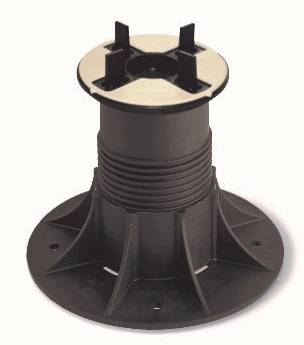

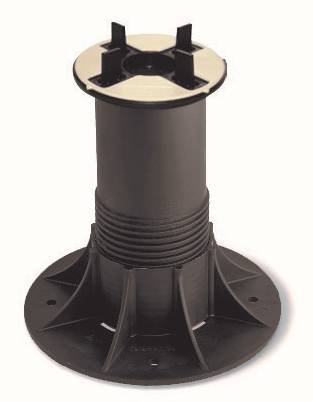

Modulock pedestal – Adjustable height:

• Wide range of height adjustment from 28 to 550 mm
• Fine adjustment for both height and level are possible

Self levelling head:

• The Modulock pedestal self-levelling head compensates for gradients up to 5°
• Manufactured from polypropylene and rubber to provide an anti-noise and anti-slip bedding surface

Self locating:

• Locating blades on Modulock pedestal self-levelling head assist positioning of slabs and maintaining open joints when required
• Locating blades can be removed if required

Compatibility and robustness:

• Harmer Modulock Pedestal and Uni-Ring product ranges are fully compatible with the Modulock Channel Drain range
• Resistant to temperatures from -40 to +120°C

Modulock Uni-ring/Uni-plus – Height supports

• Uni-ring gives a fixed height of 16 mm. Shims offer fine adjustment in increments of 3 mm
• Uni-plus provides adjustment of 25–40 mm. The head features collapsible spacers for ease of installation in corners and perimeter wall situations
• Suitable for use where the floating deck is to be laid parallel to the roof deck, i.e. does not have any slope correcting features
