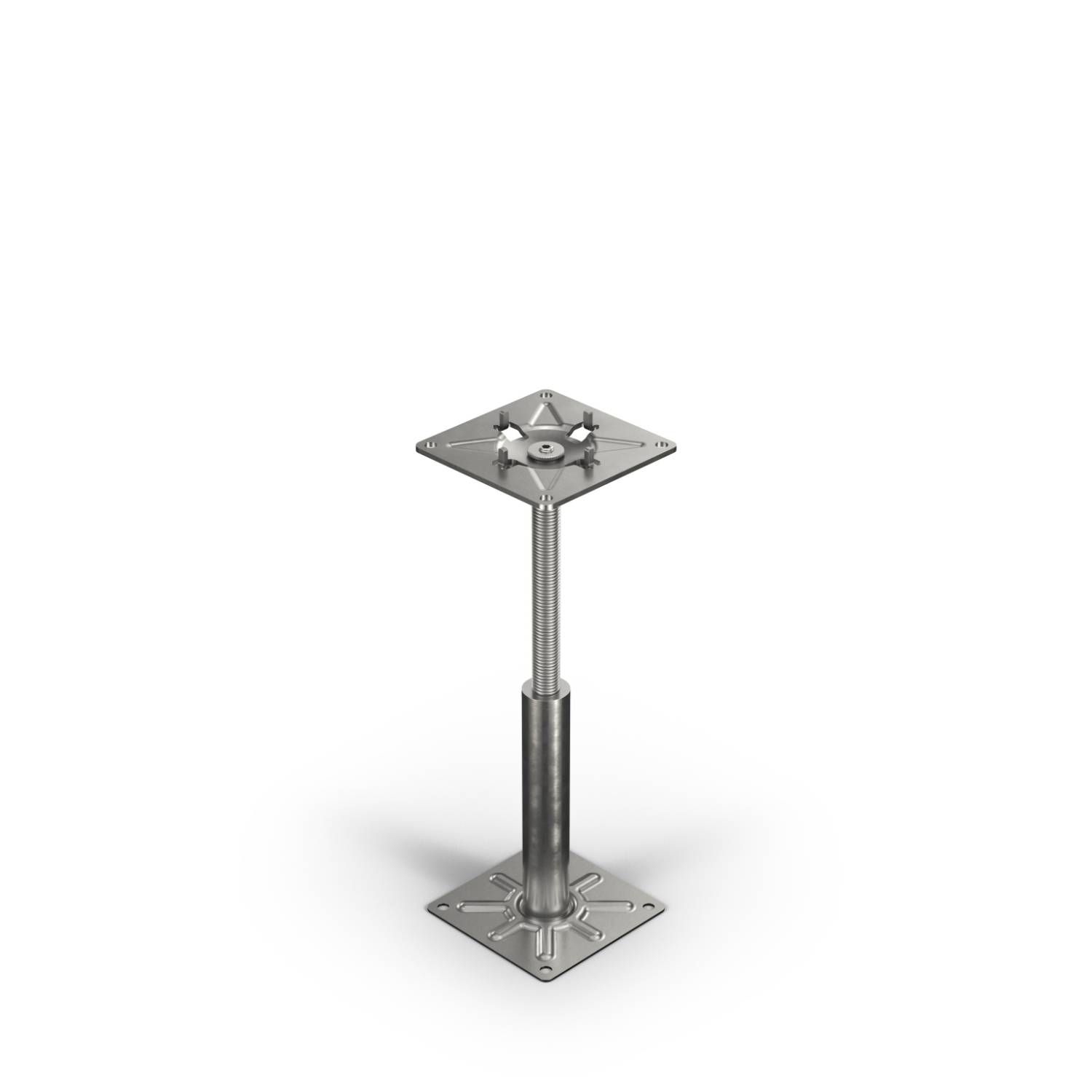

Harmer Modulock Non-Combustible Self Levelling Support Pedestals - Paving
Verified by manufacturer 1 month ago
NCSL1/P - 27–35 mm
NCSL1/P - 27–35 mm
UKAS
Certificate type
Raised paving support pedestals Class A1 fire rated.
Application
- For terraces, podiums, roof decks and balconies
- Suitable for all calibrated paving types, including natural stone, concrete and porcelain
Description
European Classification (Euroclass) A1 Fire Rated paving pedestal supports. Compliant with BS 8579 - Guide to the design of balconies and terraces. The large height-adjustable range is available for every application.
Features and Benefits:
- Manufactured from steel
- Provides strong support for slabs
- Will not crack, split or warp
- Highly durable zinc nickel finish provides excellent corrosion resistance
General information
Color | Grey |
Finish | Zinc plated |
Material | Steel |
Height | Bespoke Guidance for specification option: 27–458 mm. |
Uniclass | |
CAWS | J31/80 Precast concrete paving slabs J21/85 Precast concrete paving slabs Q37/460 Support pedestals J21/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J31/375 Paving tiles J31/370 Precast concrete paving slabs Q55/395 Support pedestals |
Product range |
Specification data - Decking and paving pedestals
Pedestal type | Screwjack. |
Material | Steel, zinc nickel finish. |
Adjustment | 27–35 mm. |
Reaction to fire | Euroclass A1. |
Sustainability data
Contains Red List materials | No |
Material | Steel |
Recyclability | 100% Recyclable |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
