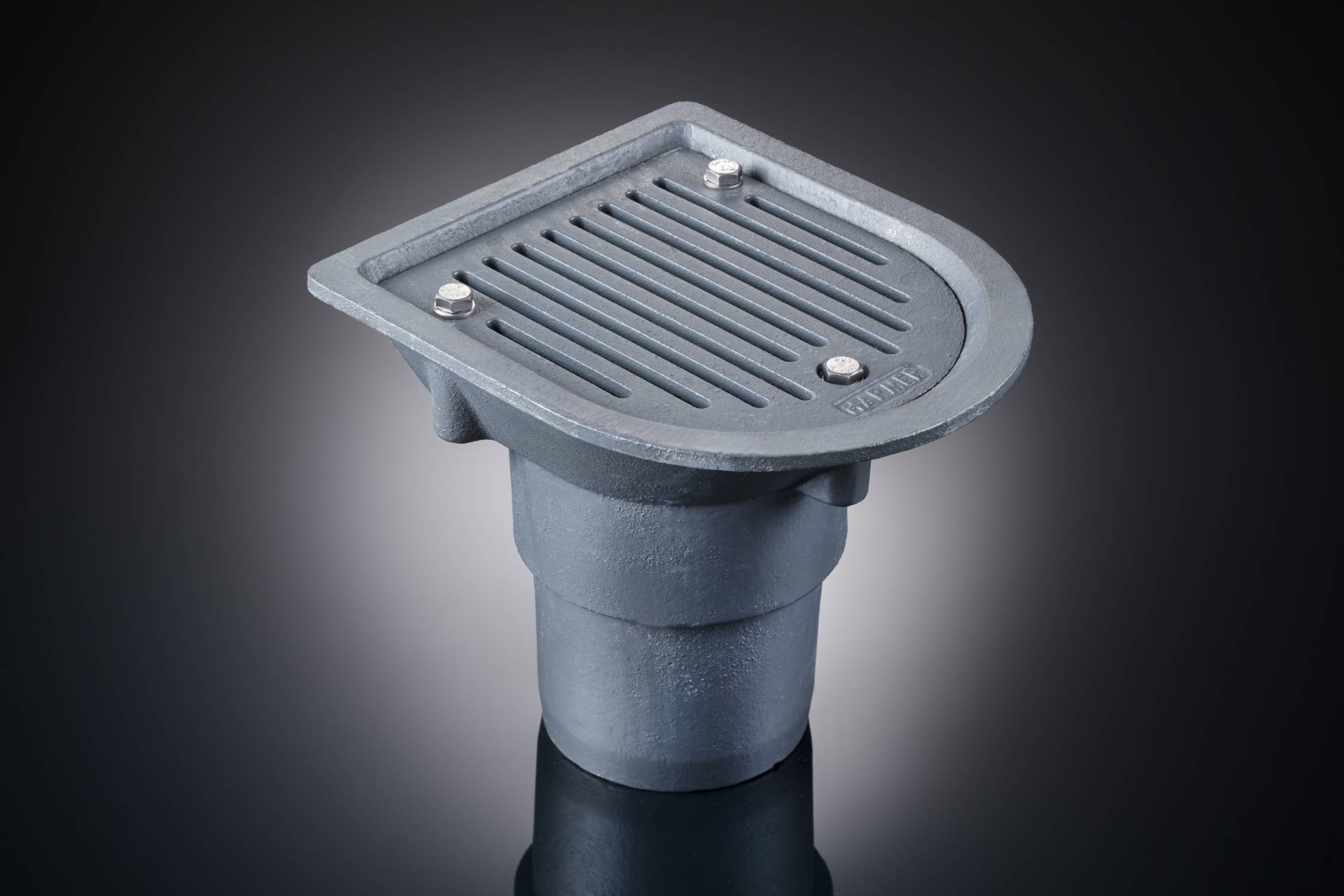

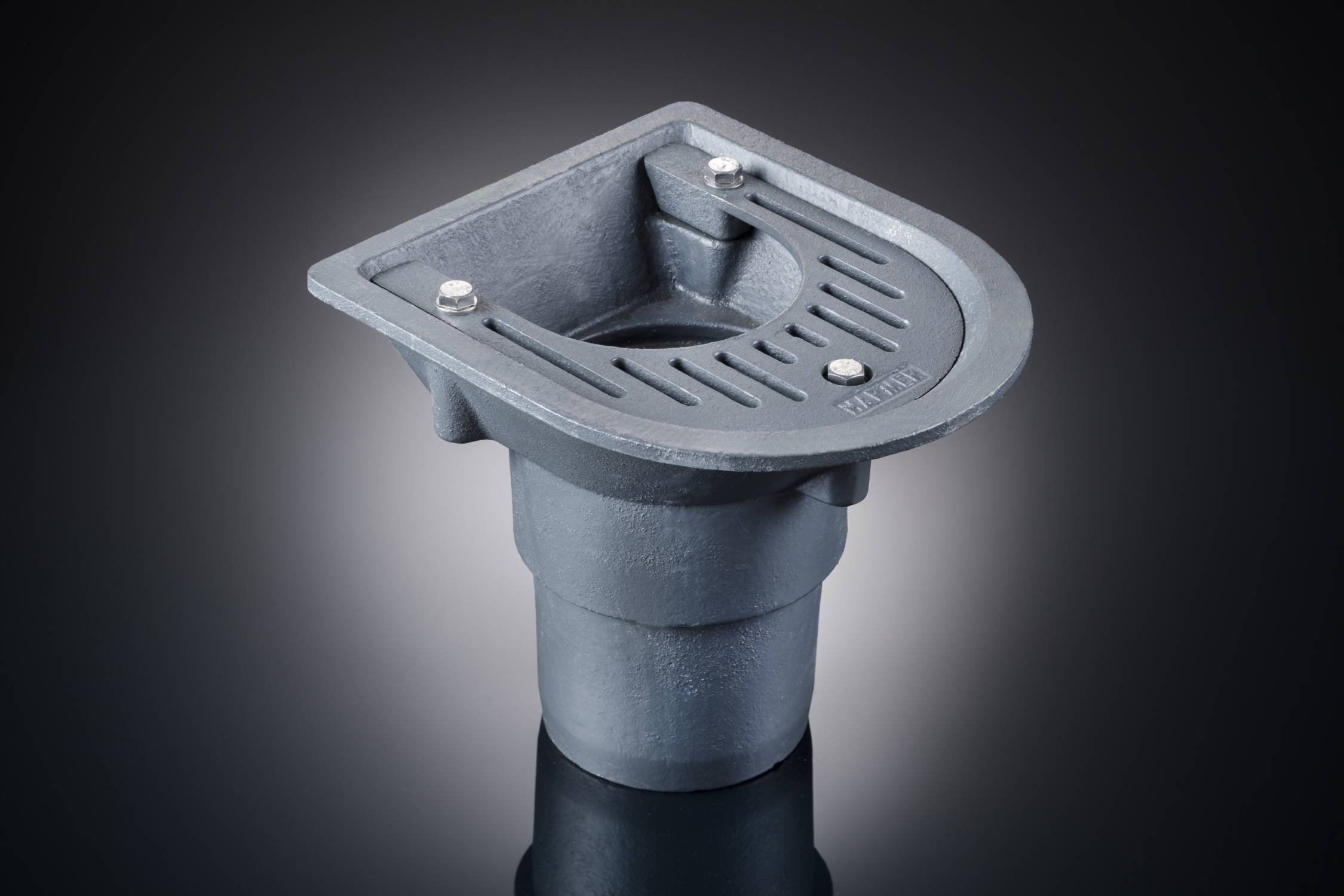

Harmer Balcony Cast Iron Roof Outlet
Verified by manufacturer 2 months ago
C2BO - 2"
C2BO - 2"
UKAS
Certificate type
Cast Iron Balcony Outlet
Application
Balconies and Terraces
Description
A range of balcony cast iron roof outlets available with spigot or threaded connections. Available with a choice of full or aperture grates.
Features and Benefits:
- Expected life in excess of 60 years
General information
Color | Black Grey |
Finish | Zinc plated |
Material | Cast iron |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Timber, cast and metal deck. |
Material | Cast iron. |
Grating | Flat. |
Spigots | Spigoted. |
Integral accessories | Clamping ring and nut/bolt. |
Standards | To BS EN 12056:2000. |
Flowrate | 1.7 L/s. |
Fire rating (to BS EN 13501) | A2. |
Finish and colour | Sherardized zinc coating, black/ grey. |
NominalSize | 2". |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 60 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Harmer Roof Drainage
