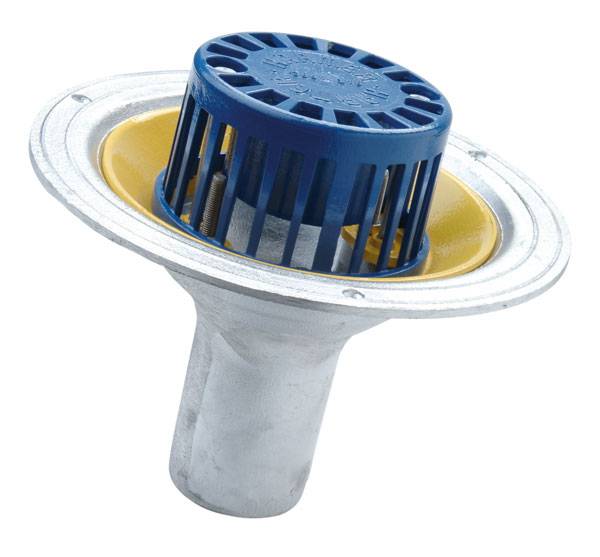

Harmer AV Outlet
Verified by manufacturer 13 days ago
AV200 - 2"
AV200 - 2"
UKAS
Certificate type
BBA Agrément Certificate
Certificate type
Cast Aluminium Anti-Vortex Roof Outlet
Application
Harmer offers a wide range of roof drainage products suited to different types of roof construction including structural concrete, metal deck, timber deck, warm roof, cold roof, green roof and inverted roof. A secure connection between the waterproofing membrane and rainwater outlet is critical. Harmer Roof outlets can be used with all types of membrane including asphalt, built-up felt, single ply and wet-applied systems.
Description
Harmer Roof AV Vertical rainwater outlets are designed for use with flat roof structures using either insitu cast concrete, timber or lightweight metal deck construction. Harmer Roof outlets are ideal for connection to continuous waterproofing systems using single ply membranes, mastic asphalt, high performance built-up felt and wet-applied systems.
Features and Performance:
- Lightweight, durable and non-corrodible
- Life expectancy of aluminium: 40 years (rural/suburban areas); up to 25 years (industrial/marine areas)
- High flow performance
- Robust and secure
- Low maintenance
- Aluminium is 100% recyclable
- Sustainable
General information
Color | Blue Yellow |
Finish | Powder-coated Guidance for specification option: BBA polyester powder coated. |
Material | Aluminium |
Shape | Other Guidance for specification option: Tapered. |
Uniclass | |
CAWS | R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Roof construction | |
Form | Flat roof. |
Material | Aluminium. |
Grating | Flat.Domical Anti Vortex. |
Spigots | Spigoted.Threaded. |
Integral accessories | Clamping Ring.Nut/ Bolt. |
Fire rating (to BS EN 13501) | A2. |
Flowrate | 1.69 L/s. |
Outlet size | 2". |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
UKAS

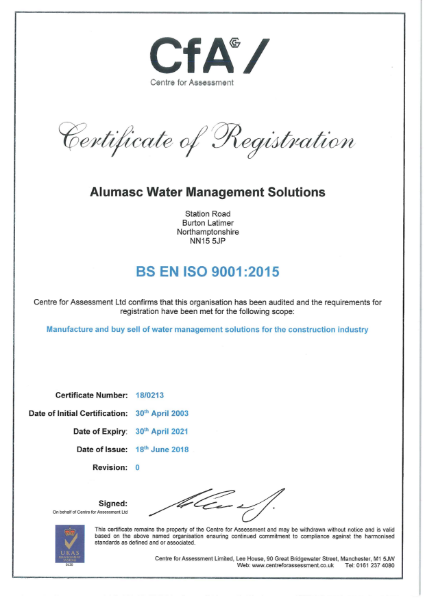

ISO 9001 - Burton Latimer site
UKAS

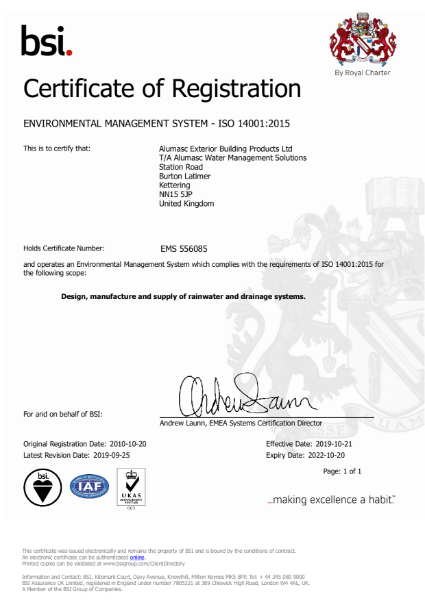

ISO 14001 - Burton Latimer site

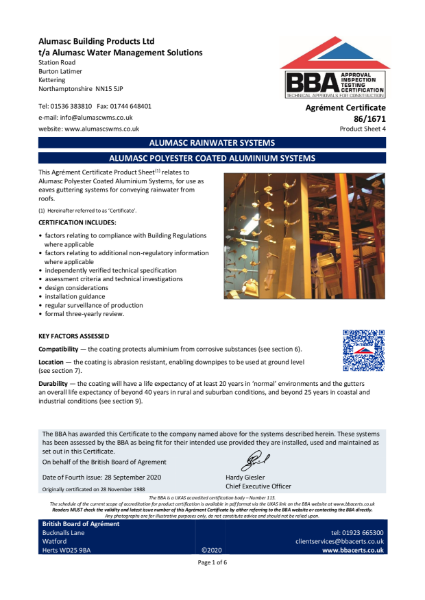

BBA Agrément Certificate
BBA Powder Coating Certificate
Literature
Harmer Roof Drainage
Case studies
Alder Hey Children’s Health Park - Harmer Roof Outlets Harmer SML

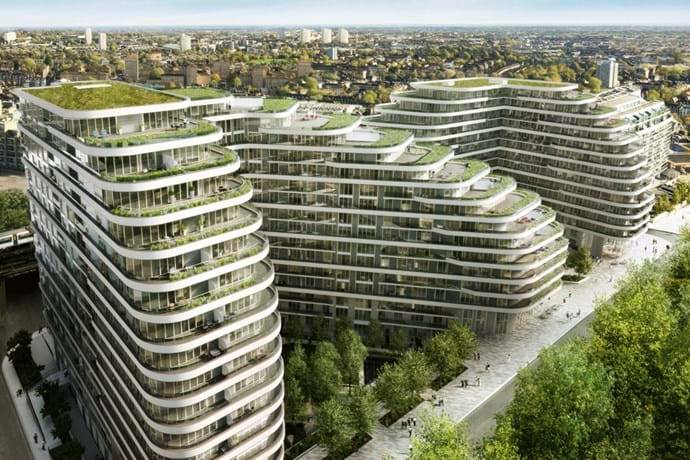

Chelsea Bridge, Battersea - Harmer Aluminium Outlets

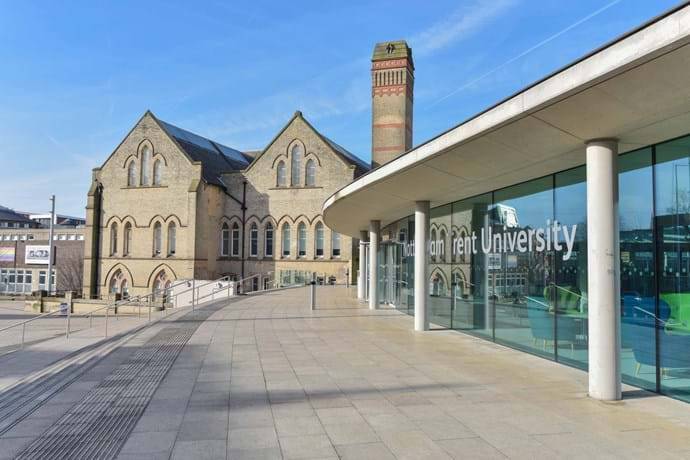

Nottingham Trent University’s Clifton Campus Library - Alumasc Harmer Aluminium Roof Outlets, GX Gutters & Heritage Aluminium Pipework
Similar products from Alumasc Water Management Solutions
Harmer Balcony Cast Iron Roof Outlet

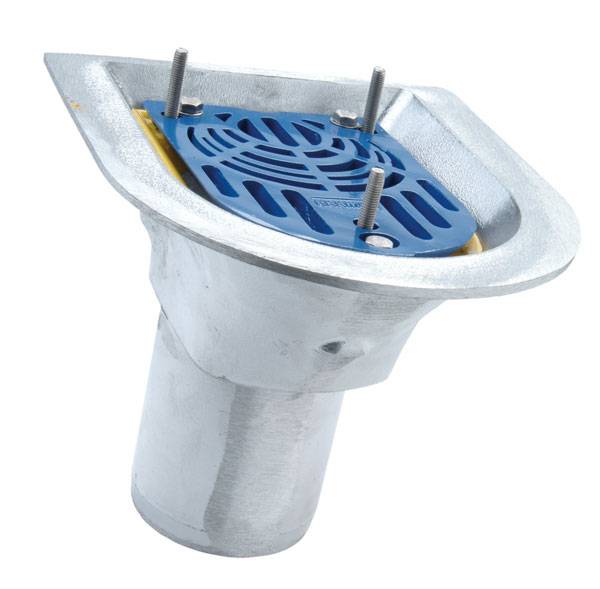

Harmer Balcony Outlet

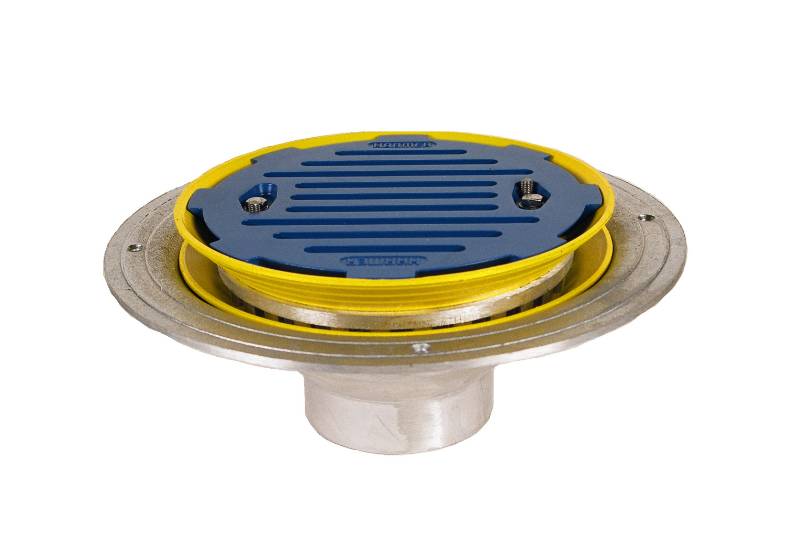

Harmer Car Park Outlet
Harmer Detail Outlet

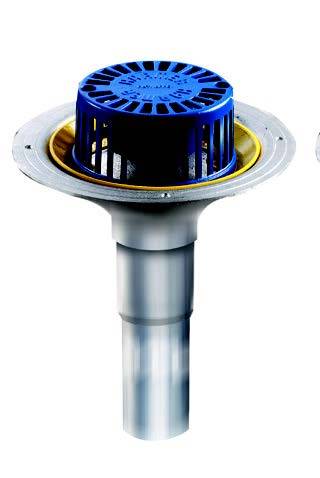

Harmer Extended AV Outlet

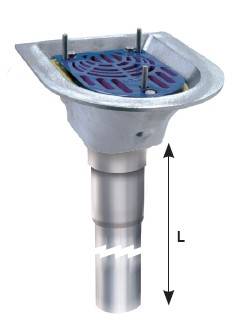

Harmer Extended Balcony Outlet

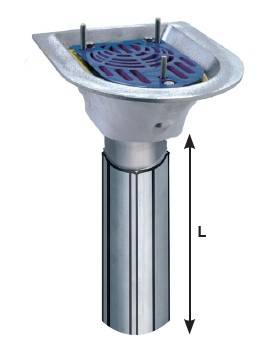

Harmer Extended Balcony Outlet With Flushjoint Spigot

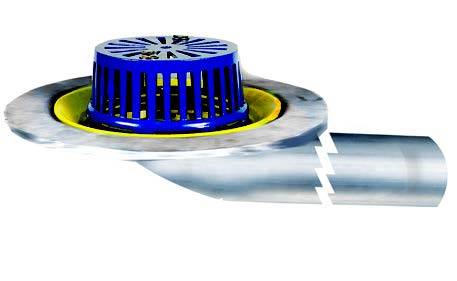

Harmer Extended Detail Outlet

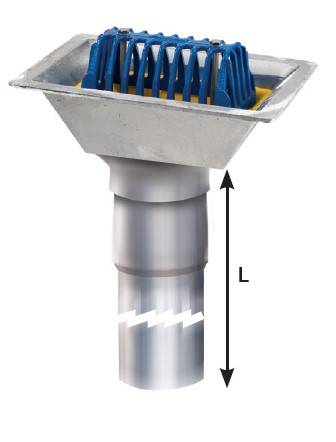

Harmer Extended Gully Outlet

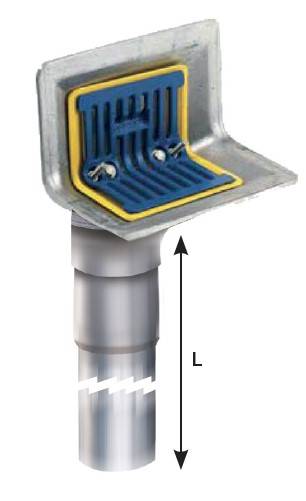

Harmer Extended Two Way
