Harlequin Liberty HD - Dance and Performance Floor

Verified by manufacturer 5 days ago

Harlequin Floors (British Harlequin plc) Third party certifications:
  • Certificate of Approval

    Certificate of Approval

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • EN 13501-1 (Efectis)

    EN 13501-1 (Efectis)

    Certificate type

  • VOC Content test Certificate

    VOC Content test Certificate

    Certificate type

  • FSC

    FSC

    Certificate type

Permanent or portable sprung floor.

Jump to:
BOS
+44 (0)1892 514888 Website

Application

The panels join together quickly and simply using a rounded tongue and groove and are secured in place using Harlequin’s proprietary ‘one turn of the key’ latch and lock mechanism. They are easy to transport, store and install making Harlequin Liberty ideal for touring.

Description

Harlequin Liberty HD is a development of our renowned Liberty sprung floor panel system, designed with enhanced durability in mind for more challenging environments. Harlequin Liberty HD is a birch plywood sprung floor panel system featuring shock dampening dual-density elastomer pads, designed for both permanent or portable installation. The panels are coated with a black polymer resin on both sides, featuring a textured, high-grip pattern on the top surface which is high-wear, slip resistant and weatherproof.


Liberty panels are laid in a 'brickwork fashion' onto the sub-floor so that cross joins do not coincide. This offers the same feel and energy return to one or several dancers.


Harlequin Liberty can be used with a variety of Harlequin performance surface options from the Harlequin range of performance vinyls and solid or engineered wood finishes. Edge trims and ramps are available if required.


Features and benefits:

  • Can be installed permanently or as a portable floor.
  • Durable, for more challenging environments.
  • Panels are laid in a brickwork fashion onto the sub-floor so that cross-joins do not coincide.
  • The panels join together by a rounded tongue-and-groove system.
  • Panels are secured using a ‘one turn of the key’ latch and lock mechanism.
  • Dual-density, shock-dampening elastomer pads at predetermined intervals. For portable panels, pads will have clear PVC protection.
  • Can be installed by the customer or Harlequin's installation team.

General information

Color

Black

Finish

Textured

Material

Plywood

Shape

Rectangle

Square

Length

1000 mm

2000 mm

Width

1000 mm

Height

3700 mm

Warranty description

Ten year

Five year

Material

Plywood

Uniclass

Ss_30_20_95_95 Wood floating floor systemsPrimary

CAWS

K11/295 Floating floor system

Product range

Floors
Sprung floors

Specification data - Wood floating floor systems

Subfloor preparation layer

Smooth, flat, hard surface.

Underlay

Polymer resin-backed plywood.

Flooring

-

Board type

Plywood.

System accessories

None.

Edge trims.

Ramps.

Corners.

Panel size

1000 x 1000 mm.

2000 x 1000 mm.

Weight

12.5 kg/m².

Wear layer

Black textured polymer resin.

Reaction to fire

Bfls1 to EN 13501.

Shock absorption

67%.

Dynamic loading

>1500 N (69 kg/cm²).

Category of use

A4.

Thermal resistance

1.52 m².K/W.

Thermal insulation

0.658 W/m²K.

VOC emissions

BREEAM compliant Formaldehyde E1 Class/ Level <0.10 mg/m³.

InstallationMethod

Latch and receiver.

Load

1126 kN (229 kg/cm²).

Manufacturer guidance

Maximum point load.

Accessories

Not required.

Corner pieces.

Ramps.

Guidance for specification option:

Length 1 m & 2 m, width 540 mm.

Mini ramps.

Guidance for specification option:

Length 1 m & 2 m, width 200 mm.

Edge trims.

Guidance for specification option:

Length 1 m & 2 m, width 65 mm.

Deflection

12.8%.

Manufacturer guidance

Area deflection.

Deformation capability

4.1 mm.

Manufacturer guidance

Vertical deformation.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Plywood

Recyclability

Can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

Certificate of Approval

Certificate of Approval

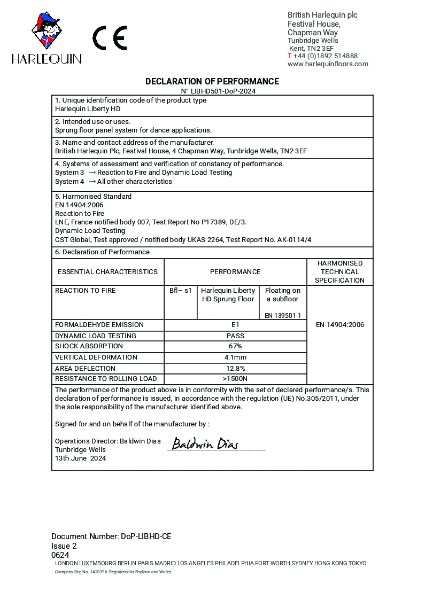

EN14904-2006 Harlequin Liberty

QA Certificate

QA Certificate

EN 1991-1-1:2002 Harlequin Liberty Load Test

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

Harlequin Liberty Fire Classification

VOC Content test Certificate

VOC Content test Certificate

VOC Certification

QA Certificate

QA Certificate

EN ISO 140-8: 1998 Harlequin Liberty & Woodspring Impact Sound Test

FSC

FSC

FSC Certificate

Literature

Architects Guide

Architects Guide

Guide To Dance Floors

Guide To Dance Floors

White Paper Harlequin Specifying Dance Floors

White Paper Harlequin Specifying Dance Floors

Harlequin Liberty HD Sprung Floor Panel System

Harlequin Liberty HD Sprung Floor Panel System

Harlequin Fiesta Performance Vinyl Suface

Harlequin Fiesta Performance Vinyl Suface

Harlequin Floors - vinyl floors brochure

Harlequin Floors - vinyl floors brochure

Harlequin Freestyle Performance Vinyl

Harlequin Freestyle Performance Vinyl

Harlequin Reversible Performance Vinyl Floors

Harlequin Reversible Performance Vinyl Floors

Harlequin Standfast Performance Vinyl

Harlequin Standfast Performance Vinyl

Harlequin Studio Performance Vinyl Surface

Harlequin Studio Performance Vinyl Surface

Harlequin Liberty Accessories

Harlequin Liberty Accessories

Thermal Values of a Sprung Floor

Thermal Values of a Sprung Floor

BREEAM Fact Sheet

BREEAM Fact Sheet
