Harlequin FreeStyle™
Verified by manufacturer 1 month ago
Certificate of Approval
Certificate type
EN 13501-1 (Efectis)
Certificate type
VOC Content test Certificate
Certificate type
QA Certificate
Certificate type
FSC
Certificate type
Vinyl floor systems for dance and performing arts.
Application
Harlequin FreeStyle is specified for permanent or temporary
installation, the joins are welded or taped to form a continuous performance
surface that can be laid onto any hard or smooth subfloor and is recommended
for use in conjunction with a suitable Harlequin sprung floor.
Description
Harlequin FreeStyle is a cushioned vinyl performance floor with a slip-resistant dance surface, a vinyl support layer and closed-cell foam backing, this provides added protection against hard subfloors.
Harlequin FreeStyle was developed for dance styles such as hip-hop, jazz and street dance (break dance). It is widely used for all contemporary and modern dance, aerobics and Zumba.
Features and benefits:
- Cfl-s1 (EN 13501-1).
- Available in four roll length options.
- Slip resistant surface.
- Closed-cell foam backing.
- LEED, BREEAM & REACH compliant.
- Suitable for use with underfloor heating - maximum 27 degrees.
General information
Color | Grey Black |
Finish | Embossed Slip resistant. |
Material | PVC Foam Vinyl |
Shape | Other |
Length | 15000 mm 20000 mm 25000 mm 30000 mm |
Width | 1500 mm |
Height | 450 mm |
Warranty description | Ten year If fitted by Harlequin. Five year |
Uniclass | |
CAWS | M50/20 Sheeting M50/150 Sheeting |
Specification data - Foam-backed polyvinyl chloride (PVC) sheets
Standard | TO BS EN ISO 10582. |
Recycled content | 23—30%. |
Width | 1.5 m. |
Thickness | 4.5 mm. |
Colour and pattern | Grey (880).Black (180). |
Weight | 2.67 kg/m². |
Roll length | 15 m. 20 m. 25 m. 30 m. |
Fire classification | To EN 13501-1, Cfl-s1. |
Safety | REACH compliant. |
Surface material | Slip-resistant dance surface with PVC support. |
Backing | Closed-cell foam backing. |
Seams | Welded. Taped. |
VOC emissions | Formaldehyde E1 Class/ Level <0.10mg/m³, TVOC >0.5mg/m³ |
Gloss level | Nominal 6 |
Chemical resistance | Good Resistance. Not affected by dilute acids or domestic products. |
Lightfastness | >6. |
Third-party certification | Environmental Product Declaration A+ LEED, BREAM, REACH Compliant. |
Dimensional stability | <0.40% |
Environmental Product Declaration (EPD) | A+ |
Light reflectance | 180-2, 880-39. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled content | 30 % Maximum. (Range 23—30%). |
Third party certifications

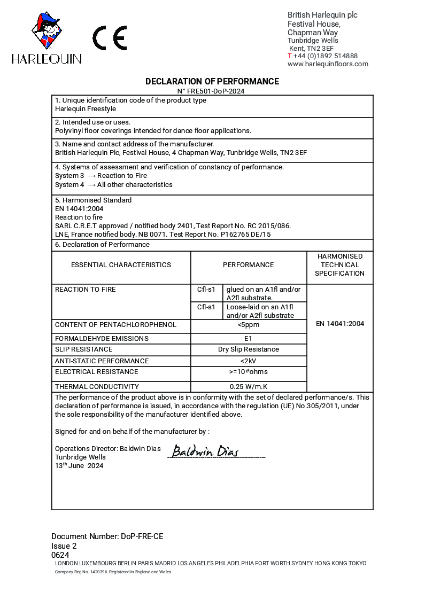

Certificate of Approval
EN 14904-2006 Harlequin Activity with Vinyl
EN 13501-1 (Efectis)
Harlequin Freestyle Fire Classification
VOC Content test Certificate
VOC Certification
QA Certificate
EN 14904-2006 Harlequin Woodspring with Vinyl
FSC
FSC Certificate
Literature
Architects Guide
Guide To Dance Floors
White Paper Harlequin Specifying Dance Floors
Harlequin Freestyle Performance Vinyl
Thermal Values of a Sprung Floor
BREEAM Fact Sheet
