Handrail db HR40
Verified by manufacturer 2 months ago

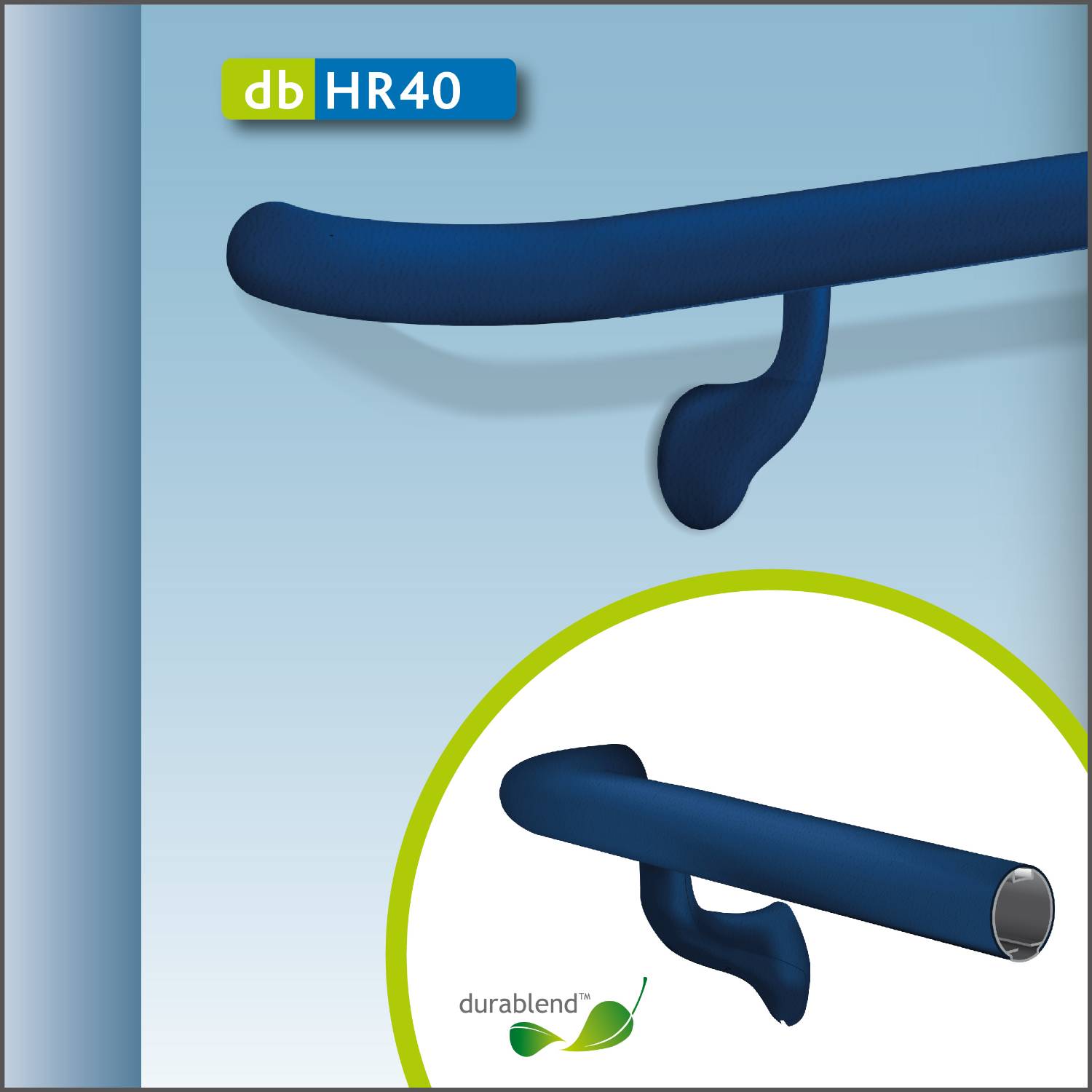

SDS Protection HR40 impact resistant durablend™ handrail.
Application
Corridors, entrances and ramps.
Description
Handrail used for providing pedestrian support and a significant level of impact protection. Designed for interior use.
Features and benefits:
- 40 mm diameter handrail with 60 mm stand-off.
- durablend™ cover, endcaps and brackets over aluminium retainer.
- Completely concealed fixing points for cleanliness and user safety.
- Available in 25 durablend™ colours.
- Entirely recyclable polyvinyl chloride (PVC) free product.
General information
Finish | Satin |
Material | Aluminium Retainer: Aluminium; Cover and brackets: durablend™. |
Shape | Tubular handrail. |
Length | 4000 mm |
Width | 40 mm |
Height | 40 mm |
Uniclass | |
CAWS | L30/580 Proprietary handrails L30/70 Proprietary handrails |
Specification data - Handrail systems
Handrails | Shock-absorbing handrail.With PVC-free durablend cover over continuous aluminium retainer. matching endcaps and wall brackets. |
Fixing to parent structure | Projecting brackets. |
Site finish | Satin.Smooth surfaces, satin finish easy clean handrail with matching smooth, satin finish wall brackets. |
Uniclass 2015 Title | Aluminium brackets |
Product Reference | Handrail db HR40 |
Anti-microbial coating | Cover impregnated with anti bacterial additives. Tested in accordance with ASTM G21-96 (Reapproved 2002). |
ColourAvailable in 10 standard stock colours and 15 semi-standard colours. See SDS Protection website for details. | Aqua. Buttermilk. China. Cobble. Flint. |
End caps | Return-to-wall end caps. |
Chemical resistance | Tested in accordance with ASTM D 543-06. |
FireRating | Tested in accordance with BS EN 13501-1+A1:2009: B-S1-d0. |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2017 | 2 |
