Halton D10 (SR4) - Doorset

Verified by manufacturer 6 months ago

Halton SR4 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

  • UKAS

    UKAS

    Certificate type

The Halton SR4 doorset has been developed to resist experienced attempts at forced entry of commercial premises, with no regard to noise.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

Carbon steel doorsets for commercial premises. Suitable for both internal and external use.

Description

The doorset has been developed to resist experienced attempts at forced entry of commercial premises, with no regard to noise. LPCB test tools include: Felling axe, sledge hammer, disc grinder, hole saw, hooligan bar and scissor jack.


Features and benefits:

  • External doorsets are CE and UKCA marked to EN 14351-1.
  • Internal non-fire-rated doorset third-party certified.
  • Internal fire-rated doorset to BS 476-22.
  • LPS 1175 Issue 8 and FSC certified.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

To BS or RAL colour specification.

Finish

Primed

Painted

Stained

Other

Wood grain

Show more

Material

Carbon steel

Timber

Manufacturer guidance

Carbon steel door leaf with timber frame and timber core.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Carbon steel doorsets

Standard

To EN 14351-1, BS EN 1634-1, BS EN 1522/1523 and BS EN ISO 10077-1.

Configuration

Single-leaf, single-action - inward opening.

Single-leaf, single-action - outward opening.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

-

Manufacturer guidance

Maximum/ minimum sizes to comply with security requirements regardless of fire rating.


Single doorset, non-fire rated, inward:

  • Minimum Structural opening is 600 x 1468 mm (w x h).
  • Maximum Structural opening is 1400 x 3200 mm (w x h).



Single doorset, non-fire rated, Outward:

  • Minimum Structural opening is 600 x 1000 mm (w x h).
  • Maximum Structural opening is 1400 x 3200 mm (w x h).



Single doorset, FD60 fire rated, inward opening:

  • Minimum Structural opening is 600 x 1468 mm (w x h).
  • Maximum Structural opening is 1010 x 2200 mm (w x h).



Single doorset, FD60 fire rated, outward opening:

  • Minimum Structural opening is 600 x 1000 mm (w x h).
  • Maximum Structural opening is 1010 x 2200 mm (w x h).


Please contact Stafford bridge for further details.

Performance

-

Fire resistance

-

Integrity

FD60 to BS 476-22.

Not applicable.

Intruder resistance

-

Minimum requirement

To LPS 1175 issue 8, D10 (SR4). Secured by Design certification.

Application

Both sides (hinge side – outward opening / non-hinge side – inward opening).

Conformity

All security testing was carried out by BRE to LPS 1175 issue 8.

Bullet resistance

-

Manufacturer guidance

  • To BS EN 1522: FB1 to FB7 available for certain configurations.
  • Please contact Stafford Bridge for further details.

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C15/C25 available for certain configurations. Please contact Stafford Bridge for further details.

Frame

-

Material

Solid hardwood.

Threshold

No threshold.

6 mm Stainless Steel 304/ 316 soleplate (threshold).

Exitex CDT100 low level aluminium threshold on top of the 6mm stainless steel Soleplate only (threshold).

Exitex CDT100 low level aluminium threshold.

Perimeter seals or inserts

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

-

Coating

Full paint finish.

Primed ready for site finish.

Veneered.

Laminated.

Texture

As standard 30% gloss.

Colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.


Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Door leaf

-

Thickness

Minimum 56 mm.

Core

Timber.

Material

Steel wrapped timber composite door.

Lippings

Non-fire rated: concealed steel lipping’s to all edges.
Fire Rated: concealed hardwood lipping’s to all edges.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

Painted steel beading as standard.


None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for fire resistance.

Beading

-

Type

External.

Internal.

Hardwood cloaked.

Steel beading (manufacturer's standard).

Material

Steel.

Fixing

Manufacturers standard (steel beading) machine screws.

Finish

-

Coating

Wet spray, two coats.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Texture

Gloss 30%.

External colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.


Internal colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.


Film thickness (minimum)

-

Manufacturer guidance

80–160 microns.

Door accessories

Door Contacts

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators

Door selectors.

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinge bolts.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


To match frame.

Guidance for specification option:

If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame

Wood appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Finish

To match frame colour.

Colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

Over panel, fixed.

Side panel, fixed.

Over panel, removable.

Side panel, removable.

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Carbon steel

Timber

Manufacturer guidance

Carbon steel door leaf with timber frame and timber core.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

BRE Certificate

BRE Certificate

Halton Doorset LPS 1175 Certificate

UKAS

UKAS

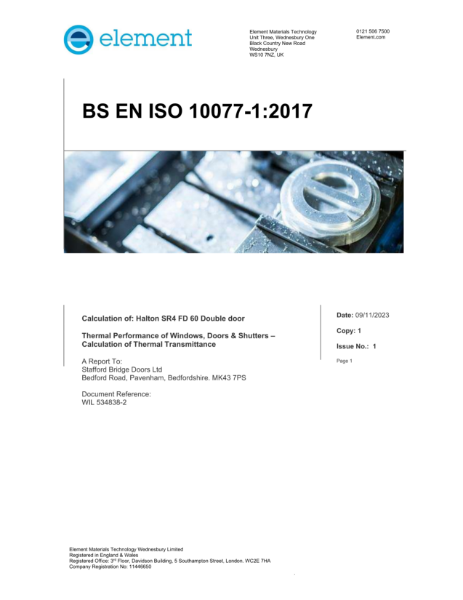

Halton Doorset BS EN 10077-1 Certificate

Literature

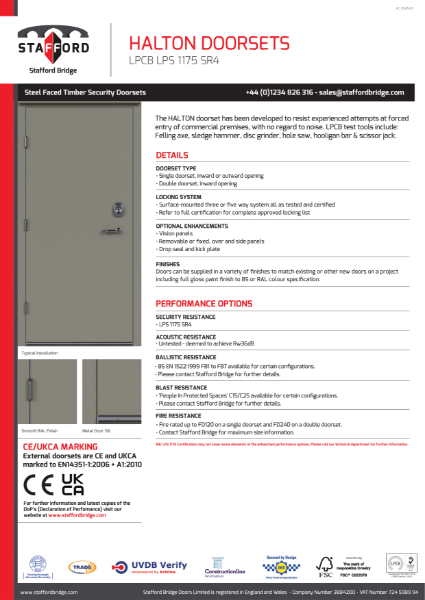

Halton SR4

Halton SR4
