HALSPAN® ProTech 44m Interior Grade Door Blanks - Double Acting Single Doors

HALSPAN® ProTech 44m Interior Grade Door Blanks - Double Acting Single Doors

Halspan Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

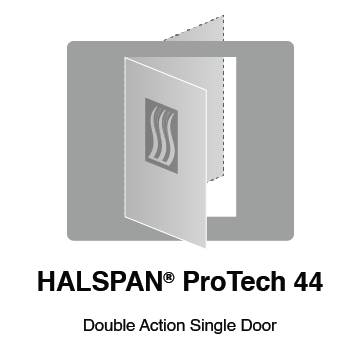

Double Acting Single Doors

Jump to:
+44 (0)330 0563836 www.halspan.com

Application

For interior applications.

Description

Moisture resistant door blanks with a fire rating of 30 minutes.

Features and benefits:

  • Produces robust, stable doors.
  • Suitable for receiving plywood or medium density fibreboard (MDF) facings, and can receive veneer and laminate finishes - consult manufacturer for details.
  • Tested to comply with PAS 24.
  • Rebates can be incorporated for double door configurations.
  • FSC® certified.

Tested in accordance with:

  • BS 476-22: 1987.
  • BS EN 1634-1: 2000/ 2008.
  • BS EN 1363-1: 1999.
  • BS EN 12046-2: 2000.
  • BS 6375-3.
  • EN 1191.
  • EN 1192.
  • EN 947.
  • EN 948.
  • EN 949.
  • EN 950.

Applications:

For interior applications.

General information

Size

See 'Options' below and insert requirements.

Finish

Paint, timber veneers, PVC laminates or cellulosic non-metallic foils

Color

Brown

Features

Moisture resistant

Material

Timber hardwood

Shape

Rectangle

Uniclass 2015

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Specification data - Doorset systems

Product Reference

ProTech 44 mm Interior Grade Door Blanks

Configuration

Double Acting Double Door (DADD)

Double Acting Single Door (DASD)

Latched Single Acting Double Door (LSADD)

Latched Single Acting Single Door (LSASD)

Unlatched Single Acting Double Door (ULSADD)

Unlatched Single Acting Single Door (ULSASD)

Size

See 'Options' below and insert requirements.

Frame

Hardwood

Softwood

Glazing

Required

Consult the Halspan Technical Support manual for available options and insert requirements.

Not required

Seals/ inserts

Consult the Halspan Technical Support manual for details.

Hinges

Ball bearing butt hinge

Fixed pin hinge

Journal supported lift-off hinge

Washered butt hinge

Intumescent material

Graphite

Locking

Consult the Halspan Technical Support manual for further details and insert requirements.

Lipping

Consult the Halspan Technical Support manual for further details and insert requirements.

Accessories/ Other requirements

A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features

Door leaf:

- Material:

Three-layer solid core, faced with exterior grade plywood/ MDF.

- Thickness:

44 mm.

- Weight:

19.8 kg/m².

- Thermal transmittance (U-Value):

<1.8 W/m²K.

- Moisture content:

8–12%.

Acoustic performance (to BS EN ISO 10140-2: 2010):

  • Single doors (plywood): Unglazed: 34 dB (Rw); glazed: 36 dB (Rw).
  • Single doors (MDF): Unglazed: 34 dB (Rw); glazed: 36 dB (Rw).
  • Double doors: Unglazed: 33 dB (Rw); glazed: 33 dB (Rw).

Product Options

Size:

  • Maximum sizes available (single doors): 2438 x 1163 mm or 3014 x 926 mm.
  • Maximum sizes available (double doors): 2438 x 1113 mm or 2914 x 926 mm.

Consult manufacturer for details and insert requirements.

Glazing:

Approved glazing size: 1.08 m².

Hinges:

Hinges should conform to PREN 1935 (BS 7352: 1990). Fixings are to be no smaller than No 10 x 32 mm long.

Locking:

Should conform to PREN 12209 (BS 5872: 1980).

Lipping:

Standard lippings are 6 mm. Different lipping glue lines are available, including PVA, PU and U/F. Consult manufacturer for details.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Third party certifications

  • FSC: Certificate: C003410
