HALSPAN® Prima 54 mm Internal Fire Rated Door Blank - Double Acting Double Doors With Overpanel

Verified by manufacturer over a year ago

Halspan Ltd

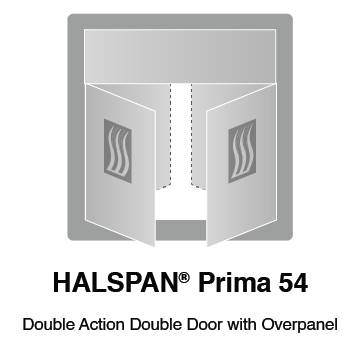

Double Acting Double Doors With Overpanel

Jump to:
BOS
 +44 (0)330 0563836 Website

Application

For interior applications.

Description

Door blanks with a fire rating of 60 minutes.

Features and benefits:

  • Produces high quality, high strength doors.
  • Suitable for receiving veneer, laminate or paint finishes - consult manufacturer for details.
  • Tested to comply with PAS 24.
  • Rebates can be incorporated for double door configurations, and the design can be altered to include feature grooves if required. Consult manufacturer for details.
  • Achieves Severe Duty rating.
  • FSC® certified.

Tested in accordance with:

  • BS 476-22: 1987.
  • BS EN 1634-1: 2000/ 2008.
  • BS EN 1363-1: 1999.
  • DD 171.
  • EN 1191.
  • EN 1192.
  • EN 947.
  • EN 949.
  • EN 950.

Applications:

For interior applications.

General information

Shape

Rectangle

Color

Brown

Finish

Paint, timber veneers, PVC, plastic laminates or cellulosic and non-metallic foils

Material

3 layer particleboard

Size

Guidance for specification option:

See 'Options' below and insert requirements.

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Product range

HALSPAN® Prima Internal Fire Rated Door Blank

Specification data - Doorset systems

Product Reference

Prima 54 mm Fire Rated Interior Grade Door Blanks

Configuration

Double Acting Double Door (DADD)

Double Acting Double Door with Over Panel (DADD+OP)

Double Acting Single Door (DASD)

Double Acting Single Door with Over Panel (DASD+OP)

Latched Single Acting Double Door (LSADD)

Latched Single Acting Double Door with Over Panel (LSADD+OP)

Latched Single Acting Single Door (LSASD)

Latched Single Acting Single Door with Over Panel (LSASD+OP)

Unlatched Single Acting Single Door (ULSASD)

Unlatched Single Acting Single Door with Over Panel (ULSASD+OP)

Size

Guidance for specification option:

See 'Options' below and insert requirements.

Frame

Hardwood

Medium density fibreboard (MDF)

Steel

Glazing

Required

Guidance for specification option:

Consult the Halspan Technical Support manual for available options and insert requirements.

Not required

Seals/ inserts

Guidance for specification option:

Consult the Halspan Technical Support manual for details.

Hinges

Washered ball bearing butt hinge

Fixed pin hinge

Journal supported lift-off hinge

Intumescent material

Graphite

Palusol™

Locking

Guidance for specification option:

Consult the Halspan Technical Support manual for further details and insert requirements.

Lipping

Guidance for specification option:

Consult the Halspan Technical Support manual for further details and insert requirements.

Accessories/ Other requirements

Guidance for specification option:

A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features

Door leaf:

- Material:

Three layer particleboard.

- Thickness:

54 mm.

- Weight:

27.7 kg/m².

- Density:

630 kg/m³.

- Thermal transmittance (U-Value):

2 W/m²K.

- Moisture content:

6–10%.

Acoustic performance (to BS EN ISO 10140-2: 2010):

  • Single doors: Unglazed: 34 dB (Rw); glazed: 35 dB (Rw).
  • Double doors: Unglazed: 33 dB (Rw); glazed: 35 dB (Rw).

Formaldehyde emissions (to BS EN 13986: 2004):

Class E1.

Product Options

Size:

  • Standard sizes: 2135 x 915 mm; 2800 x 915 mm; 2440 x 1220 mm; 3050 x 1050 mm; 2440 x 915 mm; 2800 x 1830 mm.
  • Maximum sizes available (single doors): 2441 x 1384 mm or 3050 x 825 mm.
  • Maximum sizes available (double doors): 2300 x 1142 mm or 2800 x 825 mm.

Consult manufacturer for details and insert requirements.

Glazing:

Approved glazing size: 0.82 m².

Hinges:

Hinges should conform to PREN 1935 (BS 7352: 1990). Fixings are to be no smaller than No 10 x 32 mm long.

Locking:

Should conform to PREN 12209 (BS 5872: 1980).

Lipping:

Standard lippings are 6 mm. Different lipping glue lines are available, including PVA, PVAC, U/F, PU and Hot Melt. Consult manufacturer for details.

Accessories/ Other requirements:

A range of design options and accessories are available including panel effect, feature grooves, door closers, and others. Consult manufacturer for details and insert requirements.
