HALSPAN® Acoustic Seals
Acoustic door seals with additional smoke sealing capability.
Application
For fitting to fire doors.
Description
Acoustic door seals with additional smoke sealing capability.
Features and benefits:
- Includes air-trapping technology to increase acoustic performance.
- Smooth blades help to minimize opening/ closing forces.
- Increased service life; tested to 100 000 cycles.
- Has smoke-seal capabilities in addition to providing high acoustic performance.
- Performance is not affected by ironmongery.
- Quick and easy fitting.
Applications:
For fitting to fire doors.
General information
Uniclass | |
CAWS | L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood-panelled doors L20/250 Wood-panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/310 Wood door frames L20/330 Wood door frames L20/370 Door frames L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/45 Doors L20/480 Doorsets L20/50 Wood door frames L20/52 Wood door frames L20/55 Doorsets L20/60 Doors P21/860 Door seals for |
Product range |
Specification data - Door and window weatherstrips and seals
Product Reference | HALSPAN® Acoustic Seals (SLS‐TRI) |

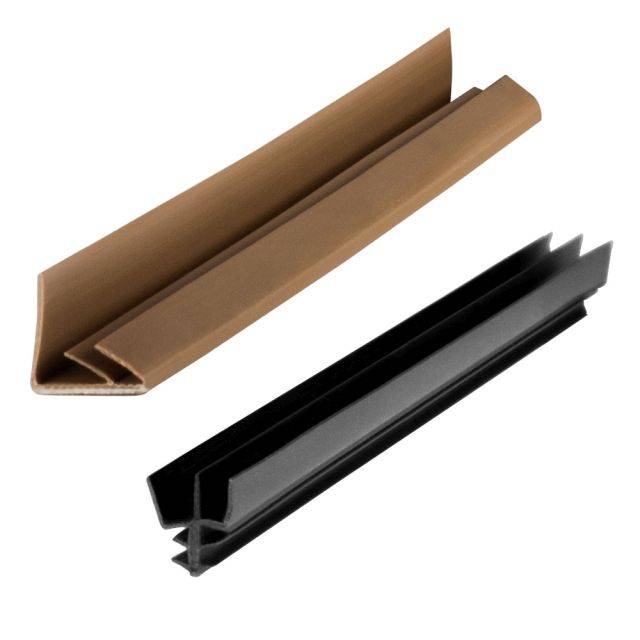

Type | TridentFor friction fitting into a 3 mm wide saw cut. Triple finFor retro-fitting with strong high tack double-sided self-adhesive strip. |
Colour | BlackBrownWhite |
Standard product features | Gap size: 3–4 mm. Construction: Co‐extruded, semi-rigid back with flexible blades. Fixing: Supplied with self‐adhesive on the base side. |
Product Options | Type: - Trident: Designed as an upgrade to pre-assembled fire resistant doors. Can be fitted in a single or double row to provide acoustic performance and additional protection against cold smoke. For friction fitting into a 3 mm wide saw cut. It consists of a semi‐rigid base with three flexible blades which give maximum acoustic performance along with smoke seal capabilities. - Triple fin: Designed as an upgrade to existing fire resistant doors to provide additional protection against cold smoke. It is retro-fit with strong high tack double sided self-adhesive strip. It consists of a semi‐ rigid base with three flexible blades of optimum angles, which give maximum acoustic performance along with smoke seal capabilities. |
