Verified by manufacturer over a year ago
QA Certificate
Certificate type

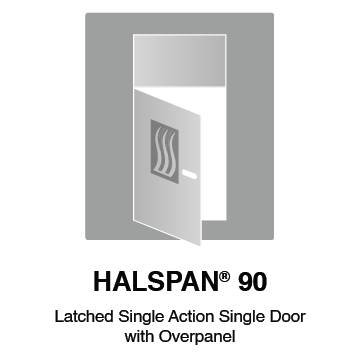

Latched Single Acting Single Doors With Overpanel
For interior applications.
Door blanks with a fire rating of 90 minutes.
Features and benefits:
Tested in accordance with:
Applications:
For interior applications.
Shape | Rectangle |
Color | Brown |
Finish | HPL, timber veneers, plastic laminates or decorative paper/non-metallic foil |
Material | 3 layer particleboard |
Size | See 'Options' below and insert requirements. |
Size | See 'Options' below and insert requirements. |
Finish | HPL, timber veneers, plastic laminates or decorative paper/non-metallic foil |
Uniclass | |
CAWS | L20/410 Wood doorsets L20/420 Wood doorsets L20/480 Doorsets L20/55 Doorsets |
Product range |
Product Reference | HALSPAN® 90 Fire Rated Interior Grade Door Blanks |
Configuration | Double Acting Double Door (DADD)Double Acting Double Door with Over Panel (DADD+OP)Double Acting Single Door (DASD)Double Acting Single Door with Over Panel (DASD+OP)Latched Single Acting Double Door (LSADD)Latched Single Acting Double Door with Over Panel (LSADD+OP)Latched Single Acting Single Door (LSASD)Latched Single Acting Single Door with Over Panel (LSASD+OP)Unlatched Single Acting Single Door (ULSASD)Unlatched Single Acting Single Door with Over Panel (ULSASD+OP) |
Size | See 'Options' below and insert requirements. |
Frame | - |
FrameType | BackfilledFor steel only. Hollow |
FrameMaterial | HardwoodStainless steelManufactured from an appropriate stainless steel grade, e.g. 1.4301 (304) or 1.4401 (316). Consult manufacturer for details. Steel1.5 mm-thick rolled mild steel. |
Glazing | RequiredConsult the Halspan Technical Support manual for available options and insert requirements. Not required |
Seals/ inserts | Consult the Halspan Technical Support manual for details. |
Hinges | Butt hinges (HIN‐BSS‐105)Lift off hinges (HIN‐BSS‐106/7) |
Locking | Halspan® 90 mortice lock/ latch (BOM‐LCK‐102)Includes required intumescent protection. |
Lipping | Consult manufacturer and insert requirements. |
Accessories/ Other requirements | A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details. |
Standard product features | Door leaf: - Material: Three layer particleboard. - Thickness: 64 mm. - Weight: 40.3 kg/m². - Density: 630 kg/m³. - Moisture content: 6–10%. Acoustic performance (to BS EN ISO 10140-2: 2010):
Formaldehyde emissions (to BS EN 13986: 2004): Class E1. |
Product Options | Size:
Consult manufacturer and insert requirements. Glazing: Approved glazing size: 0.56 m². Hinges: Fixed with 50 mm long, No. 10 steel screw ‘Twinfast’ fixings (parallel shank). Lipping: Different lipping glue lines are available, including PVA, PVAC, U/F, PU, and Hot Melt. Consult manufacturer for details. |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
Platform | Compatible | Version |
---|---|---|
![]() | Revit 2017 | 1 |
![]() | - | 1 |
