Halsey Taylor HTHBHVR8 - Drinking fountain packages

Halsey Taylor HTHBHVR8 - Drinking fountain packages

MIW Water Cooler Experts Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Indoor, Vandal Resistant, Wall Mounted, Combination Drinking Fountain & Bottle Filling Station - WRAS Approved.

Jump to:
+44 (0)1207 572 000 www.miw.co.uk

Description

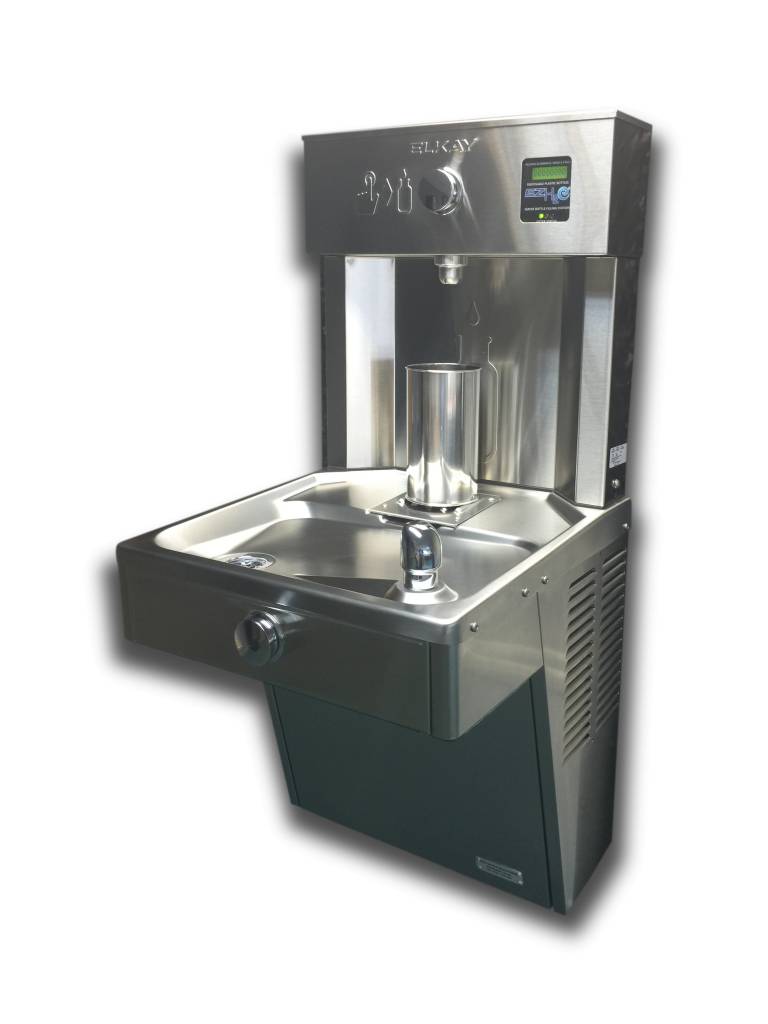

Vandal resistant bottle filler and drinking fountain, for wall mounting. Filtered and refrigerated.

Features and benefits:

  • Vandal-resistant construction with self-closing push buttons which control water flow, and stainless steel casing to ensure minimal damage.
  • Suitable for high volume indoor settings such as schools and gyms due to a sturdy frame and a recessed orifice which prevents the cross-contamination of germs.
  • Features both a drinking fountain and HydroBoost® bottle filling station.
  • Automatic stream height regulator included, which maintains a consistent level of flow under water pressures from 20 to 105 psi.
  • Visual LED filter monitor alerts when the 3000 gallon capacity WaterSentry® Plus filter needs replacement, making maintenance easy.
  • Green Counter™ visual panel will display the number of plastic bottles saved from landfill by being refilled.
  • An in-line strainer will trap any dirt or dust particles larger than 0.14 mm before they reach the waterway.
  • Incorporates laminar flow to prevent chugging or spitting and to create a clean, easy fill.
  • Quick flow rate of 1.1–1.5 gallons of water per minute.
  • Chilling capacity of up to 30 litres per hour.
  • Chrome plated, vandal-resistant, one-piece bubbler tap included.
  • Real drain system eliminates standing water.
  • Comes with an advanced pressure cooler system, which is fully insulated with EPS foam to meet UL requirements for self-extinguishing material.
  • Low maintenance as the unit is hermetically sealed and features lifetime lubrication.
  • Satin finish resists both water marks and fingerprints.
  • Meets with the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information

Color

Silver

Features

ADA Approved, BREEAM Approved, Filtered, GreenSpec Listed, NSF 61/372 lead free, Refrigerated, Stainless Steel, Vandal Resistant, WRAS Approved

Finish

Stainless steel

Material

StainlessSteel

Size

473 x 457 x 986 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015

Pr_40_70_15_96 Water coolersPrimary

CAWS

N13/379 Drinking fountains

Specification data - Water coolers

Product Reference

Halsey Taylor HTHBHVR8

Accessories

Not required

55898C

WaterSentry® Plus replacement filter (bottle fillers).

98324C

Cane apron for HAC, HVR, EMABF and VRC models.

MLP100

In-wall carrier (single).

WSF6000R-2PK

WaterSentry® Fresh 6000 CTO filter replacement (two-pack).

Standard product features

Size (h x w x d):

985 x 470 x 470 mm.

Weight:

38.5 kg.

Material:

Stainless steel.

Finish:

Satin.

Fixing:

Wall mounted. Wall security brackets included.

Water temperature:

3–10°C.

Drain:

32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

2

2.0
IFC
-

2

2.0
Download now from NBS National BIM Library

Third party certifications

  • WQA: Certificate: NSF/ANSI 42, 53, 61, 372
  • WRAS: Certificate: 1707084
  • UL: Certificate: 399
  • CAN/ CSA: Certificate: 22.2 No. 120
