Description

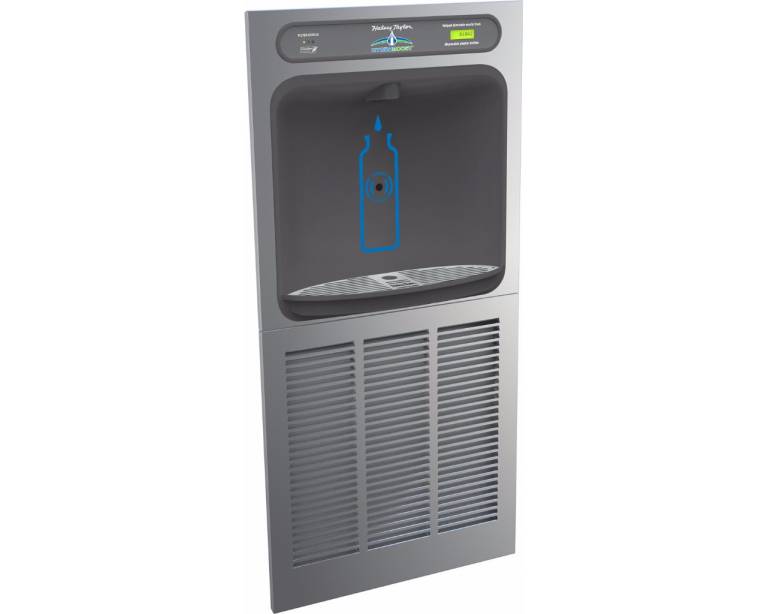

Bottle filling station for mounting in the wall/ recessed. Filtered and refrigerated.

Features and benefits:

  • Quick and energy efficient.
  • Hydroboost produces a flow rate of 1.1–1.5 gallons of water per minute.
  • Laminar flow provides clean flow with minimal splash.
  • All plastic components which could be susceptible to mildew or mould are treated with a silver, ion based and antimicrobial substance to prevent contamination.
  • Sensor controlled to improve hygiene and cleanliness, and create ease of use.
  • Automatic turn-off after 20 seconds without use.
  • Features a HWF3000 WaterSentry® Plus filter with quick-disconnect mechanism, made with activated carbon and patented lead removal media. The filter effectively removes odours, discolouration, and lead and chlorine traces from water.
  • The filter comes complete with LED lights which glow green, yellow or red to indicate when filter maintenance is required.
  • Recessed design allows the unit to be built into walls to save space.
  • Real drain system eliminates standing water.
  • Louvered pattern helps to drain excess water run-off, and hinges are provided for easy access and maintenance.
  • The refrigerator unit is hermetically sealed, with a self-lubricated fan and built in overload protection.
  • Green Counter™ will display on screen the amount of plastic bottles saved from landfill by being refilled.
  • Chilling capacity of 30 litres per hour.
  • Suitable for indoor use.
  • Copper tubing is fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
  • Adjustable thermostat included.
  • Comes complete with efficient capillary sizing and a large capacity dryer-strainer.
  • Manufactured with a waterway system utilizing copper components and lead-free material.
  • Meets the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information
Color

Silver

Features

ADA Approved, BREEAM Approved, Filtered, GreenSpec Listed, NSF 61/372 lead free, Refrigerated, Stainless Steel, WRAS Approved, Sanitary Sensor Activated, Visual Filter Monitor, Green Counter™, Laminar Flow, Antimicrobial, Real Drain, Electronic Bottle Filler Sensor activation

Finish

Stainless steel

Material

StainlessSteel

Shape

Rectangular

Size

89 x 502 x 1037 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015 Water coolers (Pr_40_70_15_96)
Specification data
Product Reference

Halsey Taylor HTHB8-WF

Accessories

Not required

55898C

WaterSentry® Plus replacement filter (bottle fillers).

WSF6000R-2PK

WaterSentry® Fresh 6000 CTO filter – replacement (two-pack).

Standard product features

Size (h x w x d):

1037 x 502 x 305 mm.

Weight:

36 kg.

Material:

  • Frame: Galvanized steel.
  • Panels: Stainless steel.

Fixing:

Wall mounted (in wall/ frame). Wall security brackets included.

Water temperature:

3–10°C.

Drain:

32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
- 2 2.0
Download now from NBS National BIM Library
