Halfen HLX Lift Box - Attachment Points
Verified by manufacturer 18 hours ago
European Technical Approval (ETA)
Certificate type

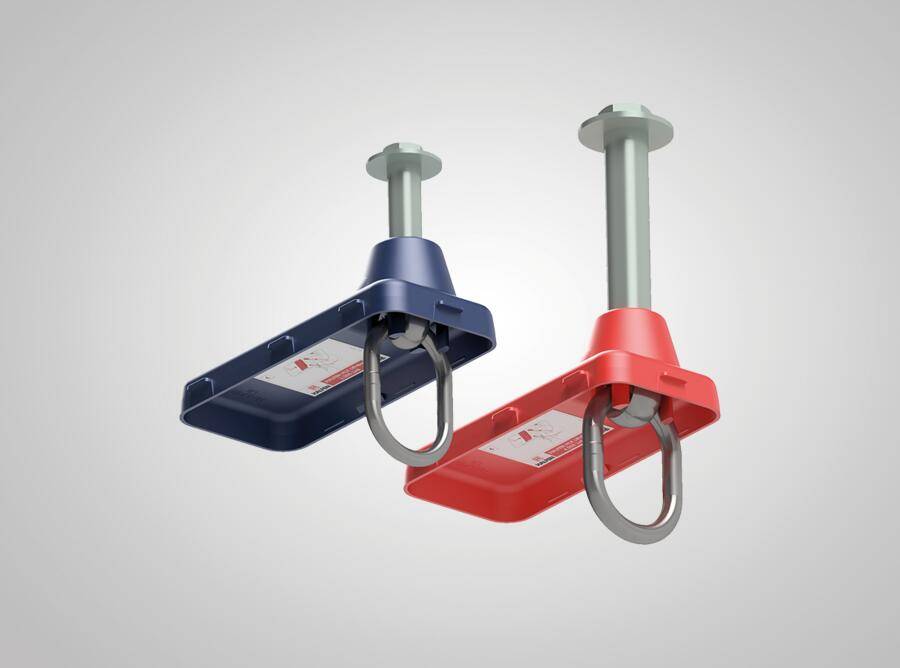

The Halfen HLX Lift Box ensures reliable, safe, temporary attachment of hoisting apparatus, speed governor/limiter, motor and other equipment during installation or maintenance of the lift.
Application
Temporary attachment of hoisting apparatus, speed governor/limiter, motor and other equipment during installation or maintenance of a lift or elevator.
Description
The Halfen HLX Lift Box ensures reliable, safe, temporary attachment of hoisting apparatus, speed governor/limiter, motor and other equipment during installation or maintenance of the lift.
The Halfen HLX Lift Box is delivered to site as a ready-to install solution. It is used for the transmission of predominantly static loads and has rotation locking guaranteed. Due to its low overall height, it can be used in slab thicknesses from as little as 150 mm.
Compliant with ETA-17/0488 the Halfen HLX Lift Box has a load capacity of 1500 kg, 2000 kg or 4000 kg.
Features and benefits:
- Self-releasing and locking chain link with easy fold-back.
- European approved and twist-proof.
- Low weight product for quick and easy installation.
- Available with cable loop or chain link.
- Temporary attachment of PPE personal protective equipment and material loads.
- Cast-in concrete and post-install fixing points.
- European Technical Assessment and Certificates.
General information
Color | Grey Blue Red |
Finish | Other |
Material | Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N25/10 Personal fall protection equipment N25/210 Personal fall protection equipment N25/220 Single point anchorage devices N25/20 Single point anchorage devices |
SKU Code | HALFEN HLX Lift-Box |
Specification data - Socket anchors
Classification data | |
Certification | CE marking is compliant with ETA-17/0488. |
Material | Steel. |
Safe working load (minimum) | 1500 kg. 2000 kg. 4000 kg. |
Thread diameter | M12. M16. M20. M24. |
Threaded inserts | Threaded lifting loop. Chain link. |
Sustainability data
Manufacturing plant location | |
Material | Steel |
Product certifications
European Technical Approval (ETA)
Halfen HLX Lift Box ETA
Literature
Literature type

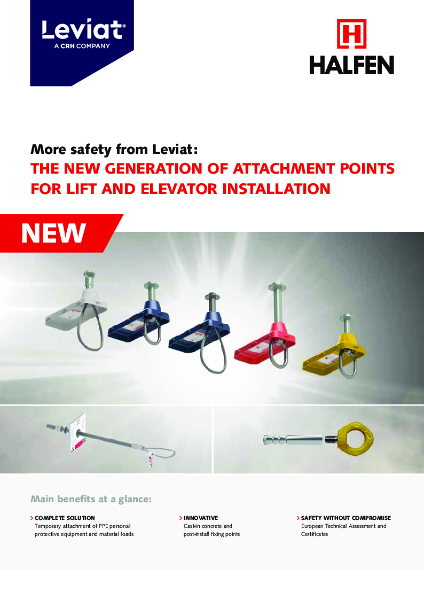

Halfen Attachment Points for Lift and Elevator Installation Product Brochure
Halfen HLX Lift Box Product Brochure

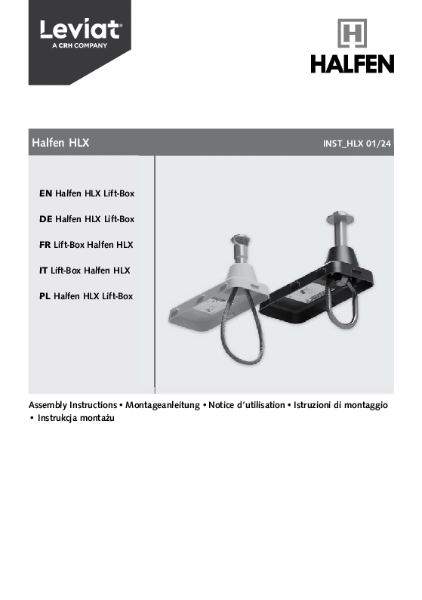

Halfen HLX Lift Box Installation Instructions
