Halfen Detan Rod Systems

Name: Halfen Detan Rod Systems
Brand: Leviat
SKU: drVp58ZoX45SPaQAaa8VdM

Verified by manufacturer 4 months ago

SS/4 500 Tension System

Leviat

High performance tension bar system to restrain roof timbers, canopies, masts and areas of glazing.

Jump to:

BOS

+44 (0) 114 275 5224 Website

Application

Suitable for applications that demand corrosion resistance. Stainless steel option offers a maintenance-free life and is the ideal solution where an attractive polished finish is required.

Description

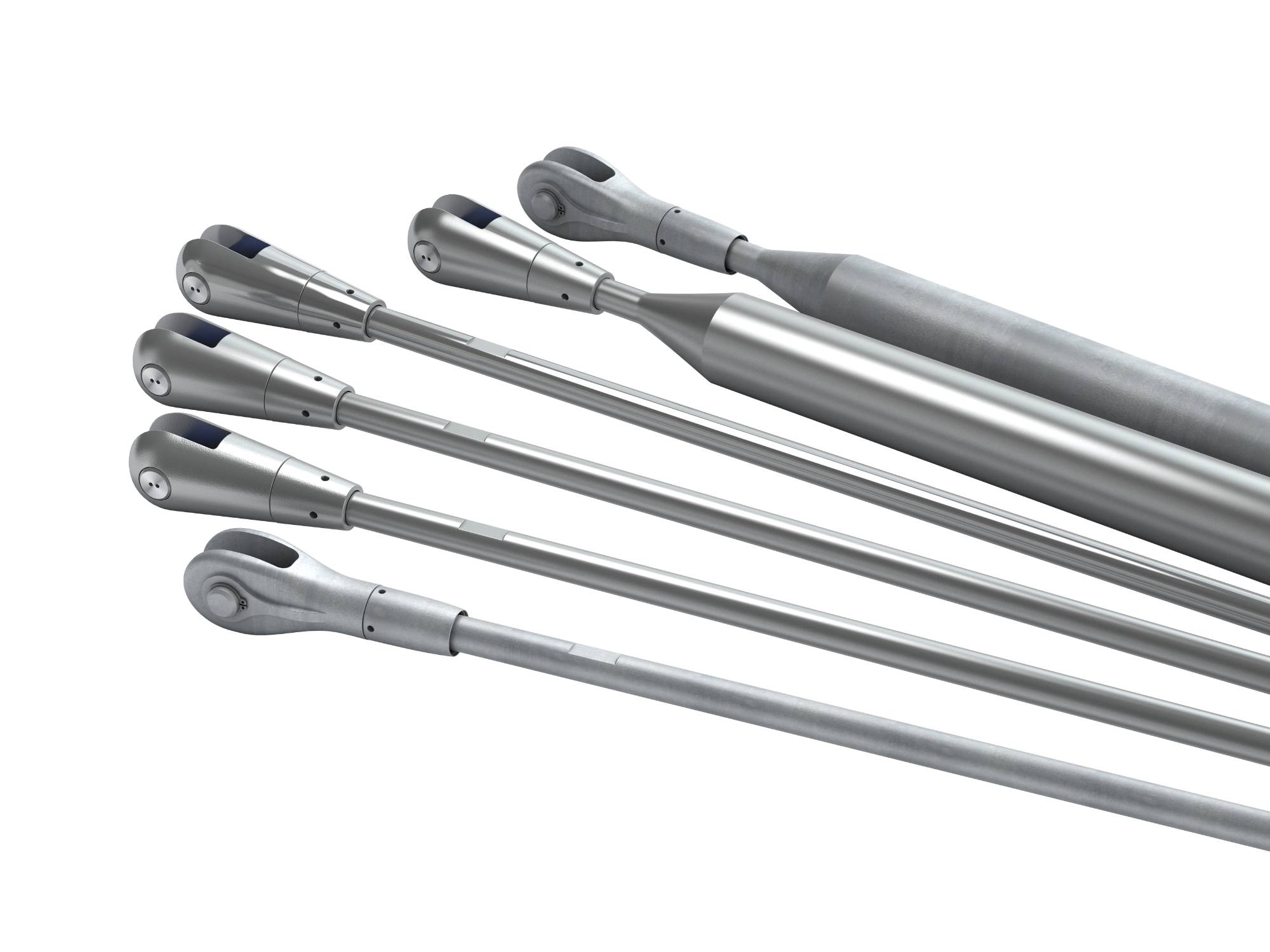

High performance tension bar system, available in stainless steel and carbon steel, typically used to restrain roof timbers, canopies, masts and areas of glazing.

Features and benefits:

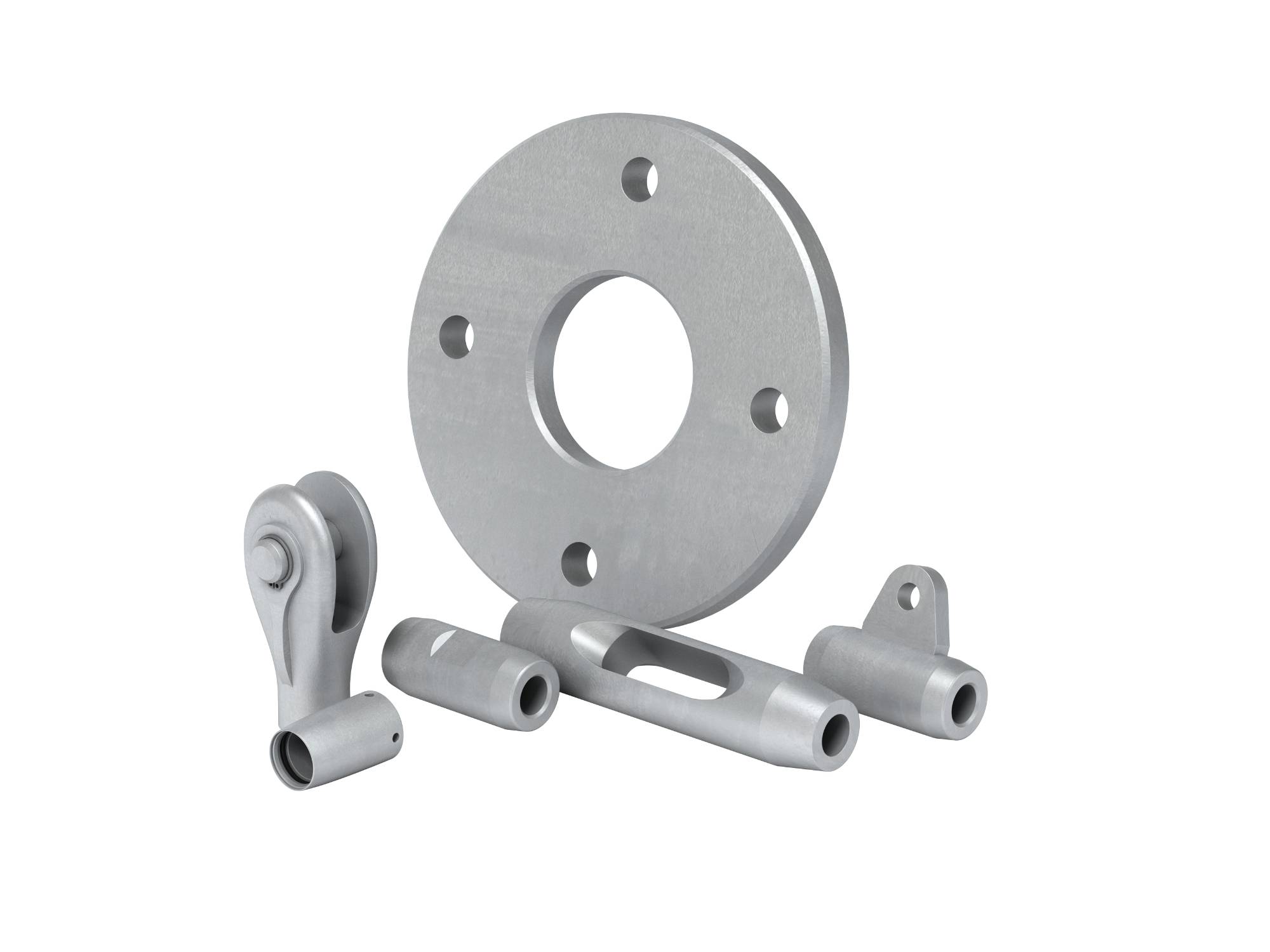

The system can be extended over the maximum bar length by the inclusion of couplers or anchor discs/ cross couplers.
Isolation supplied as standard with stainless steel systems.
The fork connectors and couplers are designed to allow adjustments to be made to the system length without the need for turnbuckles.
European Technical Assessment.
Available in sizes from 8–42 mm in stainless steel and 10-76 mm in carbon steel.
Can be used to create a variety of assemblies from simple tie bars to complex bracing systems involving several bars joined at one point.
Special anchor plates and discs can be manufactured to suit project requirements and connecting plates designed to suit particular applications.

General information

Finish	Satin Polished Electro polished Painted Galvanized
Material	Stainless steel Carbon steel
Shape	Circle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_20_85_84_89 Tension strapsPrimary
CAWS	G12/30 Proprietary members G12/330 Proprietary metal members

Product range	Tension and Compression Systems

Specification data - Tension straps

Standard	European Technical Assessment.
Material	Carbon steel. Stainless steel.
Finish	- Manufacturer guidance Bar finish: Bright drawn. Fork and nut: Electro-polished. Coupler: Machined. Disc: Machined. Cross coupler: Electro-polished.

Bar diameter	M10. Guidance for specification option: Carbon steel and Stainless steel. M12. Guidance for specification option: Carbon steel and Stainless steel. M16. Guidance for specification option: Carbon steel and Stainless steel. M20. Guidance for specification option: Carbon steel and Stainless steel. M24. Guidance for specification option: Carbon steel and Stainless steel. M27. Guidance for specification option: Carbon steel. M30. Guidance for specification option: Carbon steel and Stainless steel M36. Guidance for specification option: Carbon steel and Stainless steel M42. Guidance for specification option: Carbon steel and Stainless steel. M48. Guidance for specification option: Carbon steel. M52. Guidance for specification option: Carbon steel. M56. Guidance for specification option: Carbon steel. M60. Guidance for specification option: Carbon steel. M76. Guidance for specification option: Carbon steel. Show more
System length	Guidance for specification option: System lengths are measured between the centres of the pins in the forks.
Components	Fork connectors and locking nuts. Guidance for specification option: Fork connectors are supplied with a locking nut. Forks and their locking nuts have left or right hand threads, and are supplied complete with a pin. Each stainless steel fork is supplied with two clear, self-adhesive, PET (polyester) washers to isolate the system from a connecting plate of a dissimilar metal. Pins. Guidance for specification option: Two-part locking construction and once installed are flush with the fork. Stainless steel pins are supplied with a PTFE coating around the barrel to isolate the system from a connecting plate of a dissimilar metal. Tie bars. Guidance for specification option: Tie bars have a right-hand thread at one end and a left-hand thread at the other. Flats are pressed into the bar close to each end to allow the bar to be screwed into the fork connectors. Carbon steel bars are available either untreated with the electrodeposited zinc coating Fe//Zn12//A to EN 12329 or are hot-dip galvanized to EN 1461. Stainless steel bars are bright drawn as standard or hand polished when required. Couplers. Guidance for specification option: Couplers have right and left hand threads and are used in applications where more than one bar is required between forks. Supplied with locking nuts for each end of the coupler. Couplers are machined from bar and can have the provision for a hanger to be fitted to limit the deflection of bars of 16 mm diameter or greater. Anchor discs. Guidance for specification option: Allow up to eight bars to be connected together. Can be used at the centre of conventional cross-bracing, or where several bars need to be connected at one point. Machined from plate and can be supplied with a surface finish to match the system. Cross couplers. Guidance for specification option: Offers a streamlined alternative to an anchor disc when forming a cross brace. Minimizes the number of fork connectors and locking nuts required. Available in zinc-plated carbon and stainless steel to suit bar sizes 10–24 mm. Show more
