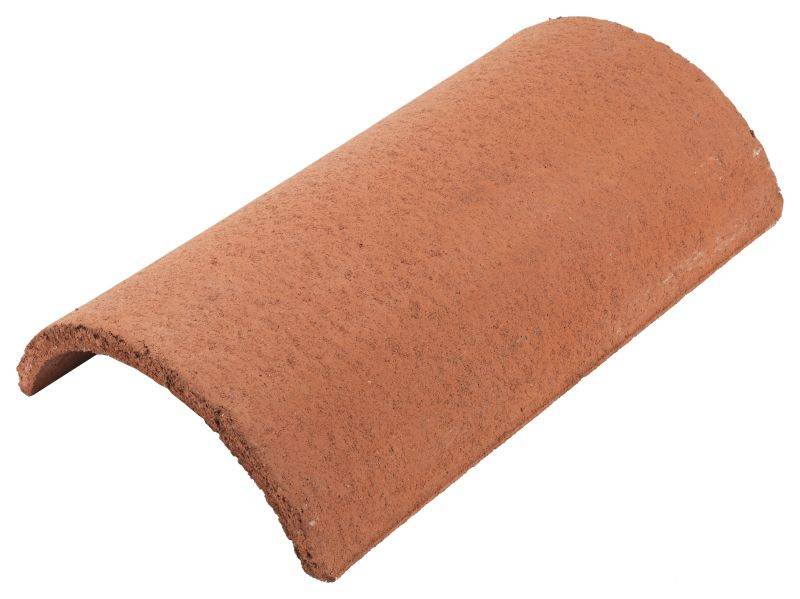

Half Round Ridge Tile
Description

Concrete half round ridge tiles for use with Monier Redland Plain, Slate and Profiled tile ranges.

General information

Finish

Dependent on colour

Material

Concrete

Size

Dependant on type

Uniclass 2015

Pr_35_90_93_21 Concrete tile ridge fittingsPrimary

CAWS

H60/700 Dry ventilated ridges

H60/710 Dry ridges

H60/740 Mortar bedded and mechanically fixed ridges

H60/75 Dry ventilated ridges

H60/76 Dry ridges

Show more
Specification data - Concrete tile ridge fittings

Product Reference

Half Round Block-End Monoridge Left hand - 7266

450 x 154 x 273 mm.

Half Round Block-End Monoridge Left hand - 7406

Half Round Block-End Monoridge Right hand - 7267

450 x 154 x 273 mm.

Half Round Block-End Monoridge Right hand - 7407

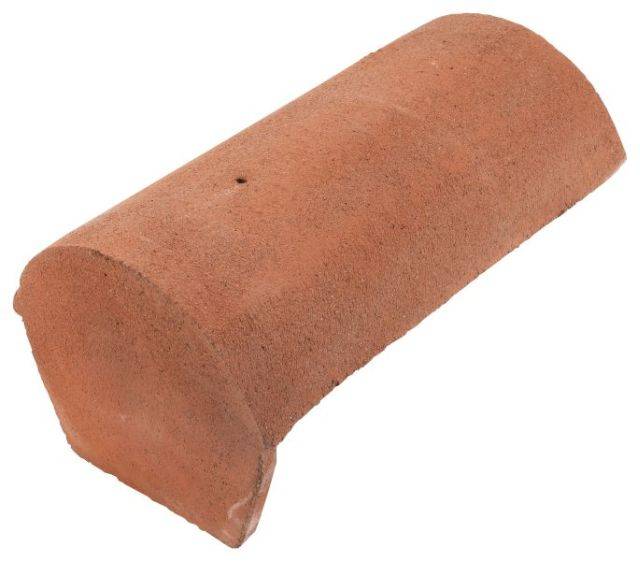

Half Round Block-End Ridge - 7409

450 x 256 x 98 mm.

Half Round Block-End Ridge - 7519

450 x 256 x 98 mm.

Half Round Monoridge - 7203

450 x 154 x 273 mm

Half Round Monoridge - 7403

450 x 154 x 273 mm.

Half Round Monoridge - 7683

Half Round Ridge - 7690

Half Round Ridge - 8101

450 x 256 x 98 mm.

Half Round Ridge - 8201

450 x 256 x 128 mm.

Landmark Half Round Block-End Monoridge Left Hand - 8305

450 x 154 x 273 mm.

Landmark Half Round Block-End Monoridge Right Hand - 8306

450 x 154 x 273 mm.

Landmark Half Round Block-End Ridge - 8303

450 x 265 x 98 mm.

Landmark Half Round Monoridge - 8304

450 x 154 x 273 mm.

Landmark Half Round Ridge - 8302

450 x 256 x 98 mm.

Colour

Insert requirement or type 'As roof tiles'.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 4 1.3
Download now from NBS National BIM Library
