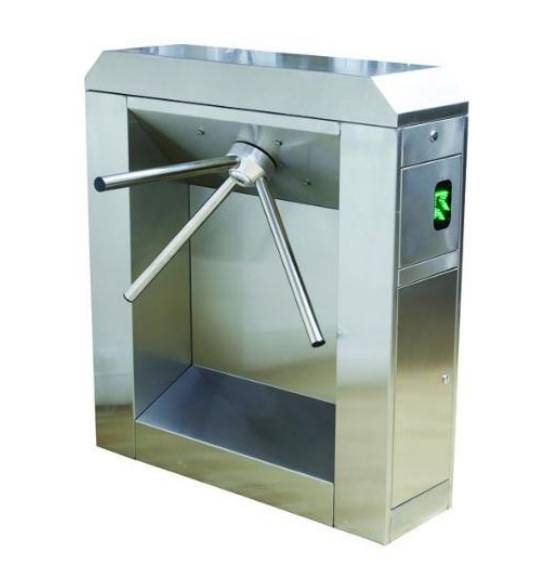

Half Height Tripod Turnstile
Verified by manufacturer 7 days ago
Half-height tripod turnstile with 304 stainless steel arms/ body, aluminium core. Heavier than standard tripod turnstiles, and includes a closed back.
Application

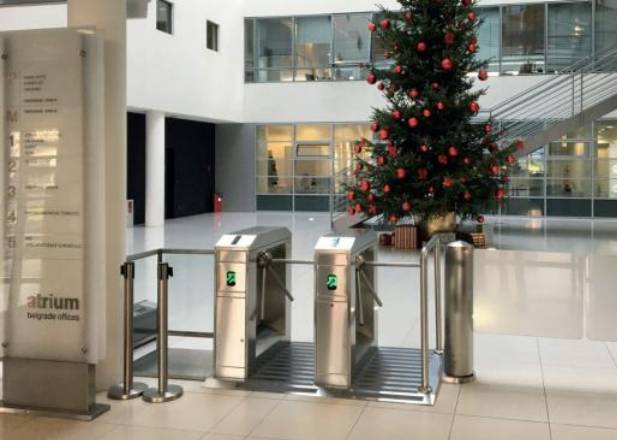

Suitable for various locations such as public transportation terminals, universities, banks, business centres, museums, sport centres and amusement parks.
Description
Half-height tripod turnstile.
Features and benefits:
- All arms and body are made of 304 stainless steel, with 316 option.
- Aluminium core.
- Heavier than standard tripod turnstiles.
- Includes a closed back.
- Suitable for coin passages due to the convenient space for coin mechanism and coin case.
- Wide range of accessories.
- The inner main mechanism is produced with special investment casting technology, making the system a lot more robust and long-lasting.
General information
Color | Silver |
Finish | Polished |
Material | Stainless steel |
Shape | Rectangle |
Length | 950 mm |
Width | 685 mm Guidance for specification option: Overall, including arms; housing unit is 280 mm wide. |
Height | 1050 mm |
Uniclass | |
CAWS | Q50/160 Turnstile |
SKU Code | EAUKHHT28 |
Specification data - Stainless steel half-height turnstiles
Classification data | |
Product reference | EAUKHHT28 Half Height Tripod Turnstile. |
Turnstile type | Tripod arms. |
Rotation | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Control unit | Integrated. |
Finish | Polished. |
Options | Drop arm. Remote control. Button unit. Biometric unit. Counter. Switch controls. Intercom access. Swipe card readers/ keyfobs etc. Traffic light/ management integration. Photocell/ opening sensors. UPS or other power backup. Coin/ token operation. Heater. Guidance for specification option: Increases lower operating temperature threshold from -20 to -30°C. Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Fixing | Guidance for specification option: Insert requirements to suit substrate. |
Power supply | 100–230 V a.c. 50/60 Hz. |
Power consumption | 30 W. |
Capacity | 30 people per minute. |
Passage width | 420–470 mm. |
Operating temperature | -20 to +70°C. Guidance for specification option: Lower temperature can be improved to -30°C with optional heater - see Options above. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Literature

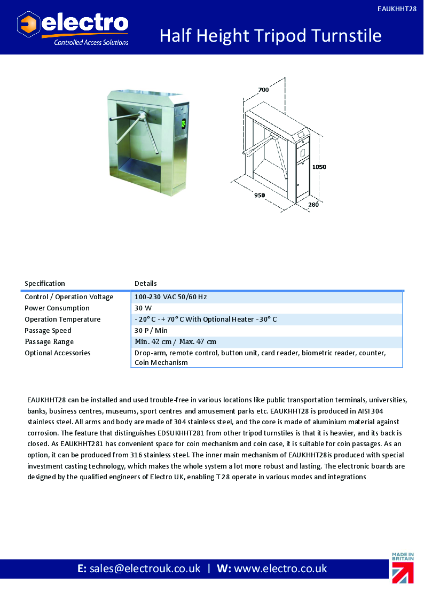

Half Height Tripod Turnstile - Data Sheet
