Half Height Steel Locker
Verified by manufacturer 17 days ago
Three Doors
Three Doors
BSI Kitemark
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Half height 896mm mild steel locker.
Application

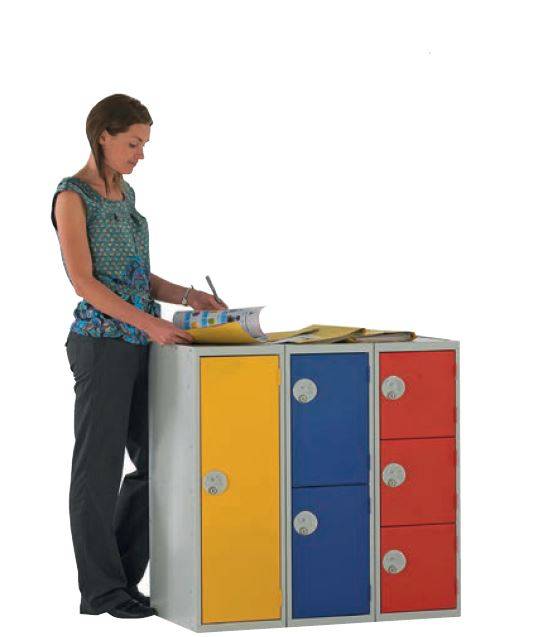

Suitable for use in primary schools; allowing easy access for young children. Can be fitted with worktops to create additional workspace. Can be installed in single sided runs or back-to-back.
Description
Half height steel lockers (896 mm) are available in a wide range of sizes, door configurations, locking options and colours. Single door locker has a fixed garment hanging rail (except 300 mm deep) with two coat hooks.
Versatile, hard-wearing and reliable, the lockers provide quality, choice and security as standard.
Features and benefits:
- Riveted and welded steel construction.
- Durable epoxy powder coated finish in five standard door colours (bespoke colours also available on request).
- Use colours for branding or to brighten up a classroom.
- Door stiffeners provide added strength and security.
- Supplied with Camlocks as standard, other locking options are available.
- Compartment clear opening = locker width - 50 mm.
- Lockers have been tested and conform to the requirements of the British Standard for Clothes Lockers BS 4680: 1996 ‘Standard Duty’.
- ActiveCoat antimicrobial technology is incorporated into all locker products at the time of manufacture, offering constant protection against a wide range of bacteria.
- Lockers supplied fully assembled; installation service available.
- Made in the UK.
General information
Color | Blue Red Green Yellow Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 300 mm 380 mm 450 mm 500 mm |
Width | 225 mm 300 mm 380 mm 450 mm |
Height | 896 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | N10/220 Lockers |
Specification data - Lockers
Performance requirements | To BS 4680, general-duty. |
Locker type | Half height. |
Dimensions | 896 x 225 x 450 mm.896 x 225 x 500 mm.896 x 300 x 300 mm.896 x 300 x 380 mm.896 x 300 x 450 mm.896 x 300 x 500 mm.896 x 380 x 380 mm.896 x 380 x 450 mm.896 x 380 x 500 mm.896 x 450 x 450 mm.896 x 450 x 500 mm.Manufacturer guidanceH x W x D. |
Material | Steel. |
Finish | Epoxy powder-coated. |
Colour | Light Grey (RAL 7035).Guidance for specification option: Standard range. Blue (RAL 5002).Guidance for specification option: Standard range. Red (RAL3020).Guidance for specification option: Standard range. Green (RAL 6001).Guidance for specification option: Standard range. Yellow (RAL1003).Guidance for specification option: Standard range. Electric Blue (BS 20 E 51).Guidance for specification option: Standard range. Dark Grey (BS 00A11).Guidance for specification option: Standard range. Burgundy (RAL 3003).Guidance for specification option: Standard range. Black (RAL 9005).Guidance for specification option: Standard range. Sunburst Yellow (BS 10 E 50).Guidance for specification option: Pastel range. Candy Pink (BS 02 C33).Guidance for specification option: Pastel range. Light Violet (BS 381 C 797).Guidance for specification option: Pastel range. Turquoise (RAL 6034).Guidance for specification option: Pastel range. White (RAL 9010).Guidance for specification option: Pastel range. Manufacturer guidanceDoor colours. |
Fittings | Not required.Sloping tops.Guidance for specification option: Essential in hygiene sensitive locations (such as hospitals and the food industry). The slope prevents items and litter being left on locker tops and makes cleaning easier. Sloping tops increase the overall height of the locker. Locker support frames.Guidance for specification option: Raise lockers off the floor, reducing impact damage and improving hygiene standards. Supplied with adjustable feet to allow for uneven floors. Inset rear legs to clear pipes and skirting. Standard height is 150 mm. Support frame with seat.Guidance for specification option: Seat units can be incorporated into the locker frame, as well as slatted seats to the front. They can include a mesh shelf for footwear. |
Body colour | Light Grey (RAL 7035). |
Locks | Standard camlock. Standard latch lock (padlock). Coin/token return. Coin/token retain lock. Tumbler combination lock. |
Doors | Three doors. |
Configuration | One nest. Two nest. Three nest. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BSI Kitemark
BS 4680: (1996) Level H
ISO 45001 Health and Safety Management
ISO 14001:2015
ISO 9001 Quality Management
ISO 9001:2015
ISO 45001 Health and Safety Management
The design, manufacture, installation and service of storage solutions. Anti-bacteria and Active coating is provided as standard on selected product ranges.
