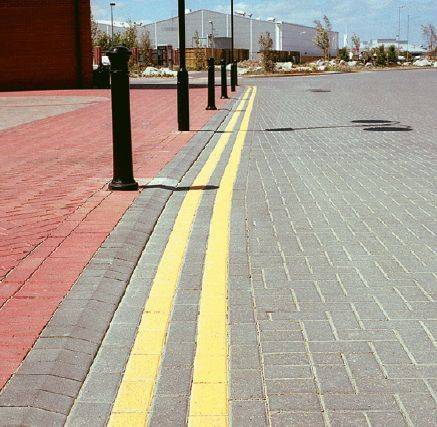

Half Battered Kerb
Verified by manufacturer 2 months ago
Standard precast concrete kerb, half battered profile.
Application
Suitable for use as a concrete kerb system.
Description
Hydraulically pressed precast concrete kerbs.
Features and benefits:
- Sleek, highly durable and precision manufactured concrete kerb system.
- Manufactured to the dimensions required in BS EN 1340:2003.
- Provides long-term performance.
General information
Color | Grey |
Finish | Textured Manufacturer guidanceIncludes pimple surface. |
Material | Precast concrete Manufacturer guidanceIncludes hydraulically pressed precast concrete. |
Shape | Other Manufacturer guidanceAvailable with a range of special shapes including straight, drop, double drop, transition, side offlet, quadrant and angles. |
Length | 915 mm |
Width | 125 mm |
Height | 255 mm |
Uniclass | |
CAWS | Q10/110 Proprietary precast concrete Q10/10 Precast concrete |
Specification data - Concrete kerbs
Standard | To BS EN 1340:2003. |
Physical properties | |
Colour | Natural grey. |
Finish | Textured.Guidance for specification option: Pimple surface. |
Profile | |
Designation | Half battered kerb. |
Dimensions | 125 x 150 x 915 mm (HB3).125 x 255 mm (HB2).125 x 150 mm (HB3).HB to BN (LH), 125 x 255/ 150 mm.Guidance for specification option: External radius only. HB to BN (RH), 125 x 255/ 150 mm. |
Radial units | |
Radial face | Radius, convex (external).Radius, concave (internal). |
Radius | 0.6 m.1 m.2 m.3 m.4 m.5 m.6 m.8 m.10 m.12 m. |
Weathering resistance | ≤1.0 kg/m² as a mean with no individual value >1.5 kg/m² (freeze thaw durability).Guidance for specification option: It should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures. |
Abrasion resistance | ≤23 mm (Wide Wheel Abrasion Test). |
Bending strength | Characteristic bending strength of 3.5 MPa with no individual result less than 2.8 MPa. |
Unpolished Slip Resistance Value (USRV) (minimum) | >45.Guidance for specification option: Mean unpolished skid resistance value (USRV): >45. |
