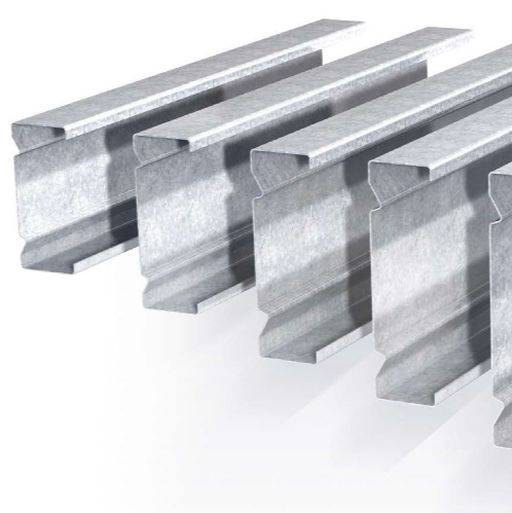

Hadley UltraBEAM

Application

Suitable for a wide range of applications including floor joists, mezzanine platforms, ceilings and side cladding.

Description

Beams produced from pre-galvanised structural grade, high strength 450 yield steel supported by HADLEY DesignSuite Pro Design Software which provides cost effective solutions to optimise the structural design.


Features and benefits:

  • Awarded SCI Assessed Status by the Steel Construction Institute, an internationally recognised expert body in the design and structural application cold roll-formed sections.
  • CE Marked in accordance with the Construction Products Regulations with respect to structural metallic construction members conforming to BS EN 1090-1.
  • All sections are considered in accordance with BS EN 1993-1-3. Sections have been tested and assessed by Hadley Group in association with the Steel Construction Institute and Wolverhampton University. Evaluation and computer analysis of these test results has been utilised to determine the published sectional properties in accordance with BS EN 1993-1-3.

General information

Color

Grey

Material

Steel

S450.

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

CAWS

G10/30 Cold-formed galvanized steel

G10/170 Cold-formed galvanized steel

Specification data - Cold-formed galvanized steel sections Enhanced data

Primary components

Cladding rails, floor joists.

Ancillary components

Cleats, sleeves, restraints and diagonal ties.

Material

-

Standard

To BS EN 10346.

Designation

S450+Z.

Thickness

1.2 mm.

Coating finish

N.

Surface quality

A.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library
