H Pedestal Range

Name: H Pedestal Range
Brand: Isaac H Grainger & Son Ltd
SKU: kkP8ADCgft3PGgMyxb6s74

Verified by manufacturer 3 months ago

H0S

Isaac H Grainger & Son Ltd

Third party certifications:

EPD
Certificate type
ISO 9001 Quality Management
Certificate type
ISO 14001 Environmental Management Systems
Certificate type

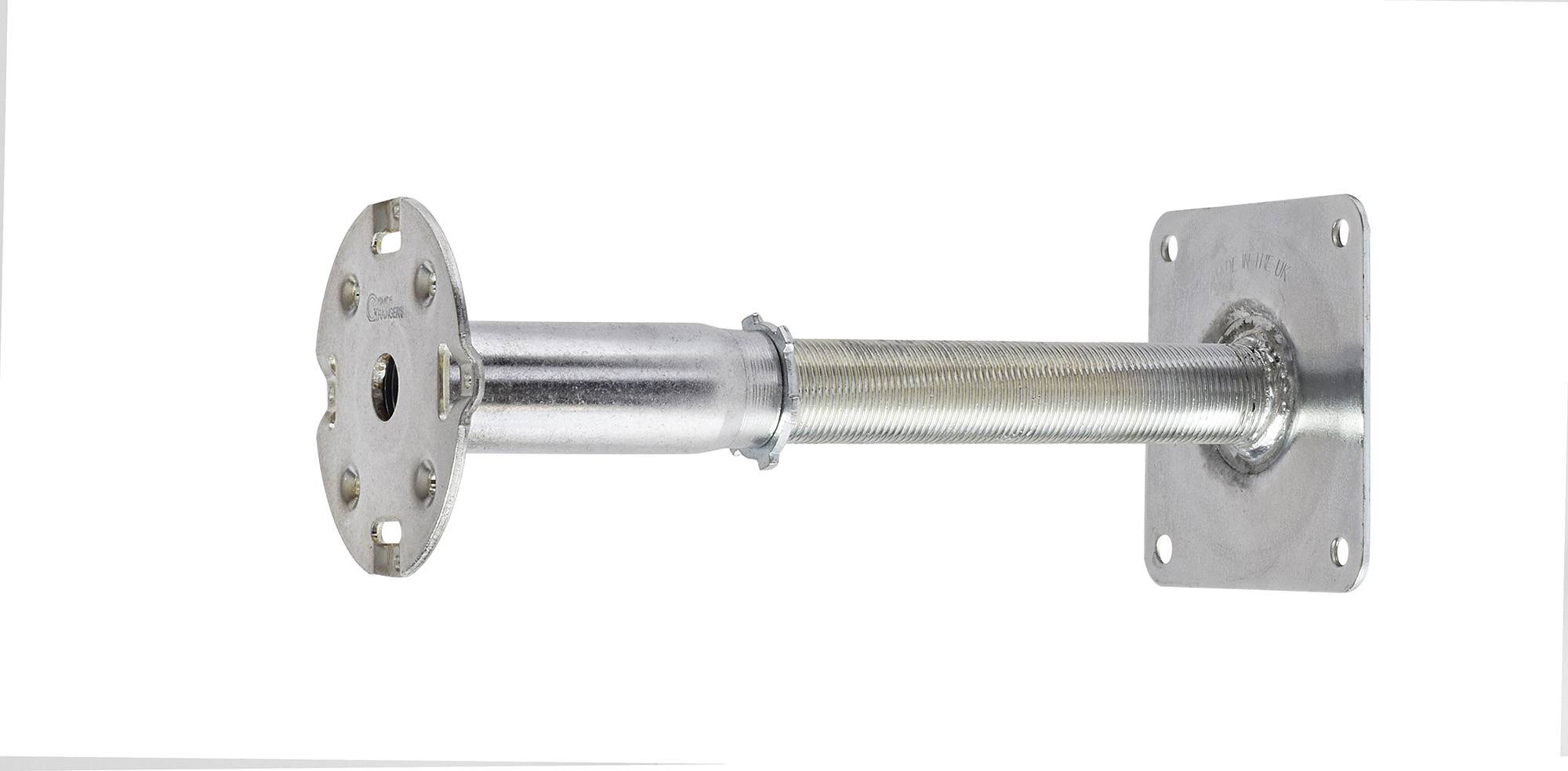

Mild steel pedestals.

Jump to:

+44 (0)1384 637777 Website

Application

Applications include:

Cat A office projects, basic projects, tenants to provide own facilities.
Projects requiring up to 705 mm FFH.
High tech buildings.
General offices.
Hotels.
Retail shops.
Leisure facilities and gyms.
Airports.
Casinos.
Night clubs.
Museums.
Listed buildings.
Light industrial applications.

Description

A range of mild steel pedestals designed to meet the requirements of PSA MOB PF2 PS/ PU and BS EN 12825:2001. Both medium and heavy grade have been tested in conjunction with a variety of panels.

They are manufactured in a standard range of heights from 26–675 mm with adjustments that provide a small overlap between heights. Bespoke height ranges are available, contact manufacturer for details.

Features and benefits:

Fully compatible with screw-down panels and stringer.
Adjustable height ranges.
Quick installation.
High strength and rigidity.
Special finishes including the bespoke Astec 3000 finish are available to give protection against zinc whiskers.

General information

Color	Silver
Finish	Zinc plated Other Guidance for specification option: Special finishes are available to give protection against zinc whiskers. Contact manufacturer for details.
Material	Steel
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	50 year

Uniclass	Pr_20_85_47_02 Access floor pedestalsPrimary
CAWS	K41/130 Raised access floor K41/315 Floor panels K41/130 Raised access floor K41/315 Floor panels

Specification data - Access floor pedestals

Class	To BS EN 12825. PSA MOB PF2 PS/SPU, medium and heavy-grade.
Pedestal type	Fixed head floor pedestals.
Materials	Zinc-plated steel.
Model	Adjustable.
Height	26–35 mm.
Limits on adjustability	±9 mm.
Locking	Required.

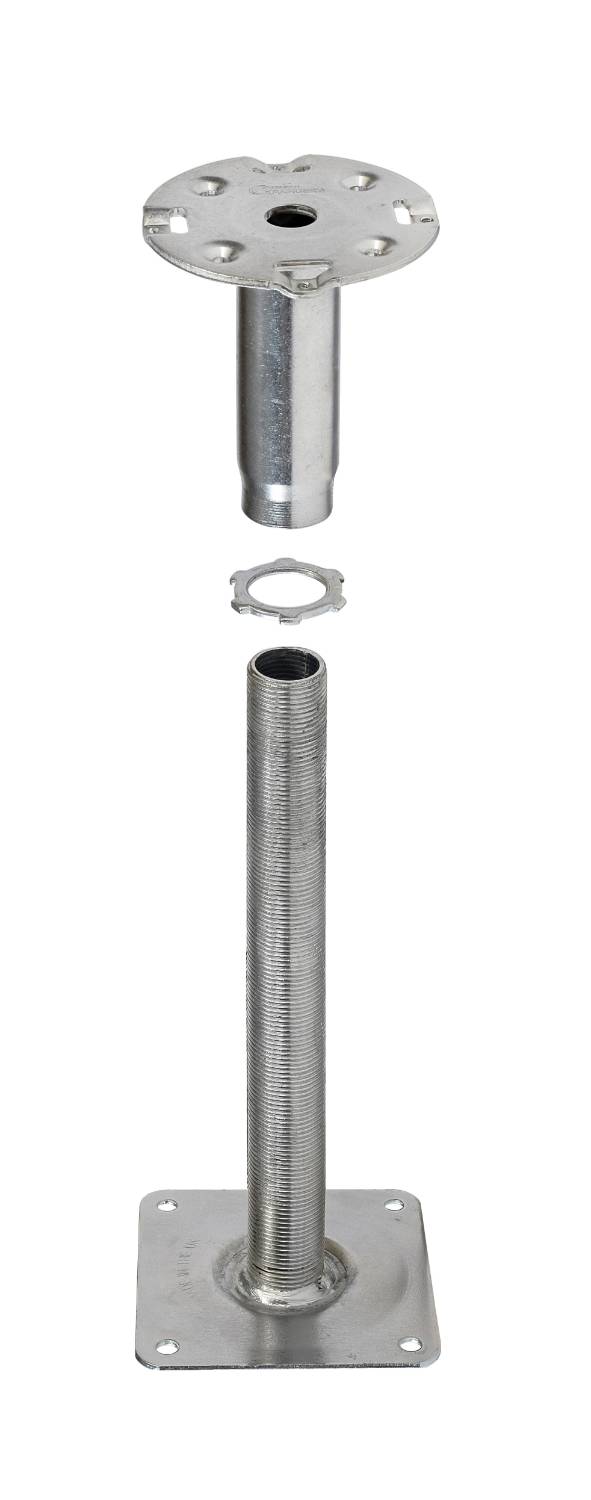

Base	Mild steel pressing 100 x 100 x 3 mm welded to 25.4 mm mild steel tube threaded throughout length.
Head	Mild steel disc 90 x 3 mm (diameter x thickness) welded to a 31.75 mm mm mild steel tube reduced one end to take the mating thread of the base. Guidance for specification option: Compatible with screw down panel.
Locknut	Mild steel pressing 3 mm thick tapped to mate with the base thread.
Applied finish	Zinc plated and clear passivated. Guidance for specification option: As standard. Astec 3000. Guidance for specification option: Zinc whisker free finish, particularly suitable for data centres. Nickel.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	4.78 kg CO₂ eq/unit
Recyclability	Fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
