A quick, versatile and economical solution for supporting pipework, duct, cable trays or any combination of these.

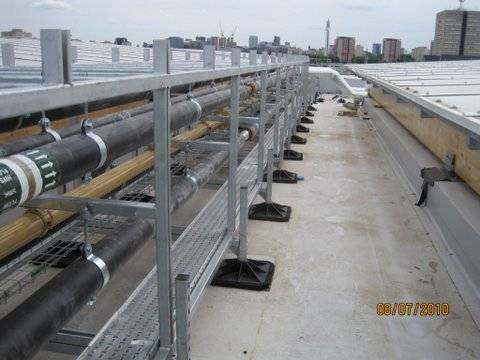

Big Foot H Frame:

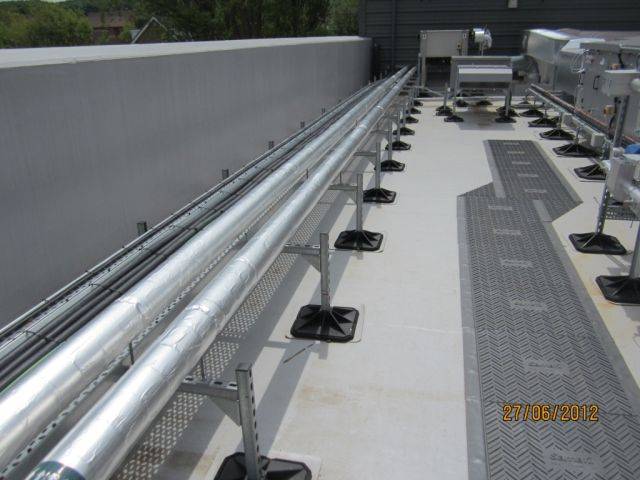

The H Frame Set is a quick, versatile and economical solution for supporting pipework, ductwork, cable trays or any combination of these. Fabrication of the framework on-site keeps the duct and pipe installation low cost and totally flexible., The feet adapt to accommodate 41 x 41 mm off-the-shelf strut (the 305mm foot can also accommodate 41 x 21mm strut). The majority of installations require 305 mm H-frames but where a greater load spread is required 450 H-frames are also available.
Big Foot Multi Foot:
The Multi Foot is designed to be a multi-purpose support for ductwork, pipework and cable trays or any combination of these.
Big Foot Fix-it Foot:
The six sizes of Fix-it Foot are a neat and tidy support solution. The feet have 40 x 20 mm aluminium channel recessed into the top face, allowing fixing of the services across the feet. Suitable for small pipework and cable tray runs.. The Fix-it Foot is made of durable recycled rubber, which offers built-in anti-vibration and makes it both economical and environmentally responsible.
Versatile application, quick and easy installation, excellent load distribution, supplied with removable rubber mats for optimum roof protection
Feet: Polyamide 6, Mats: Recycled rubber crumb, Brackets: Galvanized steel
Big Foot H Frame, small.
Big Foot H Frame, large.
Big Foot Multi Foot, small.
Big Foot Fix-it Foot, model 250.
Big Foot Fix-it Foot, model 400.
Big Foot Fix-it Foot, model 600.
Big Foot Fix-it Foot, model 1000.
Big Foot Fix-it Foot, model 250L.
Big Foot Fix-it Foot, model 400L.
Insert drawing reference number where applicable.
Multi Foot only.
Angled AV mats
2.5° and 5° AV mats are also available for sloped roofs.
Recommended for use on PVC membrane roof surfaces to prevent migration of plasticizers.
Fix-it Foot Mini Split Kit, B2984
Length: 600 mm.
Standard product features
- Plastic foot:
Nylon 6 B601L 30% glass fibre filled.
- Anti-vibration mat:
SBR-recycled rubber. Bound using a ratio of high quality moisture curing polyurethane pre-polymer. BS 7188 and BS 5696-3.
- Metal profile - fix it feet
Aluminium 40 x 20 mm profile compatible with strut fixings.
