H-BAU SINTON® HQW Stairway Landing Bearing
Verified by manufacturer 3 months ago
Acoustically isolated structural bearing system.
Application

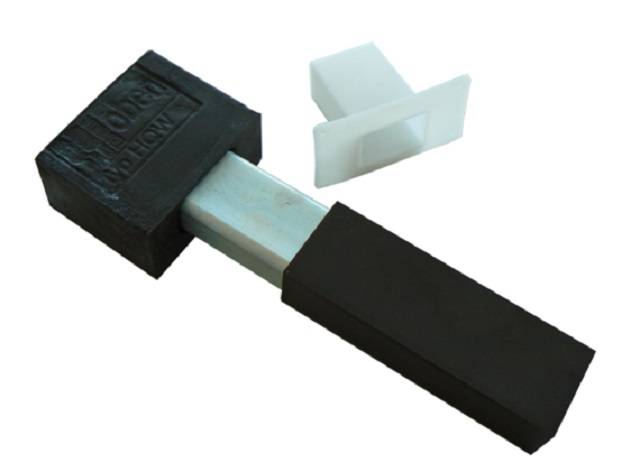

For concrete stair landings, flights of stairs and landings isolated from impact sound. SINTON HQW consists of a load-overlapping dowel, a vibration-damping wall bearing and a stair-side bearing sleeve with portal reinforcement.
Description
The H-BAU SINTON® HQW structural bearing system provides an acoustically isolated bearing system for supporting the landings of precast and in-situ concrete stairs. Supporting both positive and negative shear loads, the system provides up to 42 dB sound reduction from footfall and 90 minutes. fire protection. This system is designed to provide safety and increase comfort levels for building residents.
Features and benefits:
- Reliable load performance.
- Significant reduction of footfall vibration to the structure.
General information
Color | Grey |
Finish | Galvanized |
Material | Steel Polyurethane |
Shape | Other |
Length | 210 mm |
Width | 155 mm Manufacturer guidanceRefer to product catalogue for dimensional details |
Height | 275 mm Manufacturer guidanceRefer to product catalogue for dimensional details |
Uniclass | |
CAWS | E40/440 Load transfer systems |
Specification data - Acoustic and vibration resistant bearings
Material | Steel and polyurethane.Guidance for specification option:
|
Dimensions | |
Height | Manufacturer guidanceRefer to product catalogue for dimensional details and insert requirements. |
Width | Manufacturer guidanceRefer to product catalogue for dimensional details and insert requirements. |
Depth | Manufacturer guidanceRefer to product catalogue for dimensional details and insert requirements. |
Sound reduction | Up to 42 dB. Guidance for specification option: Sound reduction from footfall and 90 minutes fire protection. |
Joint width | Up to 120 mm. |
Fire resistance | 90 minutes. |
Sustainability data
Country of product manufacture | Germany |
