Description

A non-loadbearing, stud partition which provides very high levels of sound insulation. It can be used for space division within critical areas of offices, hotels, schools, hospitals, recreational complexes, shops and conference centres. In industrial units it can be used to isolate machinery noise. In refurbishment work on residential units it can be used as space saving, sound resisting partitions between dwellings.

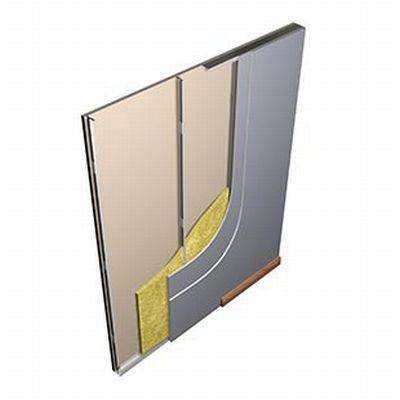

The system is based on alternate Gypframe 'I' Studs, which are staggered within the floor and ceiling channels, with acoustic insulation suspended in the cavity.

Not suitable for use in areas subjected to continuous damp or humid conditions. Specify MR (moisture resistant) boards in intermittent wet areas.

Performance:

  • Strength and robustness: Satisfies BS 5234 requirements up to Severe Duty.
  • Fire resistance: Up to 90 minutes.
  • Sound insulation, Rw: Up to 63 dB.

General information
Specification data - Gypsum board partition systems
Product Reference

GypWall STAGGERED

Studs -
Type

60 mm Gypframe 60 I 70 'I' studs with 70 mm Gypframe 70 S 50 'C' studs at abutments

92 mm Gypframe 92 I 90 'I' studs with 146 mm Gypframe 146 S 50 'C' studs at abutments

Centres

300 mm staggered

Head condition -
Type

Standard Gypframe 72 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Deep flange Gypframe 72 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 72 EDC 80 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Standard Gypframe 148 C 50 floor and ceiling channels, fixed to ___

Insulation

25 mm Isover APR 1200

50 mm Isover APR 1200

Linings -
Type

1 x 15 mm Gyproc SoundBloc to each side

2 x 12.5 mm Gyproc SoundBloc to each side

1 x 12.5 mm Gyproc SoundBloc and 1 x 15 mm Gyproc DuraLine to each side

2 x 15 mm Gyproc SoundBloc to each side

1 x 15 mm Gyproc SoundBloc and 1 x 15 mm Gyproc DuraLine to each side

1 x 15 mm Gyproc DuraLine to each side

Edge

Tapered edge

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Prime

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Other requirements

None

Access panels

SC1 Spacer clips for use with 60 mm studs and 72 mm channels

SC2 Spacer clips for use with 92 mm studs and 146 mm channels

Product Options

Deflection allowance:

Consult British Gypsum technical literature for recommendations.
