Description

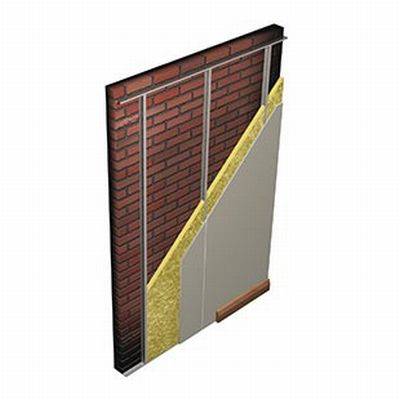

A lightweight, non-loadbearing, drylining system which is erected independently of the external wall construction. The system can be used in all types of buildings, but is particularly suitable for those with reinforced concrete or steel frames. The lining provides fire resistance to structural steel sections clad with lightweight metal sheeting, and can also be used in association with new or existing masonry walls to increase sound insulation and meet thermal performance requirements.

Performance:

  • BS 5234 Duty rating: Up to Severe.
  • Fire resistance: 30–90 minutes.
  • Sound insulation, Rw: 59–61 dB.
  • Thermal performance, U-value: 0.34–0.19 W/m²K.

General information
Specification data
Product Reference

GypLyner IWL

Studs -
Type

48 mm Gypframe 48 I 50 'I' studs

60 mm Gypframe 60 I 50 'I' studs

60 mm Gypframe 60 I 70 'I' studs

70 mm Gypframe 70 I 70 'I' studs

92 mm Gypframe 92 I 90 'I' studs

146 mm Gypframe 146 I 80 'I' studs

Head condition -
Type

Gypframe 50 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 62 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 C 70 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 50 DC 60 deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 62 DC 60 deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 DC 60 deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 DC 60 deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 50 EDC 70 extra deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 EDC 80 extra deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 EDC 70 extra deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 EDC 80 extra deep flange floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Insulation -
Type

None

Isover Steel Frame Infill Batts (SF2)

Thickness

Not applicable

50 mm

75 mm

100 mm

Linings

1 x 12.5 mm Gyproc WallBoard

2 x 12.5 mm Gyproc WallBoard

1 x 15 mm Gyproc WallBoard

2 x 15 mm Gyproc WallBoard

1 x 12.5 mm Gyproc FireLine

2 x 12.5 mm Gyproc FireLine

1 x 15 mm Gyproc FireLine

2 x 15 mm Gyproc FireLine

1 x 12.5 mm Gyproc SoundBloc

2 x 12.5 mm Gyproc SoundBloc

1 x 15 mm Gyproc SoundBloc

2 x 15 mm Gyproc SoundBloc

1 x 15 mm Gyproc DuraLine

2 x 15 mm Gyproc DuraLine

1 x 22 mm Gyproc ThermaLine BASIC

1 x 30 mm Gyproc ThermaLine BASIC

1 x 40 mm Gyproc ThermaLine BASIC

1 x 38 mm Gyproc ThermaLine PIR

1 x 53 mm Gyproc ThermaLine PIR

1 x 63 mm Gyproc ThermaLine PIR

1 x 78 mm Gyproc ThermaLine PIR

1 x 93 mm Gyproc ThermaLine PIR

1 x 27 mm Gyproc ThermaLine PLUS

1 x 35 mm Gyproc ThermaLine PLUS

1 x 40 mm Gyproc ThermaLine PLUS

1 x 48 mm Gyproc ThermaLine PLUS

1 x 30 mm Gyproc ThermaLine SUPER

1 x 40 mm Gyproc ThermaLine SUPER

1 x 50 mm Gyproc ThermaLine SUPER

1 x 60 mm Gyproc ThermaLine SUPER

1 x 70 mm Gyproc ThermaLine SUPER

1 x 80 mm Gyproc ThermaLine SUPER

1 x 90 mm Gyproc ThermaLine SUPER

Access Units

Not required

Access panels

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not generally suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Primer

For use in general circumstances.

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Gypframe 99 FC 50 Fixing Channels

Gypframe GA5 Internal Fixing Angle

Gypframe GA6 Splayed Angle

Rigid beads/ stops

Product Options

Unbraced height (maximum):

  • 48 I 50 'I' studs: 2400–2800 mm.
  • 60 I 50 'I' studs: 2400–3300 mm.
  • 60 I 70 'I' studs: 3000–3900 mm.
  • 70 I 70 'I' studs: 3600–4300 mm.
  • 92 I 90 'I' studs: 5100–6000 mm.
  • 146 I 80 'I' studs: 6900–7500 mm.

Maximum permissible height is affected by the number and thickness of lining boards: consult Briitsh Gypsum for details.

Deflection allowance, vapour control layer:

Consult British Gypsum for recommendations and details.
