Gymflex Studio Floor System - Elastic Floor System
Verified by manufacturer 10 months ago
Solid Beech, Rumba
Solid Beech, Rumba
‘Studio’ is an area elastic floor with excellent comfort and flexibility making it suitable for dance studios, gyms and multi-use spaces.
Application
Suitable for dance studios, gyms and multi-use spaces.
Suitable for underfloor heating.
Description
‘Studio’ is an area elastic floor with excellent comfort and flexibility making it suitable for dance studios, gyms and multi-use spaces.

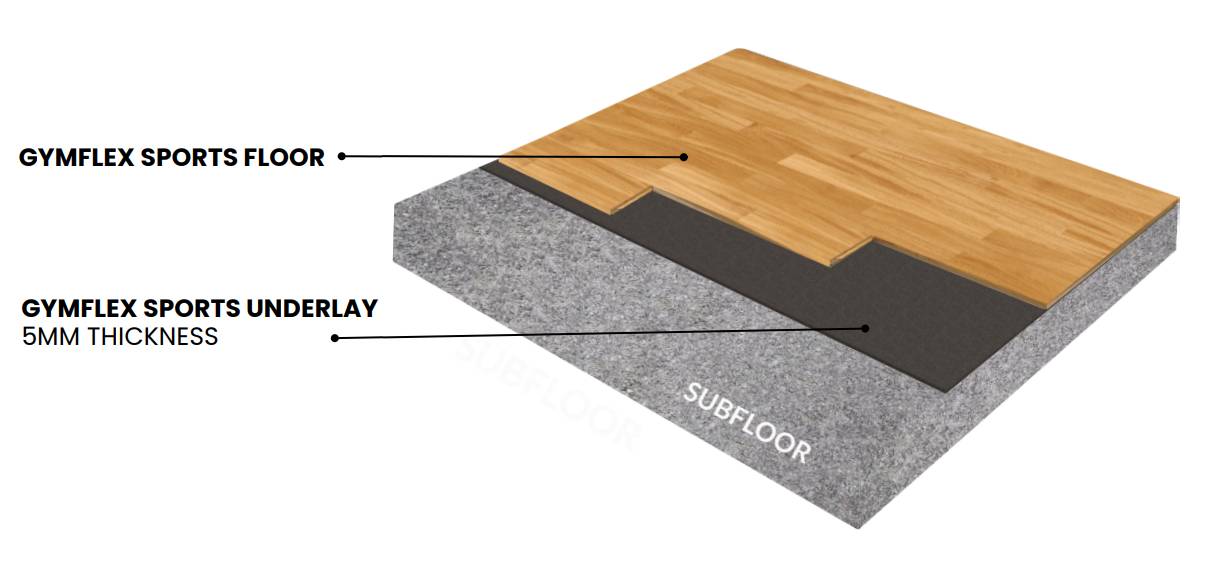

The 19 mm overall floor build-up makes it suitable for renovation projects and laying over suitable existing substrates, whilst the easy installation makes it quick and efficient to save any down time.
Features and benefits:
- Quick and easy installation.
- Great comfort and flexibility.
- Only 19 mm overall floor height.
- Available in a range of Beech finishes.
- Two-strip format.
- Board size 14 x 129 x 1830 mm.
- Pack sizes of eight boards = 1.89 m² (18.71 kg).
- 5 mm underlay.
- Suitable for underfloor heating.
- PEFC certified.
General information
Color | Brown Grey |
Finish | Smooth Matt |
Material | Wood |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | 19 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | K21/142 Battened wood sports floor |
Specification data - Wood-based rigid sheet floating floor systems
Classification data | |
System performance | Guidance for specification option: Insert requirements. |
Subfloor preparation | Guidance for specification option: Insert requirements or omit. |
Resilient layer | Gymflex 5 mm thick sports underlay. Manufacturer guidanceTo be rolled out perpendicular to flooring. |
Flooring | Gymflex sports floor, 14 mm thick. Guidance for specification option: Board stagger (installation): 732 mm. Manufacturer guidanceSelect colour, grade and finish below. |
Perimeter seals | Guidance for specification option: Insert requirements. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Board size | 1830 x 129 mm. Guidance for specification option: Standard pack of eight boards covers 1.89 m². |
AppearanceGrade | Clarity. Guidance for specification option: Has a natural appearance with smaller knots and less variation in colour, creating a more uniform floor. |
Colour/ Finish | Ultra matt lacquer. |
Overall thickness | 19 mm. |
Third-party certification | PEFC certified. |
Performance | To BS EN 14904. |
Load | Weight limit: 350 kg/m² (static load). |
Area | Maximum 350 m². |
Species | Beech. |
Sustainability data
Material | Wood |
Literature
Literature type
Gymflex Sports Flooring
5 mm New Era Underlay – Product Data Sheet
New Era Brochure
New Era Complete Range
New Era Guarantee
New Era System Build Ups
