Name: Guardrail Systems
Brand: ROSTEK UK Limited
SKU: 7NfSbB98iS5JtGkhH8ZuRE

Color

Silver

Other

Guidance for specification option:

RAL colour of choice available on request.

Finish

Galvanized

Material

Steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Ss_25_15_60_52 Metal modular barrier systemsPrimary

CAWS

Q41/130 Protective barriers

Q41/135 Proprietary protective barriers

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

L35/170 Guarding system

Standard

To EN ISO 14122-3.

Tubes

Carbon steel barrier rails.

Handrails

Carbon steel handrails.

Configuration

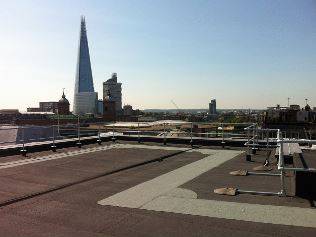

Freestanding guardrails.

Fixed guardrails.

Profiles

Straight.

Inclined.

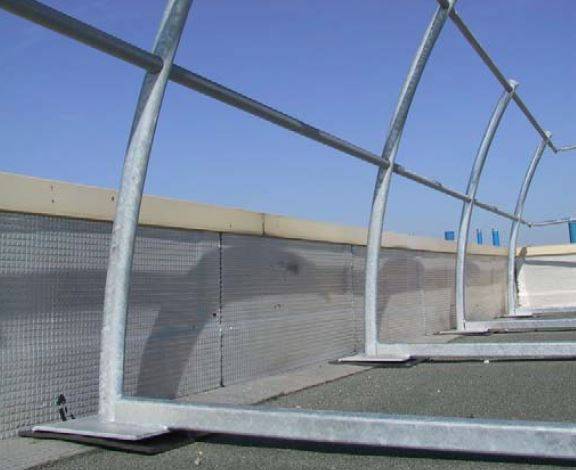

Curved.

Manufacturer guidance

Guardrail profiles.

Fixing

‘Z’ plate.

Guidance for specification option:

Installed under the up-stand cover making waterproofing easier. Only one drill hole is also required.
If fixing the plate to a concrete up-stand with no cracks, it is essential to use a mechanical plug. The minimal width of the up-stand should be no less then 150 mm.
If the plate is being fixed to a concrete up-stand with cracks, then a chemical plug must be used with a maximum diameter of 12 mm.

Plate fixings.

Guidance for specification option:

Regular plates are generally fixed to up-stands or to walkways. On a concrete up-stand with no cracks and should be installed at least 65 mm from the edge.
Should the concrete have cracks or a low density, it is essential to use a chemical plug with a maximum diameter of 12 mm.
On a concrete slab, the fixing is carried out using two mechanical plugs. The plate is positioned at least 50 mm from the up-stand or the waterproofing.

Wall side-mounted plates.

Guidance for specification option:

On a concrete parapet with no cracks, the guardrail can be fixed using two mechanical plugs. The plugs should be installed at a minimum of 65 mm from the edge.
A chemical plug can be used should the parapet have cracks or have a low density.

Surface finish

Galvanized.

RAL.

Guidance for specification option:

Available in a RAL colour of choice on special request. Consult manufacturer and insert requirements.

Contains Red List materials

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guardrail Systems

Application

Description

General information

Color

Finish

Material

Shape

Length

Width

Height

Warranty description

Uniclass

CAWS

Specification data - Metal modular barrier systems

Standard

To EN ISO 14122-3.

Tubes

Carbon steel barrier rails.

Handrails

Carbon steel handrails.

Configuration

Profiles

Manufacturer guidance

Fixing

Surface finish

Sustainability data

Contains Red List materials

Country of material origin

Country of product manufacture

Recyclability

Recycled content

Third party certifications

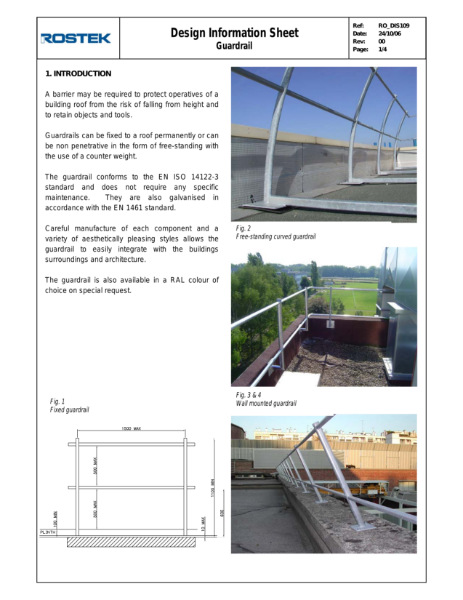

Literature

Color	Silver Other Guidance for specification option: RAL colour of choice available on request.
Finish	Galvanized
Material	Steel
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Two year

Configuration	Freestanding guardrails. Fixed guardrails.
Profiles	Straight. Inclined. Curved. Manufacturer guidance Guardrail profiles.
Fixing	‘Z’ plate. Guidance for specification option: Installed under the up-stand cover making waterproofing easier. Only one drill hole is also required. If fixing the plate to a concrete up-stand with no cracks, it is essential to use a mechanical plug. The minimal width of the up-stand should be no less then 150 mm. If the plate is being fixed to a concrete up-stand with cracks, then a chemical plug must be used with a maximum diameter of 12 mm. Plate fixings. Guidance for specification option: Regular plates are generally fixed to up-stands or to walkways. On a concrete up-stand with no cracks and should be installed at least 65 mm from the edge. Should the concrete have cracks or a low density, it is essential to use a chemical plug with a maximum diameter of 12 mm. On a concrete slab, the fixing is carried out using two mechanical plugs. The plate is positioned at least 50 mm from the up-stand or the waterproofing. Wall side-mounted plates. Guidance for specification option: On a concrete parapet with no cracks, the guardrail can be fixed using two mechanical plugs. The plugs should be installed at a minimum of 65 mm from the edge. A chemical plug can be used should the parapet have cracks or have a low density.
Surface finish	Galvanized. RAL. Guidance for specification option: Available in a RAL colour of choice on special request. Consult manufacturer and insert requirements.
