GT Dales Collection Cast Iron Tree Grille - Tree Protection Grille
Verified by manufacturer 4 months ago
GT Ribblesdale - 700 x 700 mm
GT Ribblesdale - 700 x 700 mm

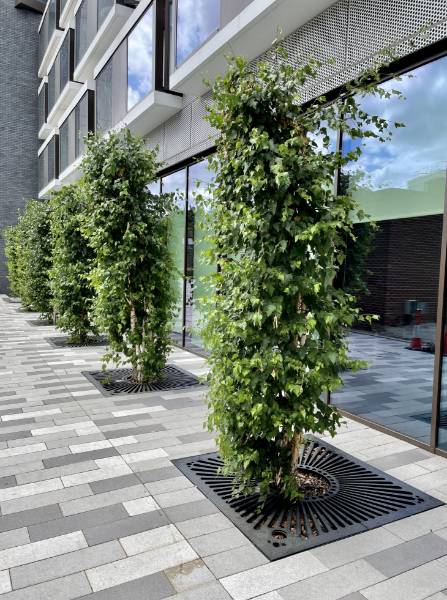

Cast iron tree grilles for protecting trees in urban environments.
Application
Outdoor tree protection and urban landscaping projects.
Description
The GT Dales Collection Tree Grilles are designed for tree planting and tree protection within urban landscaping projects. They provide protection for young trees from vehicles and pedestrians in hard landscaping. They are manufactured in the UK from 100% recycled materials, and are 100% recyclable.
Features and benefits:
- Long lifetime (up to 100 years).
- Durable and non-rusting.
- Bespoke versions available.
- Dales Collection tree guards also available.
General information
Color | Black Other Guidance for specification option: Any RAL/BS colour. |
Finish | Primed Guidance for specification option: One coat metal primer. Painted Guidance for specification option: One coat weathershield rust resistant paint. |
Material | Cast iron |
Shape | Circle Square |
Length | 600 mm 700 mm 800 mm 890 mm 900 mm |
Width | 700 mm 770 mm 800 mm 900 mm 1000 mm |
Uniclass | |
CAWS | Q31/566 Tree protection Q50/262 Tree grilles |
Specification data - Tree grilles
Material | Cast iron.Guidance for specification option: Engineering grade 250 cast iron. |
Finish | One coat metal primer and one coat weathershield rust resistant paint. |
Colour | Black.RAL/BS colour.Guidance for specification option: Insert requirements. |
Shape | Square. |
Size | 700 x 700 mm. |
Internal aperture | 230 mm O radius. |
Number of parts | 2. |
Accessories | None.Irrigation hole and cover.Guidance for specification option: Tree grilles with irrigation holes and covers in order to give access to the irrigation of the tree root system. Uplighter hole.Security clips.Guidance for specification option: Prevent unauthorized removal of the tree grille segments and to further increase the systems rigidity. |
Support frame | Type 1. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
