GS300M – 3 Channel Gas Detection Controller

GS300M – 3 Channel Gas Detection Controller

Duomo (UK) Ltd

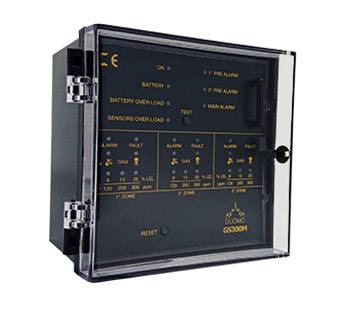

The GS300M is a 230V three channel and sensor wall or panel mounted gas detection controller.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for boiler plant rooms, industrial facilities, and car parks. For use with Duomo gas sensors.

Description

The GS300M is a 230V three channel and sensor wall or panel mounted gas detection controller. It can be connected to toxic and explosive sensors. An LED display indicates sensor status and faults. The GS300M is compatible with the complete range of Duomo gas sensors.

All Duomo products are manufactured to meet relevant European Normatives and proposals for explosive and toxic gases.

If you require a four sensor controller please see the BX444Mc Gas Controller.


Features and benefits:

  • Three channel protection.
  • 230 V AC supply.
  • Wall or panel mounted.
  • Positive safety option.
  • Detection of Toxic 0-300 ppm / Explosive Gas(es) 0-20% LEL.
  • 4-20 mA signal sensor input.
  • 3 alarm stages - 1st pre-alarm, 2nd pre-alarm and main alarm.
  • CE certified and approved to EN 61010-1, EN 50270, EN 50271, EN 45544-3, EN 60079-29-1.


General information

Shape

Square

Size

110 x 144 x 144 mm

WarrantyDescription

2 years, extendable to 3 years when registered at www.duomo.co.uk/product-warranty/

Uniclass 2015

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Standards

-

General requirements

Electrical equipment for measurement, control and laboratory use to BS EN 61010-1.

EN 50270.

EN 50271.

EN 45544-3.

Performance requirements

Detectors for flammable gasses to BS EN 60079-29-1.

Ingress protection (minimum)

To BS EN 60529, IP44.

Nominal voltage

230 V a.c.

Nominal frequency

50 Hz.

Number of channels

Three.

Battery backup capacity

2.2 Ah.

Mounting method

Suitable for wall.

Suitable for panel.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

GS300M Datasheet

GS300M Datasheet
