GS100M – 1 Channel Gas Detection Controller

GS100M – 1 Channel Gas Detection Controller

Duomo (UK) Ltd

The GS100M is a single channel gas detector controller for various gases - explosive and toxic.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for boiler plant rooms, industrial facilities, and car parks. For use with Duomo gas sensors.

Description

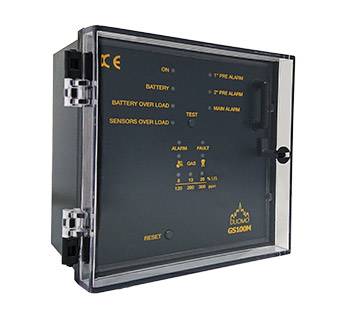

The GS100M is a single channel gas detector controller for various gases - explosive and toxic. A wall or panel mounted microprocessor based gas detector control unit. The GS100M is compatible with the complete range of Duomo gas sensors.

All Duomo products are manufactured to meet relevant European Normatives and proposals for explosive and toxic gases.

If you require a panel mounted controller please see the BX150 Gas Controller.


Features and benefits:

  • Single zone protection.
  • Positive safety option.
  • Detection of Toxic 0-300 ppm / Explosive 0-20% LEL.
  • 4 - 20 mA signal input from each sensor.
  • Three alarm stages - 1st pre-alarm, 2nd pre-alarm and main alarm.
  • IP44 protective rating.
  • Wall or panel mounted.
  • CE certified and approved to EN 61010-1 and EN 50270.


General information

Shape

Square

Size

110 x 144 x 144 mm

WarrantyDescription

2 years, extendable to 3 years when registered at www.duomo.co.uk/product-warranty/

Uniclass 2015

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Standards

-

General requirements

Electrical equipment for measurement, control and laboratory use to BS EN 61010-1.

EN 50270.

EN 45544-3.

EN 60079-29-1.

EN 50271.

Performance requirements

Detectors for flammable gasses to BS EN 60079-29-1.

Controls

-

Display the following information

Gas type.

Main alarm relay action.

Positive safety option.

Battery backup capacity

2.2 Ah.

Mounting method

Suitable for wall.

Suitable for panel.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

GS100M Datasheet

GS100M Datasheet
