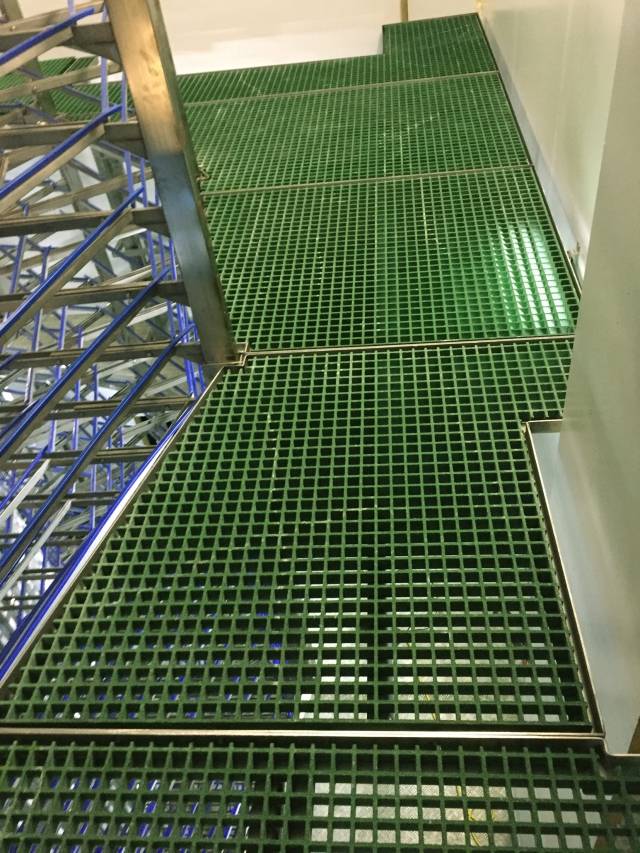

GRP Moulded Grating - Grating
Verified by manufacturer 2 months ago
BK513-38-5
BK513-38-5
Versatile glass reinforced plastic (GRP) grating, available in a wide range of variants.
Application
Suitable to use in platforms, walkways, landings, trenches (as covers), drains and manholes.
Description
Versatile glass reinforced plastic (GRP) grating, available in a wide range of variants.
Features and benefits:
- Low maintenance.
- Long life expectancy.
- Non-conductive to electricity.
- Provides an alternative to steel.
- Chemical, corrosion and weather resistant.
- Easy to install, cut to size or shaped as required.
- Anti-slip; provided with either a gritted or concave top surface.
- Lightweight, allowing for easy handling and fabrication on site.
- Fire retardant (conforms to ASTM-E84, ASTM-D635 and BS EN 13501).
- Other surface options are available of coarse corundum sanding or a smoother sanded surface with quartz, consult manufacturer for details.
General information
Color | Green Guidance for specification option: RAL 6010. Yellow Guidance for specification option: RAL 1003. Grey Guidance for specification option: Light grey, RAL 7035. Manufacturer guidanceOther RAL colours are possible. Consult manufacturer for details. |
Finish | Anti-slip |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/45 Ramps/ walkways L30/460 Walkways Q10/312 Footway gratings |
Product range |
Specification data - Glass fibre-reinforced plastics (GRP) moulded open mesh gratings
Colour | Light Grey (RAL 7035).Manufacturer guidanceStandard (across whole range). |
Size | |
Length x width | 1226 x 3664 mm.Manufacturer guidancePanel size. |
Depth | 13 mm. |
Type | Gritted. Guidance for specification option: Supplied with a gritted surface, achieving high anti-slip properties. |
Panel weight | 6.1 kg. |
Pitch | 38.1 x 38.1 mm. |
Mesh size | 31 x 31 mm. |
E-Modulus to EN ISO 178 | 14.500 N/mm². Manufacturer guidanceE-Modulus. Consult manufacturer for further technical data relating to each variant. |
Density | To EN ISO 178, 1.8 kg/dm³. Manufacturer guidanceConsult manufacturer for further technical data relating to each variant. |
Flexural strength | To EN ISO 178, 216 N/mm². Manufacturer guidanceConsult manufacturer for further technical data relating to each variant. |
BendingStrength | To EN ISO 178, 216 N/mm². Manufacturer guidanceMaximum bending stress. Consult manufacturer for further technical data relating to each variant. |
MomentOfInertiaYZ | 35.918 mm4. Guidance for specification option: Area moment of inertia. 1.633 mm³. Guidance for specification option: Sectional moment of inertia. Manufacturer guidanceConsult manufacturer for further technical data relating to each variant. |
Designation fire retardant class | To BS EN 13501. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
