GRP Handrail

Name: GRP Handrail
Brand: Lionweld Kennedy Group
SKU: 3kiZnbkZowbP31atNKk7eK

Verified by manufacturer 1 month ago

Lionweld Kennedy Group

Third party certifications:

Alcumus SafeContractor
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
BS EN 12206:2021
Certificate type

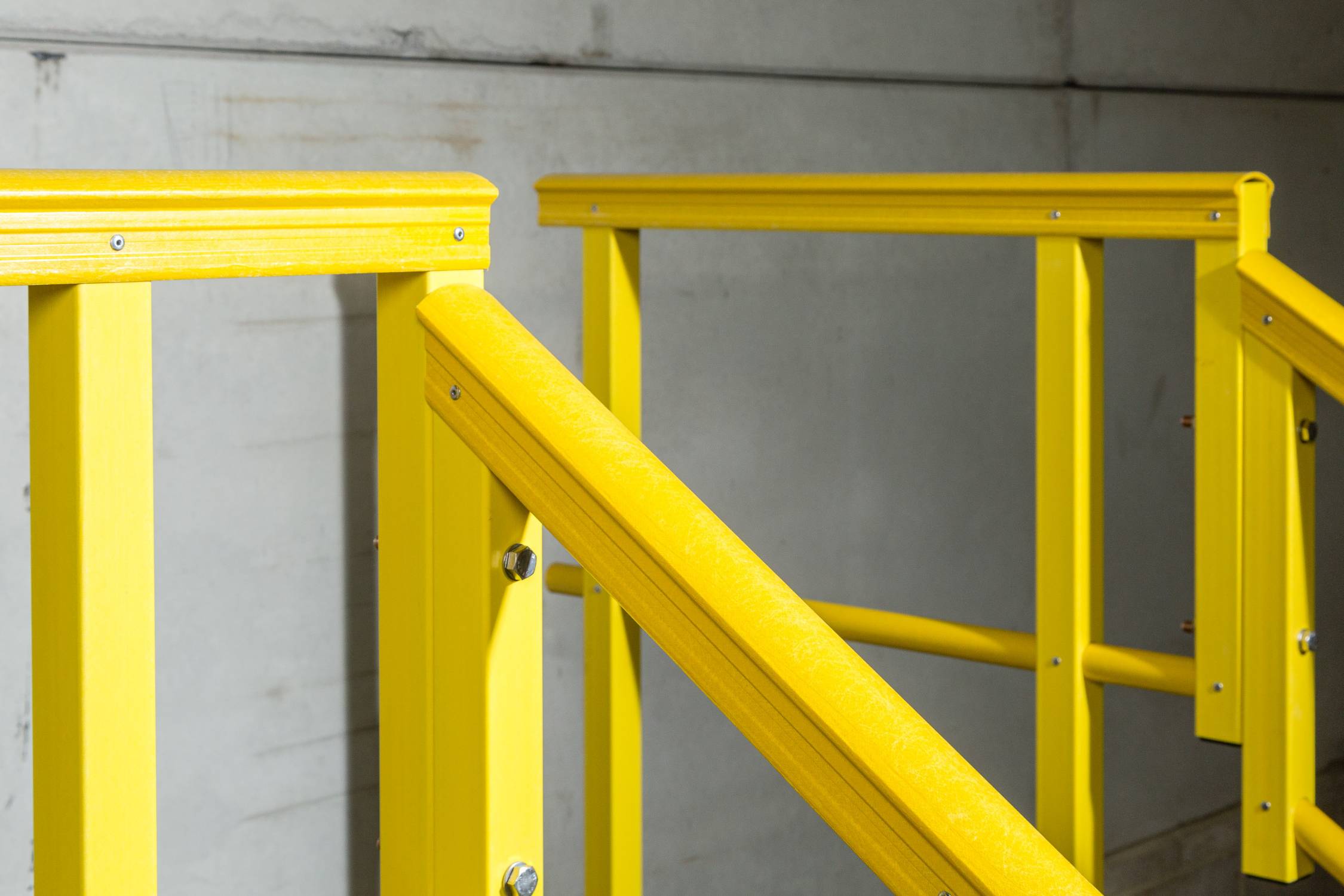

A resin pultruded GRP handrail profile/section.

Jump to:

BOS

+44 (0)1642 245151 Website

Application

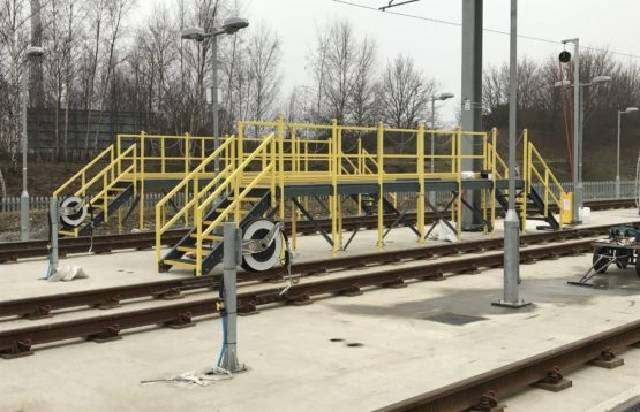

Suitable for use in light, medium and heavy-duty applications, including:

Stairs.
Walkways.
Ramps.
Safety barriers.

Description

Resin pultruded glass reinforced polyester (GRP) handrail.

Our handrailing systems have been engineered to provide a range of options to suit your requirements. Including everything from fully fabricated frames with ergonomic or box section top rails to key clamp style components for onsite assembly.

Features and benefits:

Lightweight - up to 75% lighter than steel.
Low maintenance.
Fabricated from Isophthalic Polyester, which is high strength, non-conductive, corrosion resistant and warm to the touch (therefore suitable for harsh environments).
Easy to install.
Can be fitted at various angles and supplied in different section sizes to meet specific project requirements.

General information

Color	Grey Guidance for specification option: Slate grey. Yellow
Material	Glass reinforced polyester Guidance for specification option: (GRP).
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_15_60_17 Composite post and rail barrier systemsPrimary
CAWS	L30/560 Proprietary balustrades L30/580 Proprietary handrails L30/70 Proprietary handrails Q41/135 Proprietary protective barriers Q41/240 Handrail systems

Product range	GRP / Handrails

Specification data - Composite post and rail barrier systems

Type	Light duty - 51 x 51 mm. Guidance for specification option: 51 x 51 mm box section posts and 38.1 mm tube rails (top and bottom). Medium duty - 51 x 51 mm. Guidance for specification option: 51 x 51 mm box section posts, 51 x 51 mm box section top rail and 38.1 mm tube bottom rail. Heavy duty - 51 x 51 mm. Guidance for specification option: 51 x 51 mm box section posts, and 51 x 51 mm box section top and bottom rail. Heavy duty - 76 x 76 mm. Guidance for specification option: 76 x 76 mm box section posts, and 76 x 76 mm box section top and bottom rail.
Colour	Grey. Guidance for specification option: Slate grey. Yellow.
FireRating	Class 1 (to ASTM E84). Guidance for specification option: Standard. When <25 mm. Class 1 (to BS 476, Part 7). Guidance for specification option: On request.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Glass reinforced polyester Guidance for specification option: (GRP).
Recyclability	Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
